Cooling Shroud

Removing the Cooling Shroud

CAUTION:
Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 Turn off the system, including any attached peripherals, and disconnect
the system from its electrical outlet.
2 Remove the system-board assembly. See "Removing a System-Board
Assembly" on page 61.
3 Push out one side of the cooling shroud in the direction of the arrow.
See Figure 3-7.
4 Gently lift the cooling shroud out of the system board assembly.
See Figure 3-7.

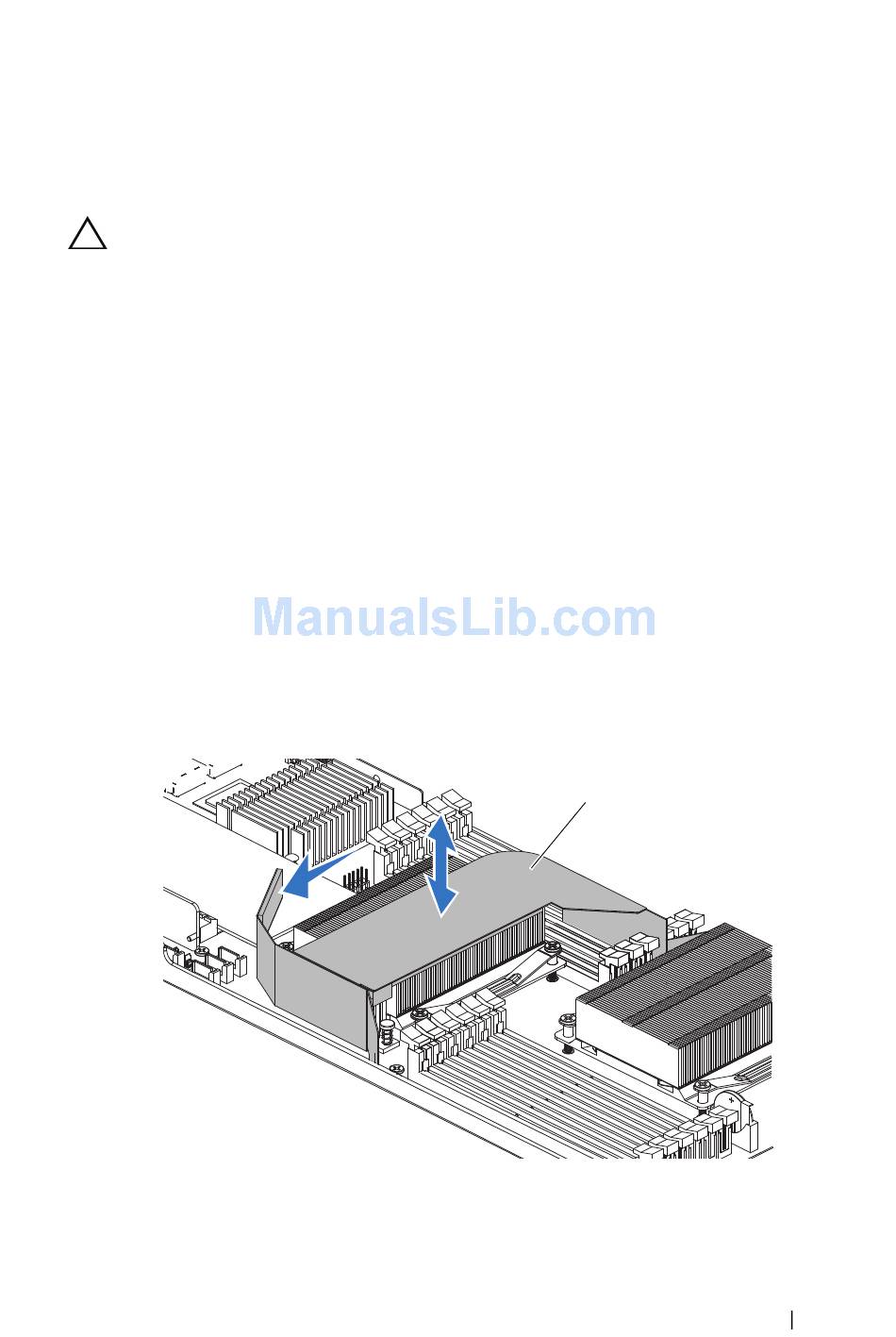

Figure 3-7. Removing and Installing the Cooling Shroud
1 cooling shroud
1
