Inside the System

CAUTION:
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
CAUTION:
ensure proper cooling.
NOTE:
The illustration in this section shows a system with 3.5-inch hard drives.

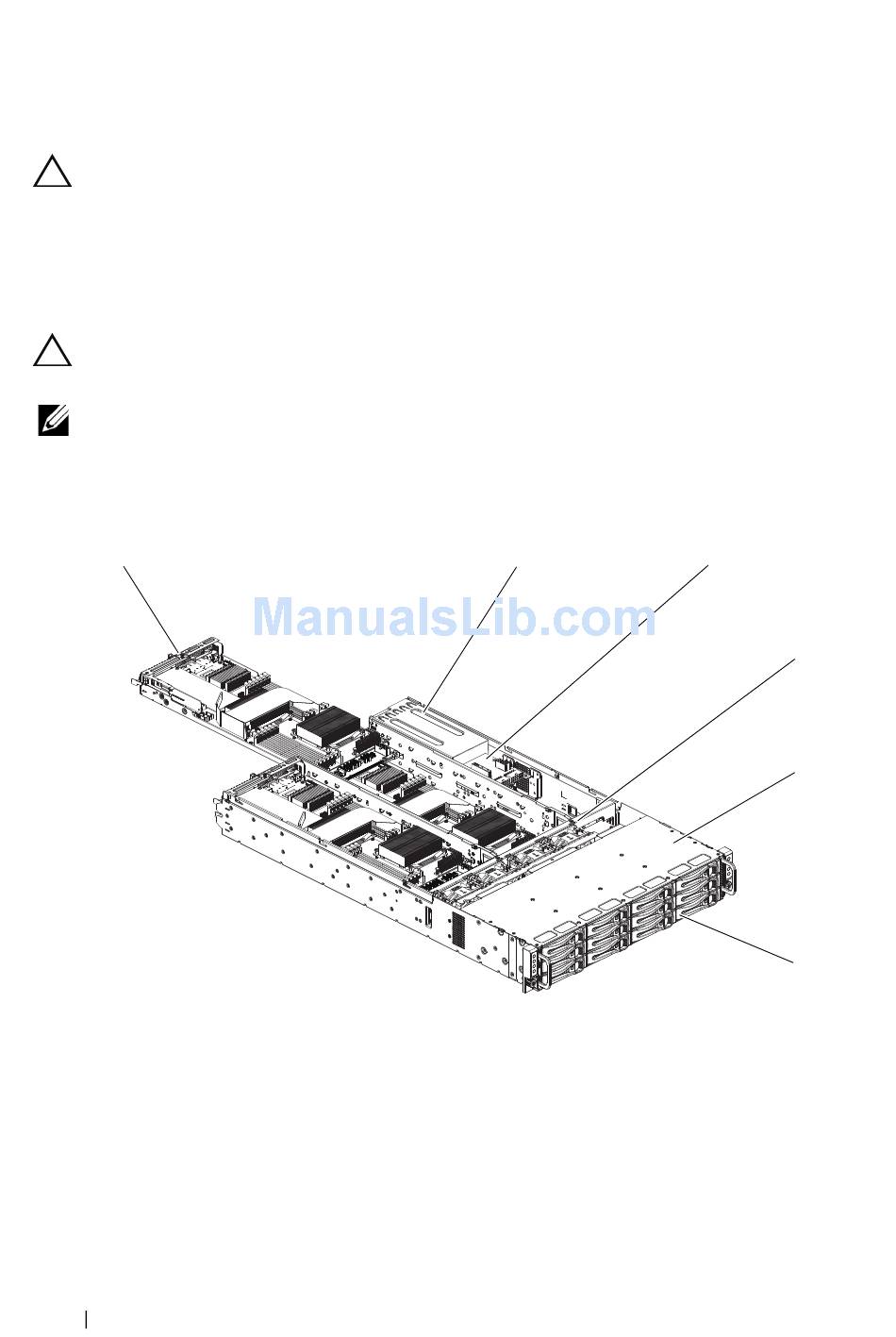

Figure 3-1. Inside the System
1
1 system board assembly (4)
3 power distribution board (2)
5 hard-drive bay
54
Installing System Components
Many repairs may only be done by a certified service technician.
This system must be operated with the system cover installed to
2
2 power supply (2)
4 cooling fan (4)
6 hard drive (12)
3
4
5
6
