Jumpers and Connectors

System Board Connectors

This section provides specific information about the system jumpers. It also
provides some basic information on jumpers and switches and describes the
connectors on the various boards in the system.

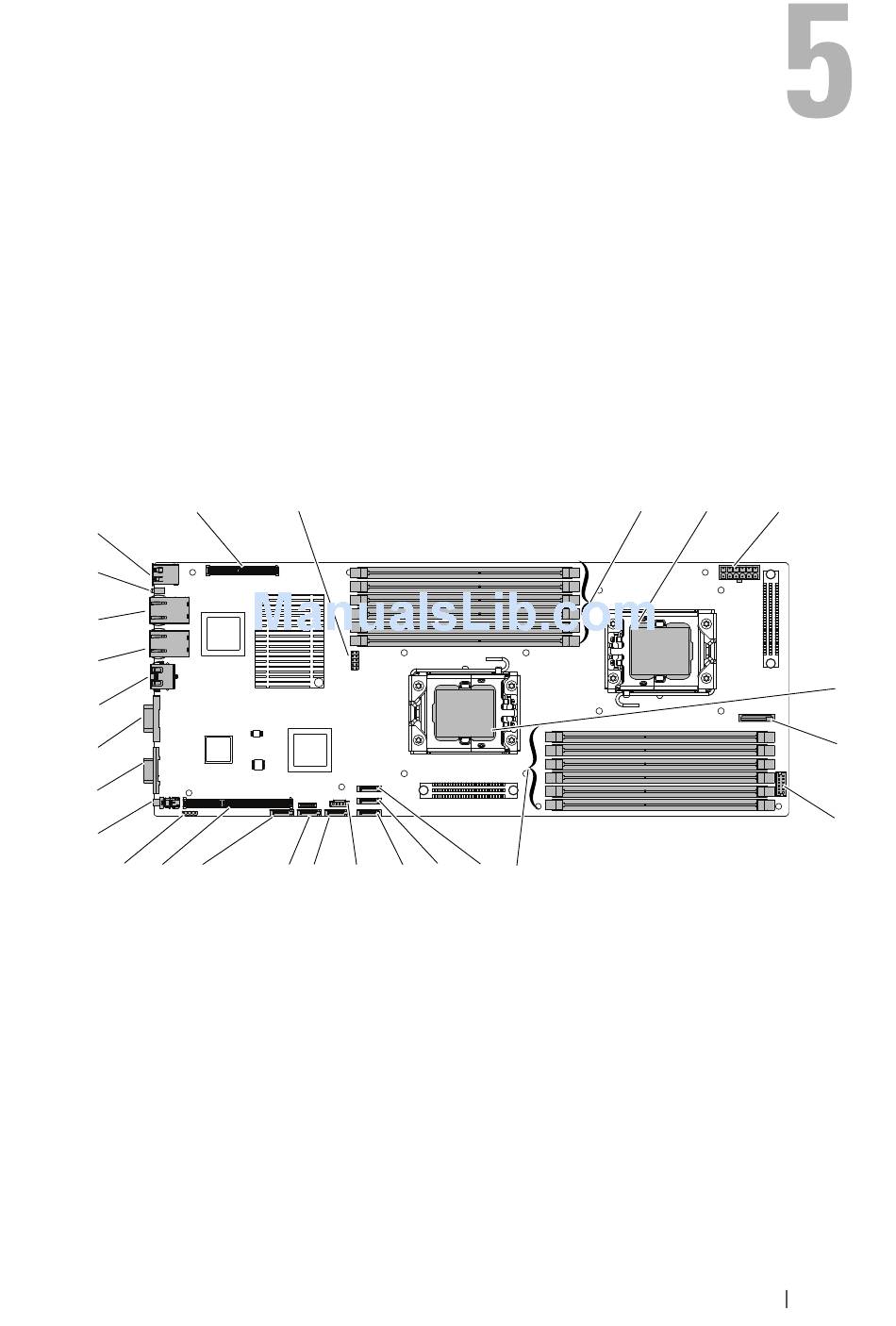

Figure 5-1. System Board Connectors
1
26
25
24
23
22
21
20
19
18 17 16
1 PCI-E mezzanine card connector
3 DIMM sockets for processor 1
5 main power connector
7 system battery
9 DIMM sockets for processor 0
11 onboard SATA2 connector 2
13 SGPIO connector
15 onboard SATA2 connector 5
2
12
15 14 13 11 10
3
9
2 system configuration jumper
4 processor 0
6 processor 1
8 front panel connector
10 onboard SATA2 connector 1
12 onboard SATA2 connector 3
14 onboard SATA2 connector 4
16 onboard SATA2 connector 6
Jumpers and Connectors
4
5
6
7
8
