Epson ET-2840 - All-In-Ones Printer Quick Installation Guide

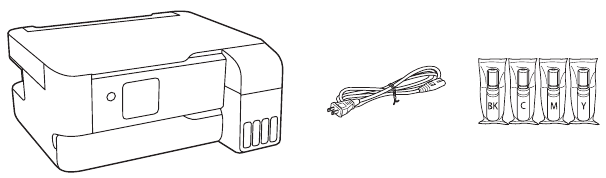

Unpack


Before using this product, make sure you read these instructions and the safety instructions in the online User's Guide.

Note: Do not open the ink bottles until you are ready to fill the ink tanks. The ink bottles are vacuum packed to maintain reliability.

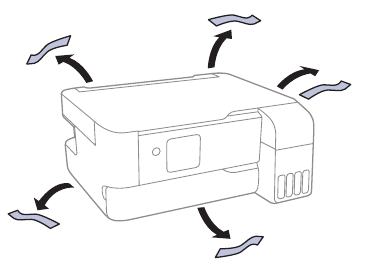

  1. Remove all protective materials from the product.
    Unpack - Step 1

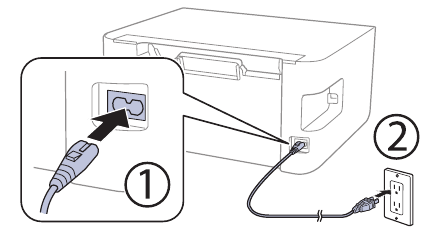

  2. Connect the power cord to the back of the product and to an electrical outlet.
    Unpack - Step 2

    Do not connect to your computer yet.

Choose a setup method

The Epson Smart Panel® app can help you set up your printer through an interactive, step-by-step process using your smartphone or tablet.


To use your mobile device for setup, continue to step 1.

OR


If you do not want to use a mobile device for setup, skip to the "Fill ink tanks" section.

  1. Download the Epson Smart Panel app from your device's app store. Do not launch the app yet.

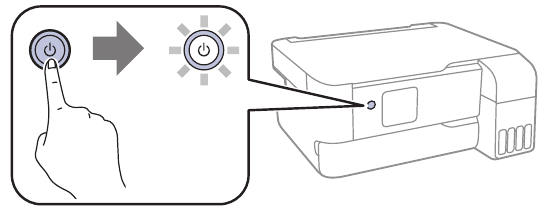

  2. Press the power button to turn on the product.
    Choose a setup method
    Note: Do not connect your product to your computer yet.
  3. Launch the app and follow its instructions to set up your product. If necessary, tap the + icon on the top right corner of the app's home screen, tap Start setting up, and follow the instructions to set up your product.
    For information on connecting your product to a computer, using voice-activated printing, solving problems, or for details on reaching Epson support, see the sections on the back of this sheet.

Fill ink tanks


Keep the ink bottles out of the reach of children and do not drink the ink.


This product requires careful handling of ink. If ink spills, wipe it off immediately with a damp towel to avoid permanent stains.

If ink gets on your clothes or belongings, it may not come off.

Note:

  • Epson cannot guarantee the quality or reliability of third-party ink.
  • Use the ink bottles included with the printer to set up the product. Part of the ink will be used to charge the print head. These bottles may print fewer pages compared with replacement ink bottles.
  • Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.

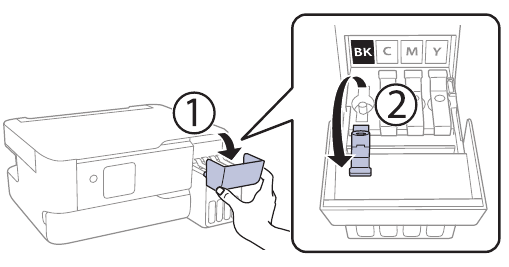

  1. Open the ink tank cover, then open the cap for the black (BK) ink tank.
    Fill ink tanks - Step 1
    Note: Refer to the color-coded sticker on the ink tank unit to identify the color of each tank.

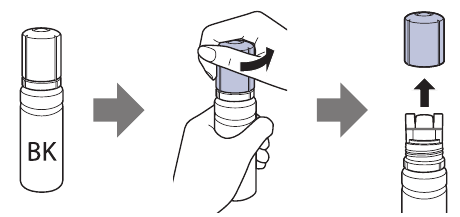

  2. Unpack the black (BK) ink bottle. Hold the ink bottle upright and slowly turn the bottle cap to remove it.
    Fill ink tanks - Step 2

    Do not shake or squeeze the ink bottle. Do not touch the top of the ink bottle after its cap is removed.

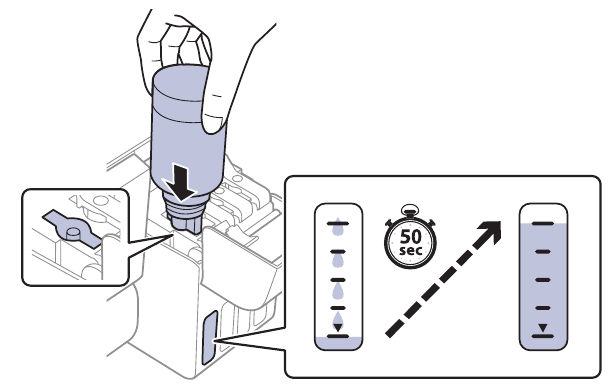

  3. Insert the ink bottle into the filling port.
    Fill ink tanks - Step 3
    Note: Do not force the bottle into position; each bottle is keyed for each color.

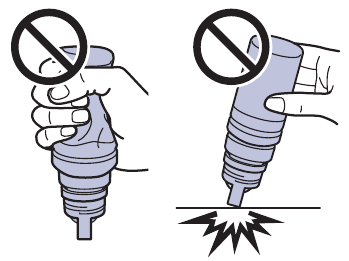

  4. Wait for the ink to fill the tank. Do not squeeze the bottle or allow it to contact any other surface.
    Fill ink tanks - Step 4
    Note: Ink flows into the tank and stops automatically when the ink tank is filled to the upper line. If ink does not flow from the bottle, lift and reinsert the bottle.

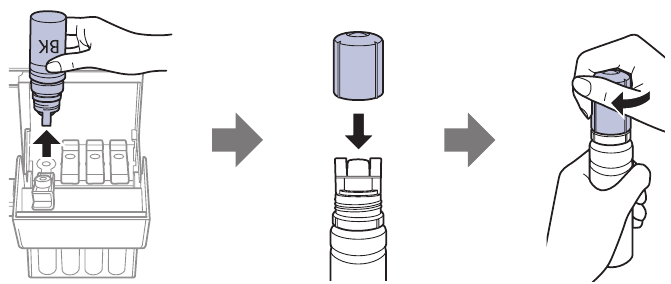

  5. When the ink tank is full, remove the ink bottle and securely close it with the bottle cap. If any ink remains in the bottle, close the bottle and store it for later use.
    Fill ink tanks - Step 5
    Note: Do not leave the ink bottle inserted; otherwise the bottle may be damaged or ink may leak.

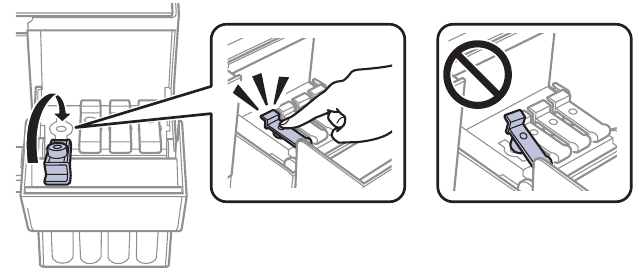

  6. Securely close the black ink tank cap.
    Fill ink tanks - Step 6

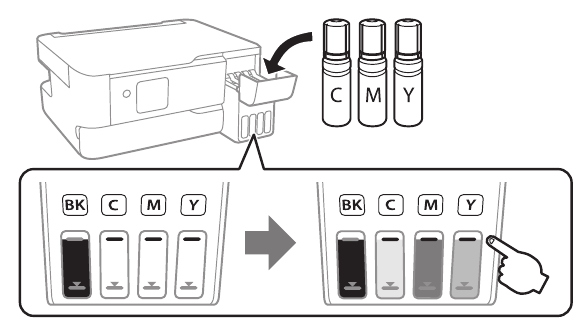

  7. Repeat the previous steps for the other colors.
    Fill ink tanks - Step 7

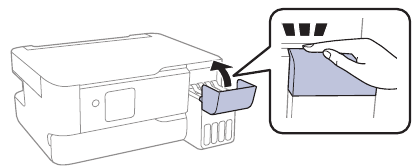

  8. Close the ink tank cover.
    Fill ink tanks - Step 8

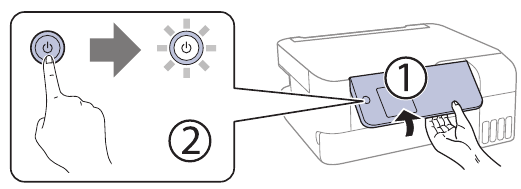

  9. Raise the control panel, then press the power button to turn on the product. The power light flashes.
    Fill ink tanks - Step 9
    Note: If an error code appears, turn off the product and check that no protective material has been left inside the product.
  10. Select your language.
    Note: You can change this setting later using the product's control panel. For more information, see the online User's Guide.
  11. When an Epson Smart Panel setup message appears on the LCD screen, select the option to continue setup.

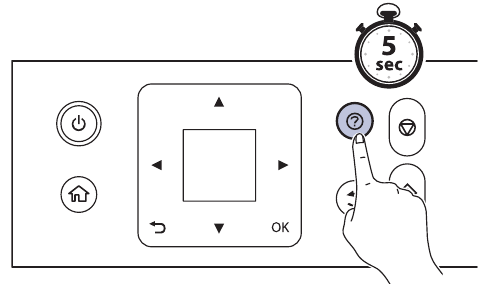

  12. When the message to see the Start Here sheet appears on the LCD screen, press and hold the help button for 5 seconds.
    Fill ink tanks - Step 10
  13. Press the start button to start ink charging. Ink charging takes about 11 minutes.
    Note: When the power light stops flashing, ink charging is complete. Once initial setup of the printer is complete, you can top off the ink tanks with any remaining ink. See the online User's Guide for instructions.

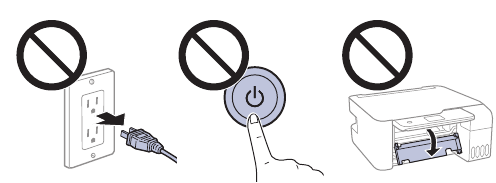

    Do not unplug or turn off the product, or open the inner cover while the product is charging or you'll waste ink.
    Fill ink tanks - Step 11
    Note: After some ink is used for charging, the rest is available for printing.
  14. Press the OK button to proceed with initial setup.
  15. Follow the on-screen instructions to adjust the print quality of your product.

Note:

  1. You need to load paper before you can adjust the print quality. See "Load paper" on this sheet for details.
  2. Select Adjust Later if you want to adjust the print quality later. For more information, see the online User's Guide.


After setup, periodically inspect the ink levels to ensure they do not fall below the lowest lines on the tanks. Prolonged use when ink is below the lowest line could damage the product. See the online User's Guide for refilling instructions.

Load paper

See the online User's Guide for information about loading capacity, available paper types and sizes, and loading envelopes.

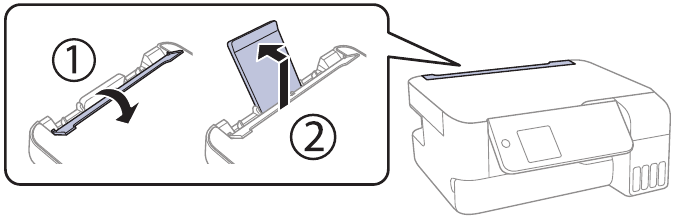

  1. Make sure the product is done charging the ink. Then flip the feeder guard forward, raise the paper support, and tilt it backwards slightly.
    Load paper - Step 1

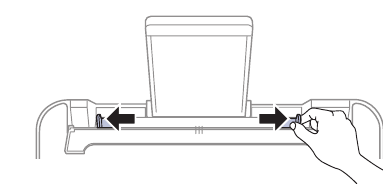

  2. Slide the edge guides all the way out.
    Load paper - Step 2

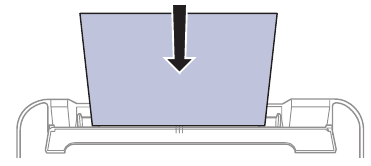

  3. Load paper, glossy or printable side up and short edge first, in the middle of the rear paper feeder.
    Load paper - Step 3
    Note: Make sure the paper is under the mark inside the edge guides.

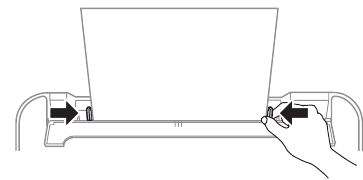

  4. Slide the edge guides against the paper, but not too tightly.
    Load paper - Step 4

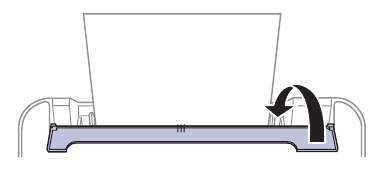

  5. Close the feeder guard.
    Load paper - Step 5

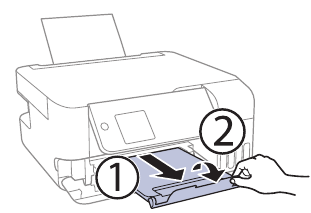

  6. Open the front cover.
  7. Pull out the output tray and raise the paper stopper.
    Load paper - Step 6
  8. Select the paper settings on the product's control panel.

Install software

Note:

  1. Make sure the product is NOT CONNECTED to your computer.
    Windows®: If you see a Found New Hardware screen, click Cancel and disconnect the USB cable.
  2. Download and run your product's software package. For the latest software, visit:
    http://epson.com/support/et2840 (U.S.) or http://epson.ca/support/et2840 (Canada).
  3. Follow the instructions on the computer screen to run the setup program.
  4. When you see the Select Your Connection screen, select one of the following and follow the on-screen instructions:
  • Wireless connection
    In most cases, the software installer automatically attempts to set up your wireless connection. If setup is unsuccessful, you may need to enter your network name (SSID) and password
  • Direct USB connection
    Make sure you have a USB cable (not included).

Mobile and voice-activated printing

  • Print directly from your Android™ (v4.4 or later) device*. Simply connect your printer and device to the same network and tap the menu icon to select the print option.
  • Turn your mobile device into an intuitive, easy-to-use printing and scanning control center with Epson Smart Panel. Download the app from your mobile device's app store.
  • Print remotely with Epson Connect™. See your online User's Guide for instructions or learn more at http://epson.com/connect (U.S.) or http://epson.ca/connect (Canada).
  • Use voice-activated assistants to print a variety of creative and everyday items from your Epson® product. Simply add your product to an Epson Connect account, then link the account to a voice-activated assistant. See http://epson.com/voice (U.S.) or http://epson.ca/voice (Canada).

* May require the Epson Print Enabler or Mopria Print Service app from Google Play™.

Any problems

Network setup was unsuccessful.

  • Make sure you select the right network name (SSID).
  • Restart your router (turn it off and then on), then try to connect to it again.
  • If you see a firewall alert message, click Unblock or Allow to let setup continue.
  • If your network has security enabled, make sure you enter your network password (WEP key or WPA passphrase) correctly. Be sure to enter your password in the correct case.
  • Print a network connection report to identify network problems and solutions. See your online User's Guide for instructions.

There are lines or incorrect colors in my printouts.
Run a nozzle check to see if there are any gaps in the printout. Then clean the printhead, if necessary. See the online User's Guide for more information.

The product's screen is dark.
Make sure your product is turned on and press any button to wake it from sleep mode.

Setup is unable to find my product after connecting it with a USB cable.
Make sure your product is on and the USB cable is securely connected.

Any questions

User's Guide

Windows: Click the icon on your desktop or Apps screen to access the online User's Guide.
Mac: Click the icon in Applications/Epson Software/Guide to access the online User's Guide.
If you don't have a User's Guide icon, go to the Epson website, as described in "Technical support."

Technical support

Visit http://epson.com/support/et2840 (U.S.) or http://epson.ca/support/et2840 (Canada) to download drivers, view videos and manuals, get FAQs, or contact Epson.

Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 7 am to 4 pm, Pacific Time, Monday through Friday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Recycling

Epson offers a recycling program for end-of-life hardware and ink bottles. Please go to http://epson.com/recycle (U.S.) or http://epson.ca/recycle (Canada) for information on how to return your products for proper disposal.

Need paper and ink?

Ensure brilliant results with Epson specialty and plain papers, engineered specifically for Epson printers. Find Epson papers and Epson Genuine Ink at http://epson.com (U.S. sales) or http://epson.ca (Canadian sales) and at Epson authorized resellers. Call 800-GO-EPSON (800-463-7766).

ET-2840 replacement inks

Color Part number
Black T522120-S
Cyan T522220-S
Magenta T522320-S
Yellow T522420-S
