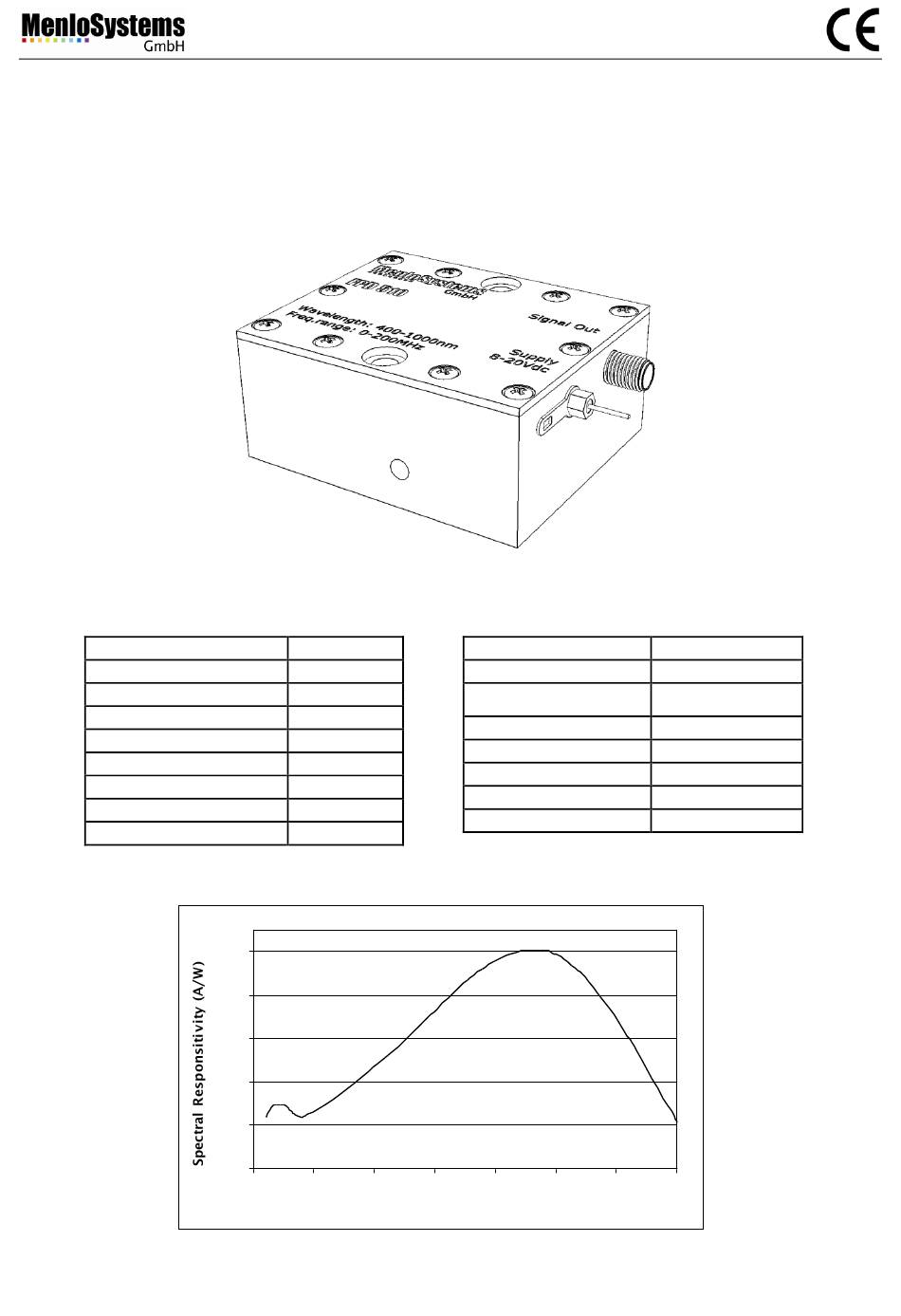

Menlo Systems FPD510-FV Operating Manual

Product Specifications
Optical Input
Supply Voltage
Current Consumption
Max. Incident Power
Operating Temperature
Spectral Range
Detector Diameter
Frequency Range
3dB-Bandwidth
Am Klopferspitz 19, 82152 Martinsried, Germany
Phone +49 89 189166-0, Fax +49 89 189166-11
http://www.menlosystems.de
FPD510-FV Operating Manual
Freespace High Sensitivity PIN Photo Detector Unit
Freespace
+8 to +15 V
50 mA
10 mW
10-40 °C
400-1000 nm
0.4 mm
0-250 MHz
0-200 MHz
0, 5
0, 4
0, 3
0, 2
0, 1
0
300 400 500
(400-1000nm)
Rise Time
Gain
Dark State Noise Level
NEP (calculated)
Output Connector
Output Impedance
Device Dimensions (mm)
Output Coupling
600 700 800
Wavelengt h (nm)
05.11.2008
Page 1/2
2 ns
4x10 V/W
4
-120 dBm
(5-200 MHz)
-80 dBm
(0-5 MHz)
6 pW/Hz
1/2
SMA
50 Ω
60x50x27
DC
900 1000
