APD210 Operating Manual

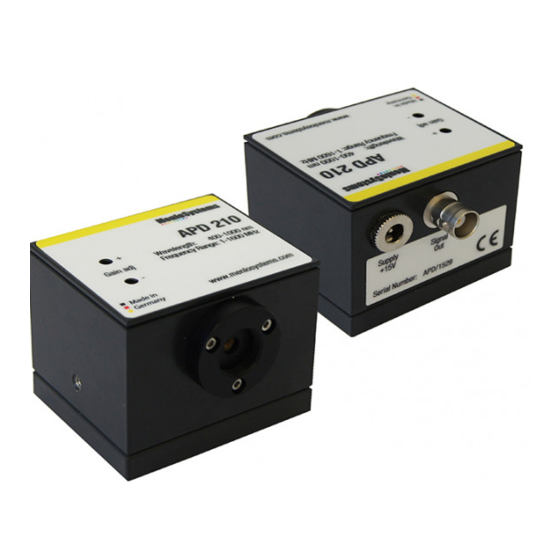

Freespace High Sensitivity Avalanche Photo Detector Unit
Freespace
+12 to +15 V
200 mA
10 mW
10-40 °C
400-1000 nm
0.5 mm
1-1600 MHz
5-1000 MHz
50
40
30
20
10
0
400
500
600
(400-1000nm)
Rise Time
Maximum Gain
Dark State Noise Level
NEP (calculated)
Output Connector
Output Impedance
Device Dimensions (mm)
Output Coupling
700
800
900
Waveleng t h ( nm)
08.02.2008
Page 1/2
0.5 ns
2.5x10
5
V/W
-80 dBm
0.4 pW/Hz
1/2
BNC
50
50x50x45
AC
1000
1100
