FPD310-FV Operating Manual
Freespace High Sensitivity PIN Photo Detector Unit
Freespace
+9 to +20 V
250 mA
2 mW
10-40 °C
400-1000 nm
0.4 mm
1-1500 MHz
10-900 MHz
0, 5
0, 4
0, 3
0, 2
0, 1
0
300
400
500
(400-1000nm)
Rise Time
Gain – Setting 1
– Setting 2
Dark State Noise Level
NEP (calculated)
Output Connector
Output Impedance
Device Dimensions (mm)
Output Coupling
600
700
800
Wavelengt h ( nm)
25.06.2007
Page 1/2
0.7 ns
5x10
4
V/W
5x10
V/W
2
-90 dBm
30 pW/Hz
1/2
SMA
50
60x50x27
AC
900
1000
Advertisement
Related Manuals for Menlo Systems FPD310-FV
Summary of Contents for Menlo Systems FPD310-FV

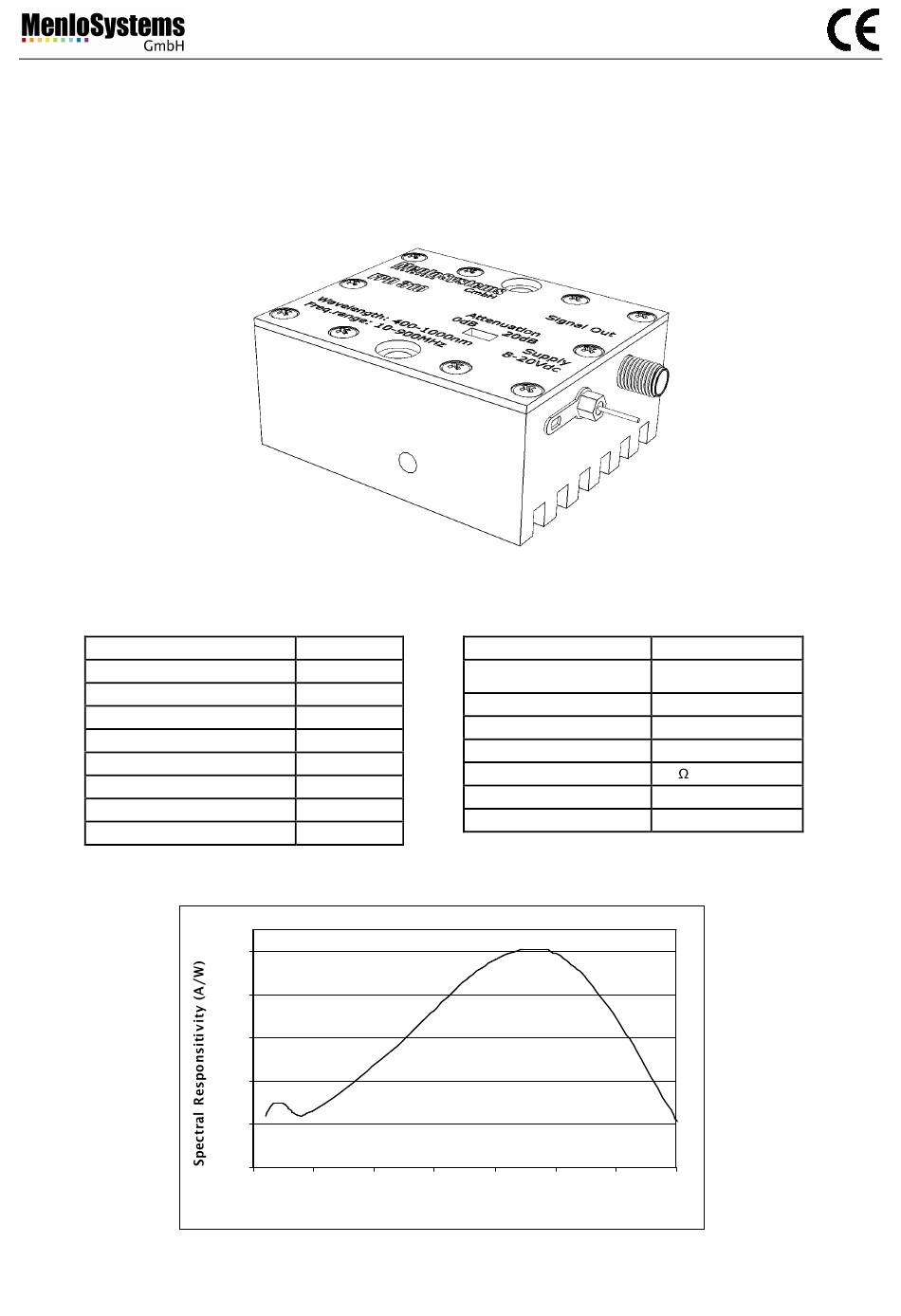

- Page 1 Am Klopferspitz 19, 82152 Martinsried, Germany Phone +49 89 189166-0, Fax +49 89 189166-11 http://www.menlosystems.de FPD310-FV Operating Manual Freespace High Sensitivity PIN Photo Detector Unit (400-1000nm) Product Specifications Optical Input Freespace Rise Time 0.7 ns Gain – Setting 1 5x10...
- Page 2 Maintaining the FPD310-FV There are no serviceable parts in the FPD310-FV. The housing may be cleaned by wiping with a soft damp cloth. Do not use any alcohol or organic solvent to clean the mechanical parts. The window of the photo diode should only be cleaned using isopropyl alcohol and optical grade wipes.
