Pyle PP555 User Manual

PP555
Visit Our Website

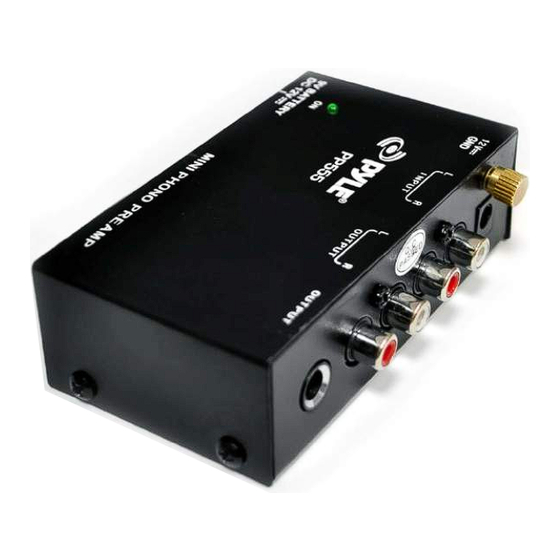

Ultra Compact Phono Turntable
Pre-Amplifier w/9V Battery Compartment
SCAN ME
PyleUSA.com
ENG UK
The pyle PP555 mini phono preamp was manufactured to enable you to connect
your record players (L) & (R) RCA OUT to the AUX, CD, DVD, Mp3 LINE IN on most
Stereo ampli ers.
Installation:
1. You can power your PP555 by installing a 9V battery in
the bottom battery compartment or by plugging the
12-Volt DC Adaptor into the DC jack located under the
grounding post.
2. When connecting your record player to the pre-amp
please be sure to connect the ground cable.
Most all record players have a double RCA (L) & (R)
combined with a ground wire.
Failure to connect ground wire properly may result in humming noise.
3. You can choose to connect your ampli er's
LINE IN to either the (L) & (R) RCA OUTPUT
or the 1/4 " Stereo Jack.
Features:
•
Converts phono signals to line level signals
•
Connects to turntable output bringing phono level up to line level
•
State-of-the-art circuitry to accommodate magnetic pickups
•
Ultra-low noise audio operation improves sound performance
•
Universal compatibility: for turntables & other studio equipment
•
RCA (L/R) Input & Output Connector Jacks
•
1/4'' Output Connector Jack *or battery operated via 9-Volt battery
www.PyleUSA.com www.PyleUSA.com
USER GUIDE
