Summary of Contents for Aeson Power APS5000 Series

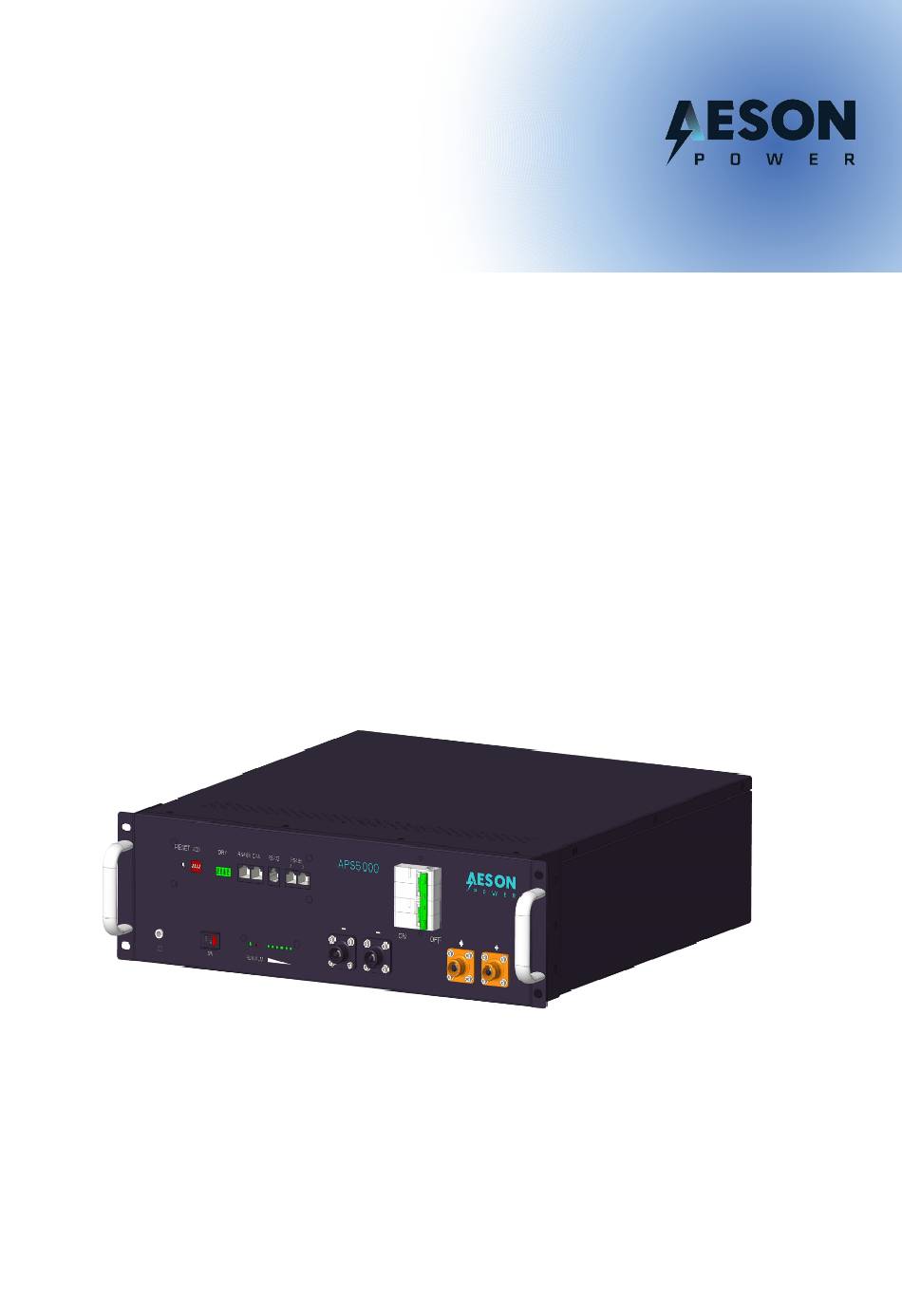

- Page 1 Configuration Instruction APS5000 Series Battery Module with Deye Inverter Configuration Insutruction for Solar Storage System Configuration Instruction of APS5000 with Deye Inverter Operation Manual...
-
Page 2: Table Of Contents
Information Version: V1.1 This manual introduces APS5000 from AESON POWER to configuration with Deye inverter to setting up as a solar storage system. Please read this manual before using and follow the instruction carefully during the installation process. Any confusion, please contact AESON POWER for advice and clarification. - Page 3 2.5 Other slave addresses can be any one of 2-15..............11 2.6 Addresses cannot be duplicated................... 11 (3) External wiring of APS5000 and DEYE inverters..............12 3.1 The APS5000 with address 1 is the host................. 12 3.2 The APS5000 communication interface is a CAN port and the other RS485 port is reserved.12 3.3 The communication interface of Deye inverter is CAN port for BMS of Li-ion battery.
-
Page 4: Example Of Appearance
1. Example of Appearance DEYE Inverter APS5000 Battery Module Series (SUN-5K-SG04LP3-EU) (1)Tools for Installation 1.1 Electrical Tools Wire Stripping Pliers Pliers for Multi-functional Network Cable Screwdrivers Copper Nose Hydraulic Pliers High-voltage insulated gloves Sleeve Tool... -
Page 5: Communication Tools
1.2 Communication Tools RS232/485 two-in-one 4-core Crystal Head with 8-core Network Cable with Communicator RJ11 Interface RJ45 Connector RJ45 Crystal Head 4 pairs of 8-core Twisted 4-core Telephone Line Pair Cables 1.3 Special Accessories ES-BPC-C-16-25-OG- 25-6 Lug CONNECTOR/Phoenix 25-8 Lug 25-10 Lug 2. - Page 6 APS5000 Interface Diagram 1. RESET: Long press 3~6 seconds to hibernate or activate BMS; Long press 6~10 seconds to reset BMS 2. ADD: DIP switches and it needs to avoid the address set to the same. (See Figure 1 below) 3.
- Page 7 Connect or disconnect battery power input and output, which need to be turned on before charging and discharging after the BMS works. Parameter: type C, rated voltage 160V/DC, rated current 125A, ICU: 10kA. 8. Earthing: For battery earthing 9. SW: BMS switch, turn on the BMS to start working. After there is no abnormality, then turn on the breaker.
-
Page 8: Electrical Wiring Instructions Between Deye And Aps5000
Inverter Interface Diagram (Example is SUN-5K-SG04LP3-EU) 3. Electrical Wiring Instructions between Deye and APS5000 (1) Internal Wiring of the APS5000 1.1 Electrical Wiring for Outputs Under 5KW... -
Page 9: Electrical Wiring For Outputs Over 5Kw
Use 4AWG gauge pure copper flexible wire with ES-BPC-C-16-25-OG CONNECTOR/Phoenix. The positive terminal of each of the two batteries is connected to the positive terminal and the negative terminal is connected to the negative terminal. Up to 15 batteries in parallel. This connection scheme is A-type parallel connection method to extend the capacity. -
Page 10: Communication Wiring Instructions Between Deye And Aps5000
Connect the wiring harness of inverter and the APS5000 power supply According to the dimensions specified in the BAT+ and BAT- of the DEYE inverters, use copper nose hydraulic pliers to fix the applicable M6 / M8 / M10 copper nose to one end of the 4 AWG specification to connect the inverter. -
Page 11: Internal Wiring Of The Aps5000
RS485 - Use 8P8C vertical RJ45 sockets RS485 - Use 8P8C vertical RJ45 sockets RJ45 Pin Definition notes RJ45 Pin Definition notes 1、8 RS485-B 1、8 RS485-B 2、7 RS485-A 2、7 RS485-A 3、6 3、6 4、5 4、5 Definition of APS5000 Parallel RS485 to Another APS5000 RS232 - Use 6P6C vertical RJ11 sockets RJ11 Pin Definition notes... -
Page 12: Bluetooth Connection
Definition of Communication Port of Deye Inverter (3)External Wiring of APS5000 and DEYE Inverters. 3.1 APS5000 Master DIP setting shows below. 3.2 The APS5000 communication interface is a CAN port and the other RS485 port is reserved. 3.3 The communication interface of the DEYE inverter is CAN port for BMS of Li-ion battery. - Page 13 1.3 Check that SW switch of the battery is ON. Turn on the Bluetooth switch of the phone. Click the Local control, Select, and click the battery pack with the corresponding SN code. 1.4 You can see PACK data, Historical data, Parameter Settings and Device Information.
-
Page 14: Battery Parameters
2.3 Select and click to bind the battery in the corresponding SN code. Bluetooth may not be connected, and other mobile phone accounts cannot bind this battery. Next, you can connect via WIFI to view battery information. If the WIFI network can connect to the internet, you can also view the battery information remotely via data networks. - Page 15 Suggestion for Temperature, Voltage and Current List Discharge Charge Charge Discharge Environment Temperature Cut-off Voltage Cut-off Voltage Current Current 25℃ ± 2℃ 57.6V 100A (2)Related Settings of DEYE Inverter 2.1 SETTING GUIDER 2.2 BATTERY SETTING 2.2.1 Select Lithium, setting value of Max A Charge and Max A Discharge can not be greater than 100A.
- Page 16 2.2.2 Set as needed and it is recommended to follow the default parameters as shown in the picture. CONTACT US www.aesonpower.com.au | info@aesonpower.com.au | 63-67 Smeaton Ave Dandenong South VIC 3175 | +61 03 9545 5993...
