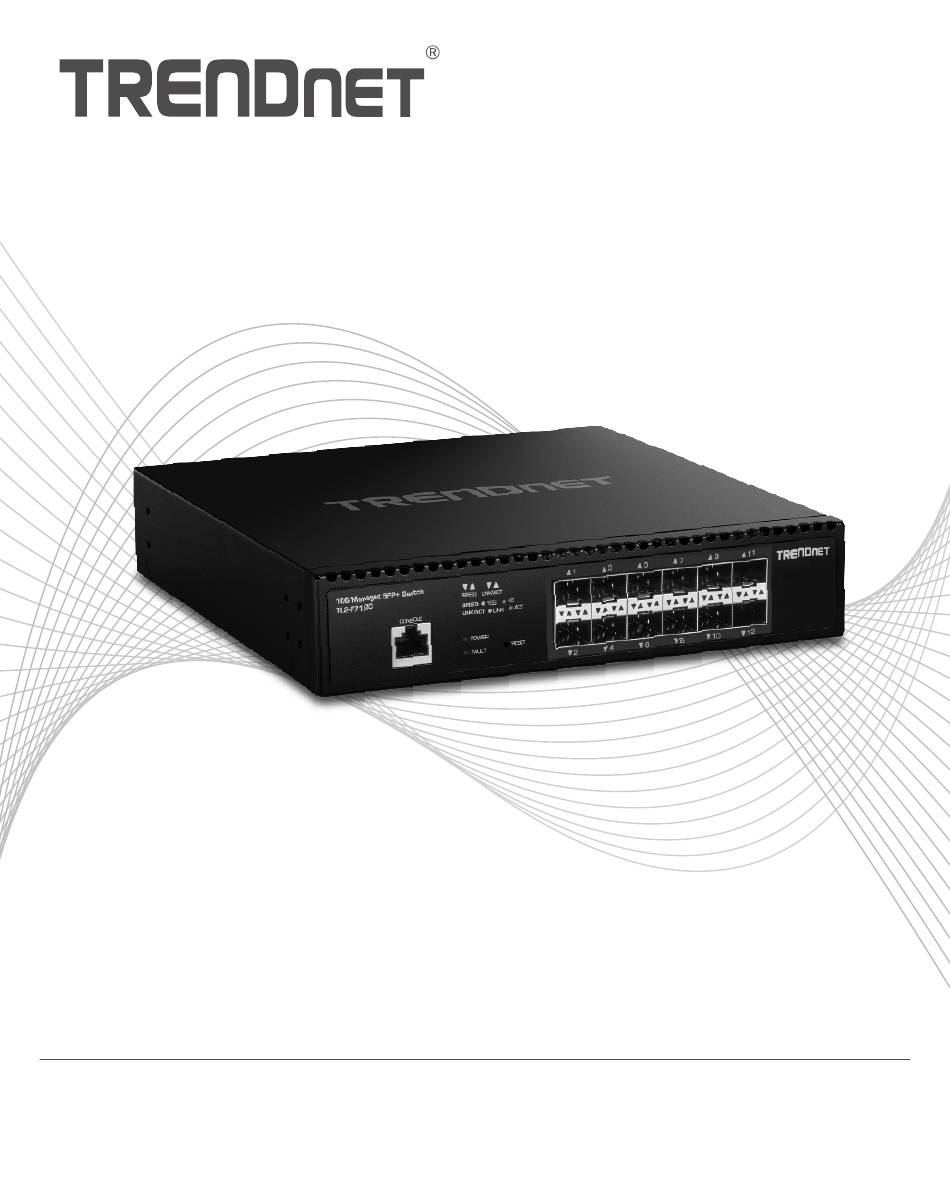

  • Page 1 Quick Installation Guide TL2-F7120 (V1)
  • Page 2 Table of Contents Рortuguês 1. Antes de Iniciar 2. Referência Rápida 3. Instalação de Hardware e Configuração https://www.trendnet.com/qig/1170...

  • Page 3: Antes De Iniciar

    Ÿ Computador com placa de rede Ethernet ou placa de rede SFP (dependente do módulo SFP/SFP+) e navegador web Ÿ Módulos 1Gbps SFP / 10Gbps SFP+ (exemplo, TEG-10GBSR, TEG-10GBS10, TEG-10GBS40, TEG-10GBRJ, TEG-MGBSX, TEG-MGBS10, TEG-MGBS20, TEG-MGBS40, TEG-MGBS10D3/D5, TEG-MGBS20D3/D5, TEG-MGBS40D3/D5, TEG-MGBRJ) com cabeamento apropriado 2. Referência Rápida TL2-F7120 Network 10G SFP+...
  • Page 4 3. Instalação de Hardware e Configuração Energia TL2-F7120 3. Colocar um endereço IP estático, na placa de rede do seu computador, na gama de Ips 192.168.10.x (por exemplo: 192.168.10.25) e colocar no campo da subnet mask 255.255.255.0. 4. Abra seu web browser, digite endereço IP do switch na barra de endereços e então pressione...
  • Page 5 7. Configure o switch para adequar-se aos requisitos de sua rede local. Clicar em Apply (Aplicar). Para fazer o download da versão mais recente do guia do usuário, acesse: http://www.trendnet.com/support e selecione o TL2-F7120 na lista suspensa Download do Produto.
  • Page 6 LED Definition Reference Color Status Description Power on Green Solid POWER Green Blinking System boot up Power off Orange Solid Hardware fault detected FAULT System normal SFP+ Slots 1-12 Green Solid Link established Green Blinking Data transmitting LINK/ACT No link/disconnected Green Solid 10Gbps link...
  • Page 7 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-855-373-4741 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
