EVOCA Macas MACES4C-00 Series Operation & Instruction Manual

Automatic freshly ground coffee machine
Hide thumbs

Advertisement

Quick Links

Download this manual

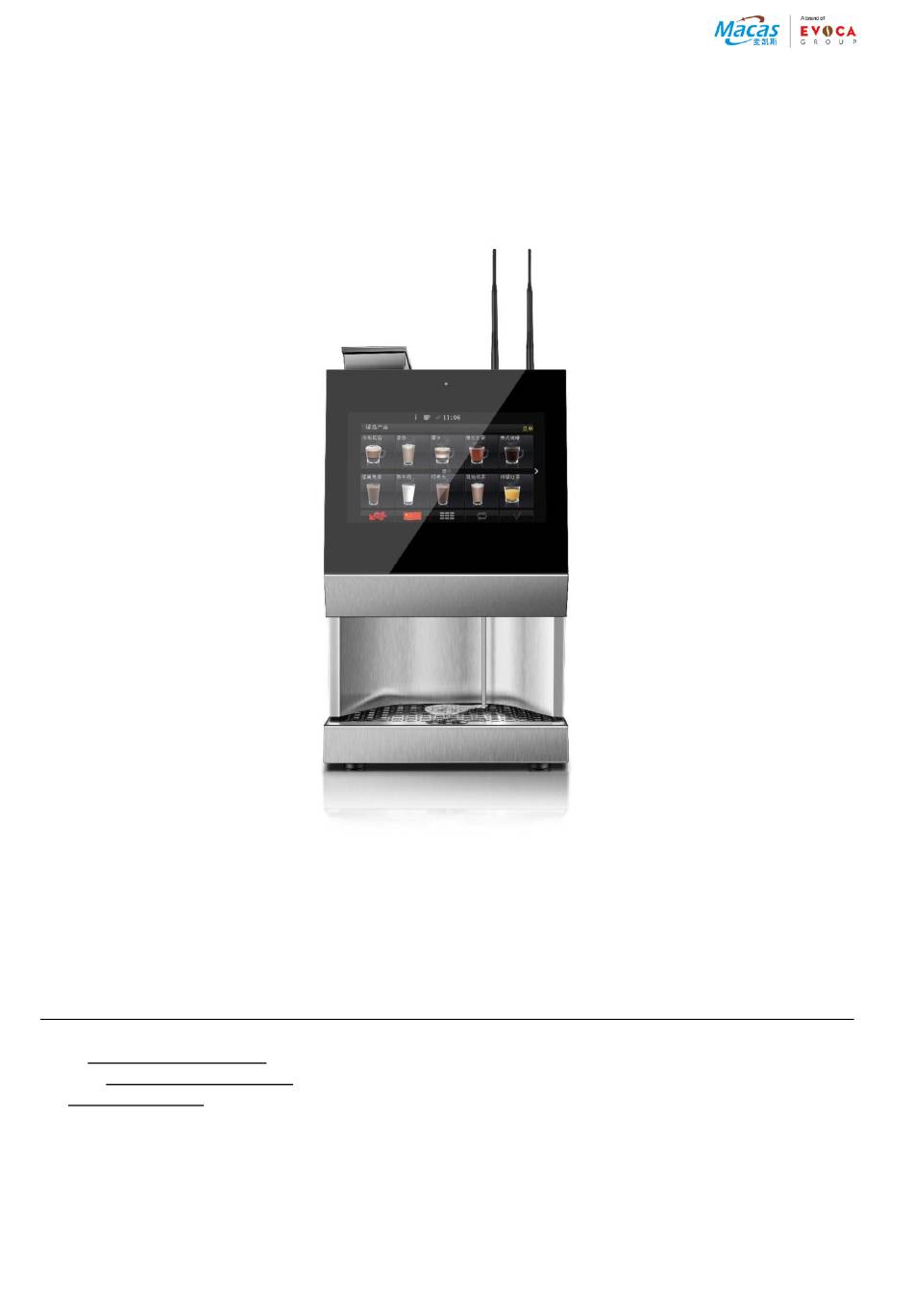

MACES4C-00
EVOACAS automatic freshly ground coffee machine
Common operation instruction manual
Guangzhou EVOACAS intelligent Equipment Co., LTD
Add: 5F, Block B, Building A1, No.18, Pacific Industrial Zone, Xintang Town, Zengcheng District,
Guangzhou
kevin@icoffee-tea.com
Email
:
Web site: http://cn.icoffee-tea.com
Tel: 86-020-82557460
1
MACES4C-00

Advertisement

loading
Need help?

Need help?

Do you have a question about the Macas MACES4C-00 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EVOCA Macas MACES4C-00 Series

Summary of Contents for EVOCA Macas MACES4C-00 Series

  • Page 1 MACES4C-00 EVOACAS automatic freshly ground coffee machine Common operation instruction manual Guangzhou EVOACAS intelligent Equipment Co., LTD Add: 5F, Block B, Building A1, No.18, Pacific Industrial Zone, Xintang Town, Zengcheng District, Guangzhou kevin@icoffee-tea.com Email Web site: http://cn.icoffee-tea.com Tel: 86-020-82557460 MACES4C-00...

  • Page 2: Table Of Contents

    Contents Contents ..................................2 1 Foreword ................................... 3 1.1 About the Manual ............................... 3 1.2 Important safety recommendations ........................3 1.3 Perishable parts ..............................4 1.4 Packaging material disposal ..........................4 1.5 Scrap of machine ..............................4 1.6 Copyright ................................4 1.7 Notices ................................

  • Page 3: Foreword

    1 Foreword Thank you for purchasing the MACES4C-00 Series fully automatic Commercial freshly ground coffee machine! Please confirm that you have informed Aiwo Coffee in advance about the factory Settings, such as: Wechat Pay corporate account, Alipay corporate account, service phone number and company website, your company logo, recipe requirements and cup size and other important information 1.1 About the Manual This manual is a guidance document for authorized technicians to safely transport, install, set up, program, maintain...

  • Page 4: Perishable Parts

    1.6 Copyright 1., EVOCA and Macas are trademarks or registered trademarks of Guangzhou Aiwujia Intelligent Equipment Co., LTD. Other trademarks, product names, service names and company names appearing in this manual and in the products described in this manual are the property of their respective owners.

  • Page 5: About The Machine

    2 About the machine 2.1 Machine Features 2.1.1 Machinery Overall dimensions: 960 (H) x 560 (L) x 600 (W) (unit: mm) Weight: 47kg ~ 53kg (without optional modules) Mechanical lock Horse cup cup holder (where to place the cup) ➢ Maximum cup height: 110mm ➢...

  • Page 6: Implementation Of Standards

    2.1.5 Enforce standards Electrical Safety (CE): ➢ LOW VOLTAGE DIRECTIVE 2006/95/EC ➢ HARMONIZED STANDARDS: EN 60335-1/EN 60335-2-75 ➢ EMC: ➢ DIRECTIVE 2004/108/EC HARMONIZED STANDARDS: EN 61000-6-3 / EN 61000-6-1 / EN 61000-3-2 / EN 61000-3-3 / EN ➢ 55014-1 / EN 62233 ROHS: ➢...

  • Page 7: Front View Of External Structure Of The Product

    2.1.8 Front view of product external structure WIFI signal enhanced antenna Coffee Bean bin (Capacity 1.5 L) 15.6-inch display Adjustable horse cup holder Drip tray (Capacity 1.1 L) MACES4C-00...

  • Page 8: Product Internal Structure View

    2.1.9View of internal structure of the product WIFI Coffee antenna bean bin Grinder Instant product stock Box out powder Door Blender nozzle magnetic Coffee sensor Brewer Product beverage out of mouth Coffee waste Full water grounds detection signal bucket cable Drip tray M-TT-ES-4C...

  • Page 9: Hardware Architecture And Wiring View Of The Back Of The Product

    2.1.10 Hardware architecture and wiring view of the back of the product Extraction steam fan Wate boar MDB port tank RJ45 network Electroni Filters port c valve Feed box High motor voltage Direct drinking Three- board water intake Flowm valves overloader eter 12V power...

  • Page 10: User Interface

    2.2 User Interface Aiwiga automatic freshly ground coffee machine is a new generation of coffee machine controlled by 15.6 "touch screen, which provides intuitive user page, including consumer page and operation page. The consumer page (hereinafter referred to as CUI), as shown in the figure below, is similar to the mobile phone operation page: Notes: Company name or logo.

  • Page 11: Machine Configuration

    2.3 Machine Configuration The product configuration of this model can be customized according to customer needs, if you need to order, please contact love I coffee pre-sales service. 2.3.1 Configuration Layout (can be adjusted according to customer needs) MACES4C-00 2.2 L 2.5 L 2.5 L 2.5 L...

  • Page 12: Schematic Diagram Of Machine Waterway (For Reference Only)

    2.3.2 Machine Waterway schematic (for reference only) Note: Machine configurations are being updated with iterations all the time, machine waterway schematics are for reference only! 3 Transport and warehousing 3.1 Transportation This machine is packed in wooden cases or cartons to protect it from damage, moisture and dust. For any claim, the goods must be inspected immediately for damage or loss and photographed for identification.

  • Page 13: Transportation And Storage Environment

    3.2 Transportation and storage environment Be aware of: There is a risk of damage! To prevent damage to the machine, please note: ➢ Can only be used in +5°C - +35°C environment, low temperature icing and high temperature wet environment can easily seriously damage the machine. ➢...

  • Page 14: Prepare Before Operation

    4 Prepare for operation 4.1 Setting up the machine This machine is not suitable for and cannot be installed outdoors, it needs to be installed indoors in a dry environment with an ambient temperature between 5°C and 35°C, and cannot be installed in a humid environment with jet and spray water.

  • Page 15: Machine Installation

    5 Machine Installation Note: Only people who have already been trained to install the machine! Read the installation instructions completely and carefully! Please check if there is any damage to the machine before installation, some damage is more hidden! If the damage is found, please contact the transportation company to claim and take a photo to keep the card, and immediately inform love I coffee in order to get after-sales service! Please prepare the means of transport before installing the machine! Be aware of:...

  • Page 16: Removing Packaging

    5.1 Removing Packaging Please confirm whether there is any damage to the machine before installation, some damage is more hidden! The machine is packaged. In some areas, cartons or wooden cases are used for packing Important: Risk of failure! Please refer to the following suggestions for choosing a place to place: The machine can be placed in a dry, well-ventilated room and run.

  • Page 17: Machine Door Opening

    5.2 Open the door of the machine Note: Only open the machine door if you have the key! Aikuka is not responsible for damage to the machine if it is not operated according to the instructions! ⚫ Use the key to unlock the door of the machine and check the inside of the machine for damage or missing parts after opening the door door lock...

  • Page 18: Stuffing Box

    5.3 Stuffing box Open the top of the material box Feed box Important: Do not press the powder by hand, so as not to make the powder too tight and abnormal powder! Note: The first use of the box or the first use after cleaning, pay attention to the box out of the mouth is empty, which will lead to the first drink taste weak.

  • Page 19: Place The Waste Residue Bucket And Drip Tray

    5.4 Place the waste residue bucket and drip tray Note: Pay attention to where the waste bucket is placed. Make sure the waste water is full and the detection signal line is within range of the drip tray. 5.5 Connect the power supply to turn it on Connect the power cord of the machine to the outlet after completing the above steps correctly, and the outlet should be placed in an easy to operate position.

  • Page 20: Connecting To Wifi

    Water inlet pipe Leakage protection 220V input switch connector Power Cord Note: Improper voltage risks damage to the machine! Different countries, regions voltage is different, machine use voltage details please refer to the machine nameplate! Please pay attention to check the voltage, voltage change to the machine damage risk! Please pay attention to the grounding condition of the place where the machine is placed! This is important! 5.6 Connecting to WIFI 1 Connect the WIFI antenna...
  • Page 21 2 Open the door of the machine and slide out the hidden button from the bottom net of the screen. Tap access the Android menu 3 Tap the menu button on the Android interface 4 Tap the Settings button M-TT-ES-4C...
  • Page 22 5 Tap WIFI to connect 6 Tap the hidden button and tap the menu button on the Android page to select this APP to enter the coffee maker mode M-TT-ES-4C...

  • Page 23: Calibrating

    5.7 Calibrating There are several steps to debugging your machine: 1. Calibrating the grinder 2. Calibrate instant powder box discharge accuracy Note: Before adjusting the grinder, prepare the (low volume value) electronic scale! Prepare fresh coffee beans before calibrating the grinder! To ensure reliable accuracy values, it is recommended to use an electronic scale similar to the following Brief description of the role of the grinder: Grinding coffee beans makes the coffee powder produce uniform thickness.
  • Page 24 Procedure for calibrating the grinder: Step 1: Enter password 2020 here to access the maintenance screen of the machine 2 Tap the grinder icon 3 Click on the grinder Test Calibration as shown in the image below to enter the next screen M-TT-ES-4C...
  • Page 25 4 Pull out the outlet nozzle of the grinder 5 Click on Calibration to begin 6 Which cup catches the ground coffee after starting M-TT-ES-4C...
  • Page 26 7 Take a clean paper cup to the electronic scale and peel (note that the unit value is set to g) the ground coffee powder to the electronic scale weight, and enter the value in the calibration interface 8. Input the weight accurately into this screen 9 Adjust the thickness of the grinder How to use the grinder thickness adjuster: ⚫...
  • Page 27 10 The position of the grinder thickness adjuster is thinner clockwise and thicker counterclockwise Calibrate the instant stock box Cartridge calibration is software for the physical properties of the instant cartridge and the physical properties of the powder. Before calibrating, you need to prepare the electronic scale and cup. Important: Calibration is not allowed to cause the machine powder abnormal! It is recommended to calibrate three times to observe whether there is a large error in the actual calibration value...
  • Page 28 Step 2: Select the cartridge you want to calibrate and click Step 3: Click Test Calibration (cup must be weighed and peeled before adding powder) M-TT-ES-4C...
  • Page 29 Step 4 Prepare a cup to catch the powder and hit the Start button Step 5: Use electronic scale to weigh the powder, enter the weight value can be M-TT-ES-4C...

  • Page 30: Set The Selling Mode Of The Machine

    Important: It is recommended to calibrate three times to observe whether there is a large error in the actual calibration value (error within plus or minus 3 grams) Calibration is not allowed to cause the machine powder abnormal! The weight of the cup must be zero and ignored during calibration. Freshly unpacked powder must be used for calibration 5.8 Set the selling mode of the machine Check the software manual to set the price of the machine and switch the machine to the charge mode...

  • Page 31: Cleaning And Maintenance

    6. Cleaning and maintenance 6.1 Clean the instant material box There are three material boxes for this model, as shown below: When the powder discharge nozzle appears powder accumulation residue, please clean up in Degre time Attention: Blender contamination will only be minimal if the box outlet is positioned correctly (at an Angle of about 45 degrees).

  • Page 32: Clean Out The Blender

    Take out the material box ⚫ Lift the box up 5mm ⚫ Pull out the box outwards ⚫ Empty the box ⚫ The supply box is removable for cleaning ⚫ After cleaning the box, you need to dry the box 6.2 Cleaning the blender The blender position is shown below: Remove blender...
  • Page 33 2. Turn the outlet of the blender 90 degrees clockwise and pull it out 3. Separate the mixer body from the top cover 4. Clean the remaining powder inside M-TT-ES-4C...

  • Page 34: Clean The Beverage Outlet And Holder

    6.3 Clean the beverage outlet and stand (according to the actual use of the machine Disassemble 1. Turn the black retaining knob 2 Unplug the black water pipe and pull out the entire beverage outlet holder Note: The black pipe cannot hold the squeeze deformation when inserting back into the black pipe M-TT-ES-4C...
  • Page 35 Note: The black pipe cannot hold the squeeze deformation M-TT-ES-4C...

  • Page 36: Clean The Drip Tray And Waste Water Bucket

    6.4 Clean drip trays and waste residue buckets Attention: A trash bag is recommended for coffee waste grounds buckets for easy dumping. Drip tray when the waste water is full to a certain amount of timely dumping. When installing the drip tray, ensure that the "full water detection signal line" is located in the wastewater tray. Clean the trash can and dump it 7 Install a powder funnel Place the powder funnel into the mouth of the brewer where the powder is connected...

  • Page 37: Empty Errors

    8 Empty the errors Method 1 1 Tap the image below to enter the 2020 password 2 Tap the button from the image below to enter the error list 3 Click Clear M-TT-ES-4C...
  • Page 38 Method 2 1 Click on the arrow position to pull down to bring out the error in Click Empty M-TT-ES-4C...
