Unpacking

Thank you for buying the MSI
motherboard
E3 KRAIT GAMING
V5. Check to make
®
sure your motherboard box contains the following items. If something is missing,
contact your dealer as soon as possible.

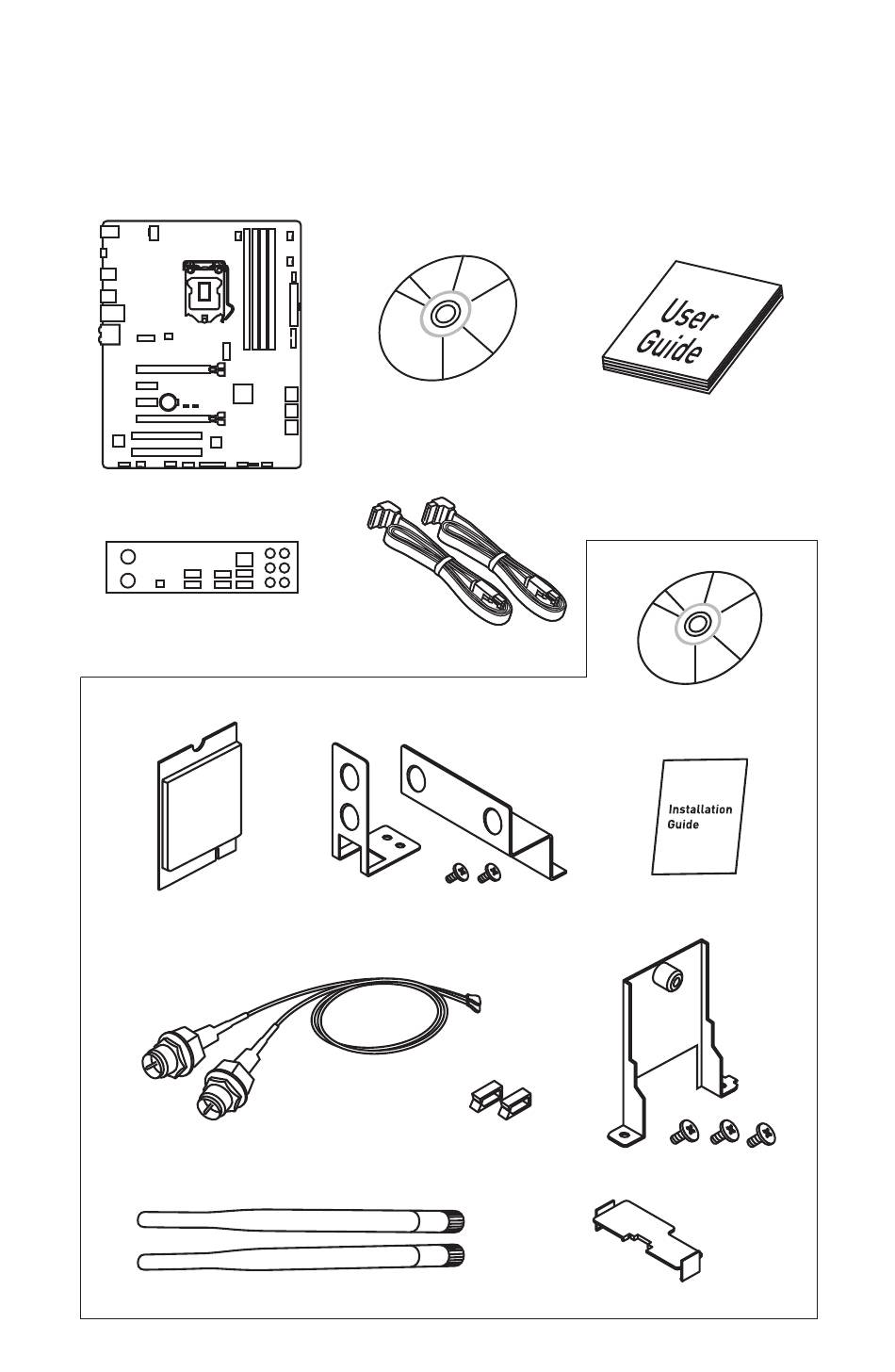

Drivers & Utilities
Motherboard User
Disc
Guide
Motherboard
I/O Shield
SATA Cable x2
Wi-Fi Moudle Kit (Optional)
Wi-Fi/ Bluetooth
Driver Disc
Installation Guide
Intel
Dual Band
Antenna Bracket
®
Wireless-AC 8260
module (E Key)
RP-SMA to U.FL Pigtail
Wire Clip Sticker x2
Antenna Cable x2
M.2 Bracket
U.FL Clip
Antenna x2
1
Unpacking

Advertisement

loading
Need help?

Need help?

Do you have a question about the E3 KRAIT GAMING V5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSI E3 KRAIT GAMING V5

Summary of Contents for MSI E3 KRAIT GAMING V5

  • Page 1: Unpacking

    Unpacking Thank you for buying the MSI motherboard E3 KRAIT GAMING V5. Check to make ® sure your motherboard box contains the following items. If something is missing, contact your dealer as soon as possible. Drivers & Utilities Motherboard User...

  • Page 2: Safety Information

    Safety Information The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start. Hold the motherboard by the edges to avoid touching sensitive components.

  • Page 3: Quick Start

    Quick Start Preparing Tools and Components Intel LGA 1151 CPU ® CPU Fan Thermal Paste DDR4 Memory Power Supply Unit Chassis SATA Hard Disk Drive Graphics Card SATA DVD Drive A Package of Screws Phillips Screwdriver Quick Start...

  • Page 4: Installing A Processor

    Installing a Processor http://youtu.be/bf5La099urI Quick Start...

  • Page 5: Installing Ddr4 Memory

    Installing DDR4 memory http://youtu.be/T03aDrJPyQs Quick Start...

  • Page 6: Connecting The Front Panel Header

    Connecting the Front Panel Header http://youtu.be/DPELIdVNZUI HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch JFP1 Reserved No Pin JFP1 HDD LED - HDD LED HDD LED + POWER LED - POWER LED POWER LED + Quick Start...

  • Page 7: Installing The Motherboard

    Installing the Motherboard Quick Start...

  • Page 8: Installing Sata Drives

    Installing SATA Drives http://youtu.be/RZsMpqxythc Quick Start...

  • Page 9: Installing A Graphics Card

    Installing a Graphics Card http://youtu.be/mG0GZpr9w_A Quick Start...

  • Page 10: Connecting Peripheral Devices

    Connecting Peripheral Devices Quick Start...

  • Page 11: Connecting The Power Connectors

    Connecting the Power Connectors http://youtu.be/gkDYyR_83I4 JPWR1 JPWR2 Quick Start...

  • Page 12: Power On

    Power On Quick Start...

  • Page 13: Table Of Contents

    Contents Unpacking ......................1 Safety Information ....................2 Quick Start ......................3 Preparing Tools and Components ................3 Installing a Processor ..................... 4 Installing DDR4 memory ..................5 Connecting the Front Panel Header ............... 6 Installing the Motherboard ..................7 Installing SATA Drives.....................
  • Page 14 JBAT1: Clear CMOS (Reset BIOS) Jumper ............37 JCI1: Chassis Intrusion Connector ............... 38 EZ Debug LED: Debug LED indicators ..............38 BIOS Setup ......................39 Entering BIOS Setup ..................... 39 Resetting BIOS ...................... 40 Updating BIOS ....................... 40 EZ Mode ........................ 41 Advanced Mode ....................

  • Page 15: Specifications

    Supports Intel Extreme Memory Profile (XMP)** ® * For the latest information about memory, please visit http://www.msi.com ** DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel chipset limitation.
  • Page 16 Continued from previous page Intel Dual Band Wireless-AC 8260 module (optional) ® Supports M.2 (Key E) interface ƒ WLAN & Bluetooth ® Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, ƒ (Optional) 5GHz) up to 867 Mbps speed. Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, ƒ...
  • Page 17 Continued from previous page 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2x 4-pin CPU fan connectors 3x 4-pin system fan connectors...
  • Page 18 SteelSeries Engine 3 CPU-Z AUDIO BOOST Isolated Audio PCB ƒ EMI Shielding ƒ GAMING LAN Intel I219-V Gigabit Ethernet ƒ MSI Network Manager ƒ Electric Wave Surge ƒ GAMING APP Performance System Mode Switching: OC/Gaming/Silent ƒ GAMING Features Gaming Hotkey ƒ...
  • Page 19 Military Class Component ƒ Military Class Stability and Reliability ƒ ESD Protection ƒ EMI Protection ƒ Humidity Protection ƒ Circuit Protection MSI Exclusive ƒ Features High Temperature Protection ƒ Steel Armor PCIe Slots ƒ VGA Armor Slot ƒ COMMAND CENTER System Monitor ƒ...

  • Page 20: Block Diagram

    Block Diagram Dual Channel DDR4 Memory PCI Express Bus DMI 3.0 PCI Express Bus Switch PCI Express Bus 2x PCIe x1 slots 2x PCI slots ASM1083 M.2 SSD (Key M) C232 Intel SATA 6Gb/s Switch I219-V USB 3.1 Gen1 Wi-Fi/ Bluetooth (5 Gbps) M.2 (Key E) LPC Bus...

  • Page 21: Rear I/O Panel

    Rear I/O Panel Audio Ports PS/2 Mouse USB 3.1 Gen1 USB 3.1 Gen1 Clear CMOS PS/2 Keyborad USB 2.0 USB 3.1 Gen1 Type-C Clear CMOS button - Power off your computer. Press and hold the Clear CMOS button for about 5 seconds to reset BIOS to default values. LAN Port LED Status Table Link/ Activity LED Speed LED...

  • Page 22: Realtek Hd Audio Manager

    Realtek HD Audio Manager After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will appear in the system tray. Double click on the icon to launch. Device Selection Advanced Settings Jack Status Application Enhancement Main Volume Connector Strings Profiles...
  • Page 23 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Rear I/O Panel...

  • Page 24: Overview Of Components

    Overview of Components DIMM3 CPUFAN1 DIMM4 DIMM2 JPWR2 DIMM1 SYSFAN1 M2_2 CPU Socket CPUFAN2 SYSFAN3 EZ Debug LED JPWR1 JUSB2 M2_1 PCI_E1 JCI1 PCI_E2 SATA1_2 JBAT1 PCI_E3 SATA3_4 PCI_E4 SATA5_6 PCI1 PCI2 JFP1 JFP2 JTPM1 SYSFAN2 JCOM1 JUSB1 JLPT1 JAUD1 Overview of Components...

  • Page 25: Component Contents

    Component Contents Port Name Port Type Page CPUFAN1~2, SYSFAN1~3 Fan Connectors CPU Socket LGA1151 CPU Socket DIMM1~4 DIMM Slots EZ Debug LED Debug LED indicators JAUD1 Front Audio Connector JBAT1 Clear CMOS (Reset BIOS) Jumper JCI1 Chassis Intrusion Connector JCOM1 Serial Port Connector JFP1, JFP2 Front Panel Connectors...

  • Page 26: M2_2: M.2 Slot (Key E)

    M2_2: M.2 Slot (Key E) This slot is used for a M.2 Wi-Fi module. Please follow the steps below to install the Intel dual band wireless-AC 8260 module (optional). Installing antenna cables and antenna bracket Align the RP-SMA connector with the hole in the antenna bracket.

  • Page 27: Cpu Socket

    Always unplug the power cord from the power outlet before installing or removing the CPU. Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.

  • Page 28: Dimm Slots

    DIMM Slots DIMM1 DIMM3 Channel A Channel B DIMM2 DIMM4 Memory module installation recommendation DIMM4 DIMM4 DIMM3 DIMM2 DIMM2 DIMM2 DIMM1 Important Always insert memory modules in the DIMM2 slot first. Due to chipset resource usage, the available capacity of memory will be a little less than the amount of installed.

  • Page 29: Pci_E1~E4, Pci1~2: Pcie And Pci Expansion Slots

    PCI_E1~E4, PCI1~2: PCIe and PCI Expansion Slots PCI_E1: PCIe 3.0 x16 PCI_E2: PCIe 3.0 x1 PCI_E3: PCIe 3.0 x1 PCI_E4: PCIe 3.0 x4 PCI1: PCI slot PCI2: PCI slot Multiple graphics cards installation recommendation Important For a single PCIe x16 expansion card installation with optimum performance, using the PCI_E1 slot is recommended.

  • Page 30: Sata1~6: Sata 6Gb/S Connectors

    SATA1~6: SATA 6Gb/s Connectors These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. SATA2 SATA1 SATA4 SATA3 SATA6 SATA5 Important Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.

  • Page 31: M2_1: M.2 Slot (Key M)

    M2_1: M.2 Slot (Key M) Important Intel RST only supports PCIe M.2 SSD with UEFI ROM, ® does not support Legacy ROM. Video Demonstration Watch the video to learn how to Install M.2 module. http://youtu.be/JCTFABytrYA Installing M.2 module Remove the screw from the base screw.

  • Page 32: Jpwr1~2: Power Connectors

    JPWR1~2: Power Connectors These connectors allow you to connect an ATX power supply. JPWR2 Ground +12V Ground +12V Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground JPWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V Ground Important...

  • Page 33: Jfp1, Jfp2: Front Panel Connectors

    JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. JFP1 HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch Reserved No Pin Speaker - Buzzer + JFP2...

  • Page 34: Jusb2: Usb 3.1 Gen1 Connector

    JUSB2: USB 3.1 Gen1 Connector This connector allows you to connect USB 3.1 Gen1 ports on the front panel. Power USB2.0+ USB3_RX_DN USB2.0- USB3_RX_DP Ground Ground USB3_TX_C_DP USB3_TX_C_DN USB3_TX_C_DN USB3_TX_C_DP Ground Ground USB3_RX_DP USB2.0- USB3_RX_DN USB2.0+ Power Ground No Pin Important Note that the Power and Ground pins must be connected correctly to avoid possible damage.

  • Page 35: Cpufan1~2, Sysfan1~3: Fan Connectors

    CPUFAN1~2, SYSFAN1~3: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode and Voltage Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. Voltage Mode fan connectors control fan speed by changing voltage.

  • Page 36: Jlpt1: Parallel Port Connector

    JLPT1: Parallel Port Connector This connector allows you to connect the optional parallel port with bracket. RSTB# AFD# PRND0 ERR# PRND1 PINIT# PRND2 LPT_SLIN# PRND3 Ground PRND4 Ground PRND5 Ground PRND6 Ground PRND7 Ground ACK# Ground BUSY Ground Ground SLCT No Pin JCOM1: Serial Port Connector This connector allows you to connect the optional serial port with bracket.

  • Page 37: Jtpm1: Tpm Module Connector

    JTPM1: TPM Module Connector This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages. LPC Clock 3V Standby power LPC Reset 3.3V Power LPC address & data pin0 Serial IRQ LPC address &...

  • Page 38: Jci1: Chassis Intrusion Connector

    JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis intrusion event (default) Using chassis intrusion detector Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. Close the chassis cover. Go to BIOS >...

  • Page 39: Bios Setup

    Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process. Use MSI FAST BOOT application. Click on GO2BIOS button and choose OK. The system will reboot and enter BIOS setup directly.

  • Page 40: Resetting Bios

    Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: Press Del key to enter the BIOS Setup during POST.

  • Page 41: Ez Mode

    EZ Mode At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key. XMP switch Setup Mode switch Screenshot...
  • Page 42 Favorites - press any Favorites tab or the F3 key to enter Favorites menu. It allows you to create personal BIOS menu where you can save and access favorite/ frequently-used BIOS setting items. Default HomePage - allows you to select a BIOS menu (e.g. SETTINGS, OC...,etc) ƒ...

  • Page 43: Advanced Mode

    Advanced Mode Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup. XMP switch Setup Mode switch Screenshot Favorites Language System information Boot device priority bar BIOS menu BIOS menu selection selection Menu display XMP switch/ Setup Mode switch/ Screenshot/ Favorites/ Language/ System...

  • Page 44: Settings

    SETTINGS System Status System Date Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only. <month> The month from Jan. through Dec. <date>...
  • Page 45 fPEG X - Max Link Speed [Auto] Sets PCI Express protocol of PCIe x16 slots for matching different installed devices. [Auto] This item will be configured automatically by BIOS. [Gen1] Enables PCIe Gen1 support only. [Gen2] Enables PCIe Gen2 support only. [Gen3] Enables PCIe Gen3 support only.
  • Page 46 fSATA Mode [AHCI Mode] Sets the operation mode of the onboard SATA controller. [AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced Host Controller Interface) offers some advanced features to enhance the speed and performance of SATA storage device, such as Native Command Queuing (NCQ) and hot-plugging.
  • Page 47 fParallel (LPT) Port Configuration Sets detailed configuration of parallel port (LPT). Press Enter to enter the sub- menu. fParallel (LPT) Port [Enabled] Enables or disables parallel(LPT) port. fParallel (LPT) Port Settings [Auto] Sets parallel port (LPT). If set to Auto, BIOS will optimize the IRQ automatically or you can set it manually.
  • Page 48 Disables this function. fMSI Fast Boot [Disabled] MSI Fast Boot is the fastest way to boot the system. It will disable more devices to speed up system boot time which is faster than the boot time of Fast Boot. [Enabled] Enables the MSI Fast Boot function to speed up booting time.
  • Page 49 fSecure Boot Support [Disabled] Enables or disables secure boot support. [Enabled] Enables the secure boot function and allows you to set the secure boot settings. [Disabled] Disables this function. fSecure Boot Mode [Standard] Selects the secure boot mode. This item is to select how the secure boot keys be loaded.

  • Page 50: Boot

    fResume by USB Device [Disabled] Enables or disables the system wake up by USB devices. [Enabled] Enables the system to be awakened from sleep state when activity of USB device is detected. [Disabled] Disables this function. fResume From S3/S4/S5 by PS/2 Mouse [Disabled] Enables or disables the system wake up by PS/2 mouse.

  • Page 51: Security

    AUTO CLR_CMOS [Disabled] Enables or disables the CMOS data to be resumed automatically when the booting process hang-up over 5 seconds. Boot Mode Select [LEGACY+UEFI] Sets the system boot mode from legacy or UEFI architecture depending on OS installation requirement. This item will become un-selectable and will be configured automatically by BIOS when Windows 8.1/ 10 WHQL Support is enabled.

  • Page 52: Save & Exit

    Trusted Computing Sets TPM (Trusted Platform Module) function. fSecurity Device Support [Enabled] Enables or disables the TPM function to build the endorsement key for accessing the system. fDevice select [Auto] Selects TPM 1.2 or TPM 2.0 technology for installed TPM device. If set to Auto, BIOS will detect it automatically.
  • Page 53 Important Overclocking your PC manually is only recommended for advanced users. Overclocking is not guaranteed, and if done improperly, it could void your warranty or severely damage your hardware. OC Explore Mode [Normal] Enables or disables to show the normal or expert version of OC settings. [Normal] Provides the regular OC settings in BIOS setup.
  • Page 54 CPU Ratio Mode [Dynamic Mode]* Selects the CPU Ratio operating mode. This item will appear when you set the CPU ratio manually. [Fixed Mode] Fixes the CPU ratio. [Dynamic Mode] CPU ratio will be changed dynamically according to the CPU loading.
  • Page 55 fDynamic Frequency Control [Disabled] When enabled, it allows CPU to run different base clock frequency steps dynamically according to CPU loading. This item will be disabled when the Dynamic Frequency Search is enabled. fDynamic Frequency Search [Disabled] Enables or disables the base clock optimization for CPU. This item will be disabled when the Dynamic Frequency Control is enabled.
  • Page 56 Memory Try It ! [Disabled] It can improve memory compatibility or performance by choosing optimized memory preset. Advanced DRAM Configuration Press Enter to enter the sub-menu. User can set the memory timing for each/ all memory channel. The system may become unstable or unbootable after changing memory timing.
  • Page 57 CPU Specifications Press Enter to enter the sub-menu. This sub-menu displays the information of installed CPU. You can also access this information menu at any time by pressing [F4]. Read only. fCPU Technology Support Press Enter to enter the sub-menu. The sub-menu shows the key features of installed CPU.
  • Page 58 fIntel Virtualization Tech [Enabled] Enables or disables Intel Virtualization technology. [Enabled] Enables Intel Virtualization technology and allows a platform to run multiple operating systems in independent partitions. The system can function as multiple systems virtually. [Disabled] Disables this function. fIntel VT-D Tech [Disabled] Enables or disables Intel VT-D (Intel Virtualization for Directed I/O) technology.
  • Page 59 fPackage C State limit [Auto] This item allows you to select a CPU C-state level for power-saving when system is idle. The options of C-state depend on the installed CPU. This item appears when Intel C-State is enabled. fCFG Lock [Enabled] Lock or un-lock the MSR 0xE2[15], CFG lock bit.

  • Page 60: M-Flash

    M-FLASH provides the way to update BIOS with a USB flash drive. Please download the latest BIOS file that matches your motherboard model from MSI website, save the BIOS file into your USB flash drive. And then follow the steps below to update BIOS.

  • Page 61: Oc Profile

    OC PROFILE Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press Enter to enter the sub-menu. fSet Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Name the current overclocking profile. fSave Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Save the current overclocking profile.

  • Page 62: Hardware Monitor

    HARDWARE MONITOR Current Temperature & Speed information Fan control field Setting Buttons Voltage display Current Temperature & Speed information Shows the current CPU temperature, system temperature and fans' speeds. Fan control field This motherboard provides a fan speed control feature call Smart Fan. Please check the Smart Fan Mode box to enable the Smart Fan.

  • Page 63: Software Description

    7/ 8.1/ 10. ® Installing Drivers Start up your computer in Windows 7/ 8.1/ 10. ® Insert MSI Driver Disc into your optical drive. ® The installer will automatically appear and it will find and list all necessary drivers. Click Install button.

  • Page 64: Command Center

    COMMAND CENTER COMMAND CENTER is an user-friendly software and exclusively developed by MSI, helping users to adjust system settings and monitor status under OS. With the help of COMMAND CENTER, making it possible to achieve easier and efficient monitoring process and adjustments than that under BIOS. In addition, the COMMAND CENTER can be a server for mobile remote control application.
  • Page 65 CPU Fan CPU Fan control panel provides Smart mode and Manual Mode. You can switch the control mode by clicking the Smart Mode and Manual Mode buttons on the top of the CPU Fan control panel. Manual Mode - allows you to manually control the CPU fan speed by percentage.
  • Page 66 Option Buttons - Advanced When click the Advanced button, The Voltage, Fan and DRAM icons will appear. Voltage - allows you to adjust advanced voltage values of CPU and chipset. Fan - allows you to control the system fans speed. DRAM - shows the current Advanced DRAM parameters, and allows you to change the settings by selecting values from the drop-down menu on the right hand side.
  • Page 67 Find the IP address on the SoftAP Management Setting area, and enter the IP address on your MSI COMMAND CENTER APP to link your system. ® Press Refresh on the MSI COMMAND CENTER APP to verify that monitoring and ® OC functions are working properly.

  • Page 68: Live Update 6

    LIVE UPDATE 6 LIVE UPDATE 6 is an application for the MSI system to scan and download the latest ® drivers, BIOS and utilities. With LIVE UPDATE 6, you don’ t need to search the drivers on websites, and don’ t need to know the models of motherboard and graphics cards.

  • Page 69: Total Installer

    Choose Automatic scan, system will automatically scan all the items and search for the latest update files. Or you can choose Manual scan and select the items you wish to scan. Click the Scan button at the bottom. It may take several moments to complete the process.

  • Page 70: Gaming App

    GAMING APP GAMING APP is an application designed to quickly control your system for improving gaming performance. Setting Button Information Button Display Mode Button CPU Frequency GPU Frequency Gaming Function Full Speed GPU Fan Buttons Control Mode Buttons Setting Button - allows you to run GAMING APP when Windows starts. Information Button - shows the information of this application.
  • Page 71 OSD Setting Panel Use the OSD setting panel to specify information within on-screen display (OSD). Apply Button - allows you to accept selections. LED Effect LED Effect allows you to control LED lights on your motherboard. All LED - controls all LEDs on your motherboard. Each LED - separately controls each segment of LEDs on your motherboard.
  • Page 72 Login Keys - provides hotkey login function. ƒ MSI Smart Keys - allows you to define hotkeys for MSI Smart Keys. ƒ Hotkey Manager - allows you to create, edit and delete hotkeys. Current Hotkeys - shows all existing hotkeys.
  • Page 73 Mouse Master Mouse Master provides mouse macro function. You can also use it to change DPI of your mouse. DPI Setting Delay Time Default Button Macro Hot Key DPI Hot Key Mouse Action Action List Test Area Edit Buttons Clear Load Button Button Save Button...

  • Page 74: M-Cloud

    M-CLOUD M-CLOUD is an application of MSI network sharing. It allows you to turn your computer into Wi-Fi AP. It can also transfer files between your MSI computers. Soft AP ON/OFF History Server Information Users & Permissions Server Local Directory...
  • Page 75 Setting up Soft AP (optional) The Soft AP function is only available for the motherboard with the built-in WiFi module. You can share your network connection to your smartphones, tablets and laptops with the Soft AP function. Important You must have an active network connection and an installed Wi-Fi moudle to enable Soft AP.

  • Page 76: Managing User Accounts

    Managing User Accounts This section describes how to create/ remove a user account and configure individual access permissions. Click the Users & Permissions button and the Users & Permissions Management window will pop up. Click Add Account button create a new user account. Fill in user’...

  • Page 77: Ramdisk

    RAMDISK RAMDISK creates a virtual RAM drive using the available memory in your computer, the performance of the RAMDISK is faster than an SSD and hard drive. RAMDISK allows you to store any temporary information on it. Furthermore, using the RAMDISK will extend your SSD’...

  • Page 78: Gaming Lan Manager

    GAMING LAN MANAGER GAMING LAN MANAGER is an utility for traffic shaping for the Windows 7/ 8.1/ 10. It can keep your internet fast during heavy upload/ download and improve your ping for online games. If your motherboard has a Wi-Fi module, GAMING LAN MANAGER provides virtual access point function for traffic shaping for your mobile devices.
  • Page 79 Speed Testing The speed testing is used to optimize bandwidth usage. To test the Upload and Down- load speed, please follow the steps below: Click the Network Test block in GAMING LAN MANAGER. Click Test Network Speed button. The test takes several minutes to test your network speed.

  • Page 80: Intel ® Extreme Tuning Utility

    Intel Extreme Tuning Utility ® Intel Extreme Tuning Utility (Intel XTU) is a simple overclocking software for you to ® tune, test and monitor your system. Tuning Controls Views Settings Help System Navigation Table System System Monitors Graphs Views Settings Help Views - toggles to switche between Monitoring and Show All view.

  • Page 81: Raid Configuration

    RAID Configuration Below are the different types of a RAID. RAID 0 breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.
  • Page 82 Creating s RAID Volume Select option Create RAID Volume and press Enter key. The following screen appears. CREATE VOLUME MENU Name : Volume0 RAID Level : RAID1(Mirror) Disks : Select Disks Strip Size : N / A Capacity : XXX.X GB Create Volume HELP RAID 1 : Mirrors data (redundancy) .
  • Page 83 Removing a RAID Volume Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost. Important If your system currently boots to RAID and you delete the RAID volume in the IRSTe , your system will become unbootable.

  • Page 84: Resetting Disks To Non-Raid

    Resetting Disks to Non-RAID Select option Reset Disks to Non-RAID from the main menu screen and press Enter to delete the RAID volume and remove any RAID structures from the drives. Use the Space key to select the disks and press Enter key. A confirmation sentence will appear below, and then press Y key to accept the selection MAIN MENU Reset Disk to Non-RAID...

  • Page 85: Troubleshooting

    Troubleshooting Lost BIOS password Before sending the motherboard for RMA repair, try to go over troubleshooting Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in symptoms as mentioned below. the BIOS.

  • Page 86: Regulatory Notices

    EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the This device complies with part 15 of the FCC Rules. Council), MSI provides the information of chemical Operation is subject to the following two conditions: substances in products at: (1) This device may not cause harmful interference, and http://www.msi.com/html/popup/csr/evmtprtt_pcm.
  • Page 87 MSI will comply with the product take entregar a una empresa autorizada para la recogida de back requirements at the end of life of MSI-branded estos residuos.

  • Page 88: 日本Jis C 0950材質宣言

    MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita.
  • Page 89 Alternatively, please try the following help resources for further guidance. y Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com y Register your product at: http://register.msi.com...
