M18 SIC36
M18 SIC60
M18 SISH
Original instructions
Originalbetriebsanleitung
Notice originale
Istruzioni originali
Manual original
Oorspronkelijke gebruiksaanwijzing
Original brugsanvisning
Original bruksanvisning
Bruksanvisning i original
Alkuperäiset ohjeet
Πρωτότυπο οδηγιών χρήσης
Orijinal işletme talimatı
Původním návodem k používání
Pôvodný návod na použitie
470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 1
470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 1
Instrukcją oryginalną
Eredeti használati utasítás
Izvirna navodila
Originalne pogonske upute
Instrukcijām oriģinālvalodā
Originali instrukcija
Algupärane kasutusjuhend
Оригинальное руководство по эксплуатации
Оригинално ръководство за експлоатация
Instrucţiuni de folosire originale
Оригинален прирачник за работа
Оригінал інструкції з експлуатації
اﻟﺗﻌﻠﯾﻣﺎت اﻷﺻﻠﯾﺔ
01.07.2020 06:50:42
01.07.2020 06:50:42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Milwaukee M18 SIC36
Summary of Contents for Milwaukee M18 SIC36

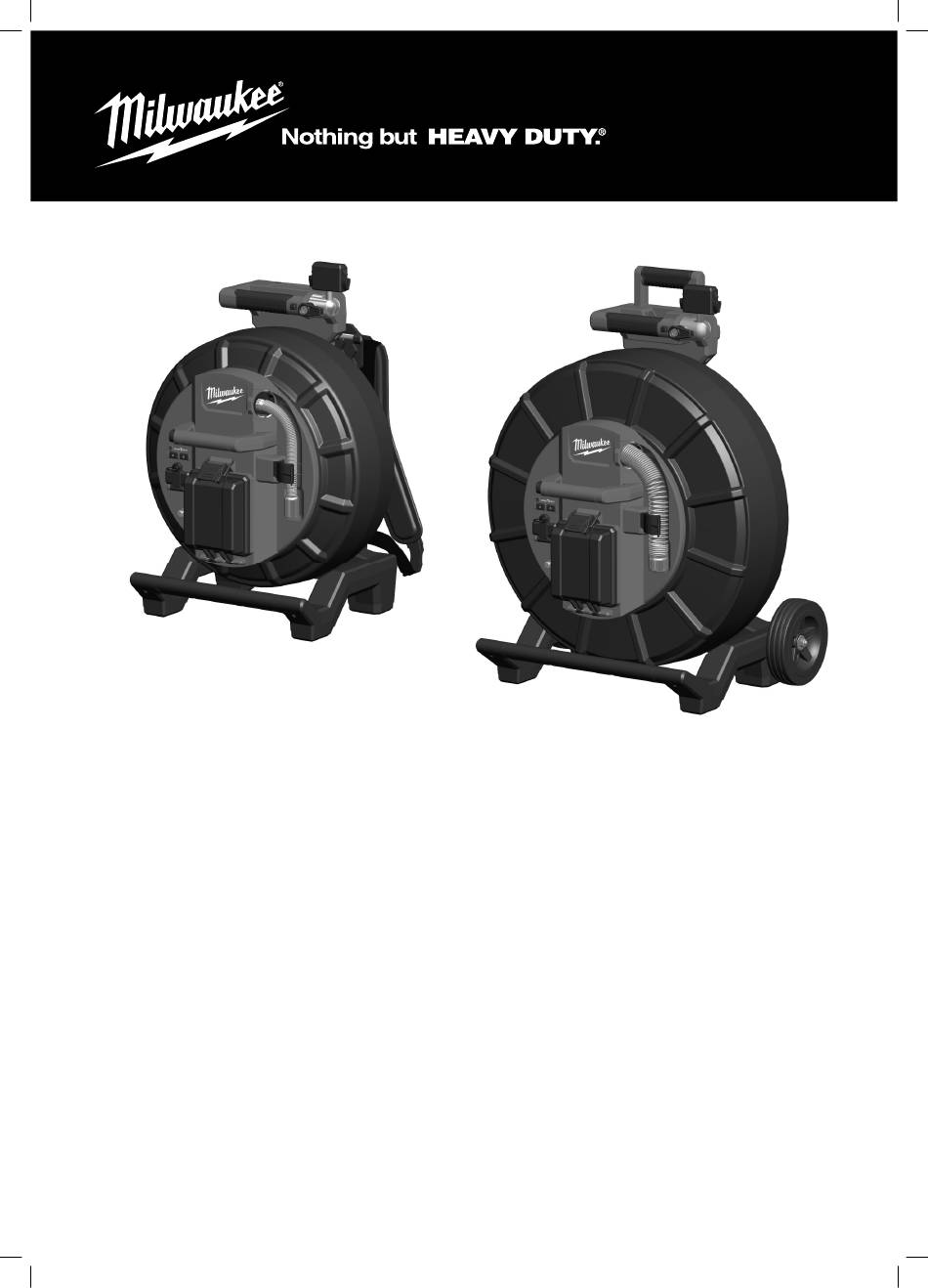

- Page 1 M18 SIC36 M18 SIC60 M18 SISH Original instructions Instrukcją oryginalną Originalbetriebsanleitung Eredeti használati utasítás Notice originale Izvirna navodila Istruzioni originali Originalne pogonske upute Manual original Instrukcijām oriģinālvalodā Oorspronkelijke gebruiksaanwijzing Originali instrukcija Original brugsanvisning Algupärane kasutusjuhend Original bruksanvisning Оригинальное руководство по эксплуатации...
-
Page 2: Table Of Contents
2.13 Factory reset ............................19 2.14 System update ............................. 20 PIPELINE INSPECTION REELS .............................22 3.1 Overview PIPELINE INSPECTION REEL M18 SIC36 ..................22 3.2 Overview PIPELINE INSPECTION REEL M18 SIC60 ..................23 3.3 Installing the backpack plate ..........................24 3.4 Removing backpack plate ..........................25 3.5 Mounting the WIRELESS MONITOR M18SIM .....................26... -
Page 3: General Informations
Do not try to replace the battery pack if the surface of the instrument is wet. Do not dispose of used battery packs in the household refuse or by burning them. Milwaukee Distributors off er to retrieve old batteries to protect our environment. -
Page 4: Technical Data
The CONTROL HUB M18 SISH is the brain of the pipeline inspection system. The WIRELESS MONITOR M18SIM or tablet running the Milwaukee® pipeline inspection app connects to the CONTROL HUB M18 SISH to receive the recording video and captured pictures. Both are stored in the CONTROL HUB M18 SISH internal drive. -
Page 5: One-Key
Check with forwarding company for further advice 1.10 Maintenance Use only Milwaukee accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses). -
Page 6: Symbols
1.11 Symbols CAUTION! WARNING! DANGER! Remove the battery pack before starting any work on the machine. Please read the instructions carefully before starting the machine. Wear gloves! Always wear goggles when using the machine. Do not dispose electric tools, batteries/rechargeable batteries together with household waste material. -
Page 7: Control Hub M18 Sish
2 CONTROL HUB M18 SISH 2.1 Overview CONTROL HUB M18 SISH 1 Spring locking clip - holds the spring and camera in place during transportation 2 Spring recess - keeps the spring and camera in place during transportation and storage. 3 Cable guide - feed the spring and push cable through the guide before locking the CONTROL HUB In place 4 Handle 5 Lock release button - push to unlock the CONTROL HUB assembly from the PIPELINE INSPECTION REEL... -
Page 8: Installing And Removing Battery Pack
2.2 Installing and removing battery pack click ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 8 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 8 01.07.2020 06:50:44 01.07.2020 06:50:44... -
Page 9: Checking Battery Capacity
2.3 Checking battery capacity 78-100 % 55-77 % 33-54 % 10-32 % < 10 % ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 9 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 9 01.07.2020 06:50:47 01.07.2020 06:50:47... -
Page 10: Installing Control Hub M18 Sish
2.4 Installing CONTROL HUB M18 SISH click ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 10 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 10 01.07.2020 06:50:48 01.07.2020 06:50:48... -
Page 11: Removing Control Hub M18 Sish
2.5 Removing CONTROL HUB M18 SISH ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 11 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 11 01.07.2020 06:50:51 01.07.2020 06:50:51... -
Page 12: Power On/Off
2.6 Power on/off 2 sec ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 12 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 12 01.07.2020 06:50:54 01.07.2020 06:50:54... -
Page 13: Monitor Connection
The WIRELESS MONITOR can connect to the PIPELINE INSPECTION SYSTEM via Wi-Fi or USB-C cable and will be immediately ready for use. In order to use a tablet or smartphone, the MILWAUKEE PIPELINE INSPECTION APP must fi rst be installed on that device. -
Page 14: Usb Ports
2.8 USB Ports USB-A USB-C USB A - Day use port. It allows for direct recording of video and picture fi les or transferring fi les from the CONTROL HUB internal drive. - Perform fi rmware updates to CONTROL HUB. USB C - Connecting the WIRELESS MONITOR M18SIM to the CONTROL HUB bypassing a WI-FI connection. -
Page 15: Grounding Post
2.9 Grounding post The grounding post must be used while using the LINE TRACE feature to trace push cable. The CONTROL HUB must be grounded to close the current loop to send out a good locate signal. Use the supplied grounding cable assembly with ground stake to ground the CONTROL HUB to earth. -
Page 16: Distance Counter Set
2.10 Distance counter set As the PIPELINE INSPECTION REEL rotates, the distance of push cable deployed is shown on the status bar of the WIRELESS MONITOR M18SIM. Press the distance reset button to reset the distance count. CAMERA LIGHT 17/04/2020 13:30:45 0.5M 0.5M MANAGE JOBS... -
Page 17: Camera Test Port
2.11 Camera test port If ever any camera head problems occur, it this possible to test the camera on the test port. CAMERA LIGHT 17/04/2020 13:30:45 MANAGE JOBS 2019/05/10 6 FILES CAMERA LIGHT MANAGE JOBS 2019/05/10 6 FILES NO CAMERA CONNECTED ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 17... -
Page 18: Formatting The Internal Drive And Thumb Drive
2.12 Formatting the internal drive and thumb drive This setting allows the formatting of the CONTROL HUB M18 SISH's Internal 500GB Drive or Thumb Drive. The system requires that Thumb Drives be formatted in the FAT32 fi le system. 1. Go to SETTINGS ... -
Page 19: Factory Reset
2.13 Factory reset Performing a factory reset will reset the CONTROL HUB M18 SISH to the factory defaults. In the CONTROL HUB M18 SISH, the functionality that will reset to the factory default will be: - LABELS will be erased - VIDEO and IMAGE settings back to default :1080P - The COMPANY NAME is removed - SONDE frequency back to default... -
Page 20: System Update
Firmware updates can be performed with the WIRELESS MONITOR M18SIM M18 SIM or tablet running the MILWAUKEE® PIPELINE INSPECTION APP. 1. Turn on both the CONTROL HUB M18 SISH and WIRELESS MONITOR M18SIM M18 SIM or tablet running the MILWAUKEE®... - Page 21 8. A progress indicator will appear showing the progress of the update. The Control Hub is updating... 9. A confi rmation message will appear when the update is complete. Select OK to reboot the system. The Control Hub was successfully updated and it will be restarted.
-
Page 22: Pipeline Inspection Reels
3 PIPELINE INSPECTION REELS 3.1 Overview PIPELINE INSPECTION REEL M18 SIC36 1 Horizontal position feet 2 WIRELESS MONITOR M18SIM/tablet mount connector 3 WIRELESS MONITOR M18SIM rotation lock 4 WIRELESS MONITOR M18SIM tilt lock 5 Handle 6 Push cable drum and push cable... -
Page 23: Overview Pipeline Inspection Reel M18 Sic60
3.2 Overview PIPELINE INSPECTION REEL M18 SIC60 1 Horizontal position feet 2 Retractable handle (shown in the lowered position) 3 Retractable handle lock and release button 4 WIRELESS MONITOR M18SIM mount/tablet mount connector 5 WIRELESS MONITOR M18SIM rotation lock 6 WIRELESS MONITOR M18SIM tilt lock 7 Handle 8 Push cable drum and push cable 9 Vertical position feet... -
Page 24: Installing The Backpack Plate
3.3 Installing the backpack plate The PIPELINE INSPECTION REEL M18 SIC36 comes with a backpack mounting plate which allows the reel to be carried as a backpack. This is useful for transporting the small reel to and from the job site. This is extremely helpful for climbing stairs or ladders. -
Page 25: Removing Backpack Plate
3.4 Removing backpack plate ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 25 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 25 01.07.2020 06:51:21 01.07.2020 06:51:21... -
Page 26: Mounting The Wireless Monitor M18Sim
3.5 Mounting the WIRELESS MONITOR M18SIM click ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 26 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 26 01.07.2020 06:51:22 01.07.2020 06:51:22... -
Page 27: Adjusting The Wireless Monitor M18Sim
3.6 Adjusting the WIRELESS MONITOR M18SIM ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 27 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 27 01.07.2020 06:51:23 01.07.2020 06:51:23... -
Page 28: Using The Pipeline Inspection Reel
3.7 Using the PIPELINE INSPECTION REEL Check push cable for wear - visually inspect the push cable for cuts, kinks, and abrasions as it is retrieved back into the cable cage. If the jacket is cut or worn to the point that the yellow or white kevlar braid can be seen, then it is time to replace the push cable. -
Page 29: Camera Head Assembly
3.8 Camera head assembly Avoid touching the green circuit board or gold pins on the spring assembly or camera head with bare hands. Touching these will transfer oils from the fi ngers to these components, which may lead to premature corrosion. Wear clean, dry rubber gloves if possible. -
Page 30: Spring Assembly
3.9 Spring assembly Avoid touching the green circuit board or gold pins on the spring assembly or camera head with bare hands. Touching these will transfer oils from the fi ngers to these components, which may lead to premature corrosion. Wear clean, dry rubber gloves if possible. -
Page 31: Camera Protective Cover
3.10 Camera protective cover Protective Covers – are covers that fi t over the 25mm and 34mm camera heads. The protective covers are provided with all PIPELINE INSPECTION REEL systems or replacement camera heads. Skids - are devices that attach to the spring assembly to keep the camera head off the fl oor of the pipe and prevent the camera head from making direct contact with the pipe. -
Page 32: Camera Skids
3.11 Camera skids There are two skids available for both the 25mm and 34mm camera heads. A small 75 mm version and a medium 100 mm version. 25mm Camera Skids 34mm Camera Skids ENGLISH 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 32 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 32 01.07.2020 06:51:41 01.07.2020 06:51:41... -
Page 33: Service & Support
3.12 Service & support If any part of your PIPELINE INSPECTION SYSTEM should require service, you will fi nd Milwaukee Tool's service page and support number in the SERVICE & SUPPORT directory. Go to SETTINGS SERVICE & SUPPORT SETTINGS SCREEN SETTINGS DATE &... - Page 34 Copyright 2020 Techtronic Industries GmbH Max-Eyth-Straße 10 71364 Winnenden Germany +49 (0) 7195-12-0 (07.20) www.milwaukeetool.eu 4931 4704 23 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 34 470 423 - M18SIC36, M18SIC60, M18SISH - GB Print.indd 34 01.07.2020 06:51:47 01.07.2020 06:51:47...
