K N O C K O U T Q U I C K G U I D E
®
™

Advertisement

loading
Need help?

Need help?

Do you have a question about the FORCE LOGIC M18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Milwaukee FORCE LOGIC M18

Summary of Contents for Milwaukee FORCE LOGIC M18

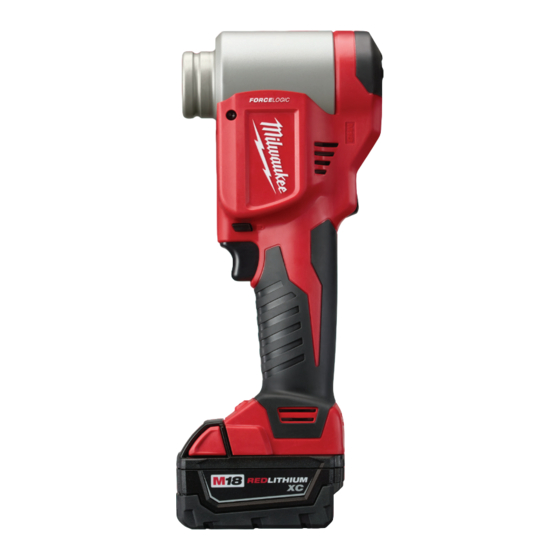

  • Page 1 MILWAUKEE ® KNOCKOUT SYSTEM THE EASIEST WAY TO PUNCH FORCE LOGIC ™ 10 Ton Knockout Tool (2676-20) K N O C K O U T Q U I C K G U I D E...
  • Page 2 5. Pump or power knockout tool 6. Unthread and remove material Milwaukee Improves Every Step ® 1. Measure panel and mark box Crosshairs match dies. Milwaukee tapes and Inkzall ® ® 2. Drill pilot holes Milwaukee Step Drill Bit for cordless drill.
  • Page 3 Selecting the Right Punches, Dies & Draw Studs HAND RATCHET * RATCHET USE DIES PUNCHES DRAW STUDS Nominal Nominal 3/8" 3/4" Conduit Hole Size Hole Size Milwaukee Description Milwaukee Description (7/16" Pilot (7/8" Pilot ® ® Size (in) (mm) Hole) Hole) 1/2"...

  • Page 4: Compatibility Charts

    ® ® 4" 49-16-2685 adaptor 49-16-2685 **COMPETITIVE PUNCHES MUST BE USED IN TRADITIONAL KNOCKOUT FORM. MILWAUKEE QUICK ® CONNECT ALIGNMENT SYSTEM IS FOR USE WITH EXACT PUNCHES AND DIES ONLY **COMPETITIVE DRAW STUDS ARE RECOMMENDED FOR USE WITH COMPETITIVE PUNCHES AND DIES...
  • Page 5 YES + MILWAUKEE YES + MILWAUKEE ® ® THIS RANGE 3-1/2" adaptor 49-16-2684 adaptor 49-16-2684 YES + MILWAUKEE YES + MILWAUKEE ® ® 4" adaptor 49-16-2684 adaptor 49-16-2684 *** USE MANUFACTURER SPECIFIC DRAWS STUDS WITH MILWAUKEE PUNCHES AND DIES FOR COMPATIBILITY ®...
  • Page 6 Tool System FAQs Do our punches/dies work with competitive knockout tools? , verify that both the draw stud is the right size and that the correct adaptor is used where needed before punching, but Milwaukee punches and ® dies can be sold as an upgrade set for people with other knockout tools.
  • Page 8 MILWAUKEE ® KNOCKOUT SYSTEM Each product within the Milwaukee Knockout system ® was built on the principles of reducing the tedious steps of hole making, improving the speed of the process, and limiting the fatigue of the contractor. The result is a group of tools and accessories that redefine accuracy, durability and productivity for the electrical contractor.
