Summary of Contents for Subzero WSS-UHF

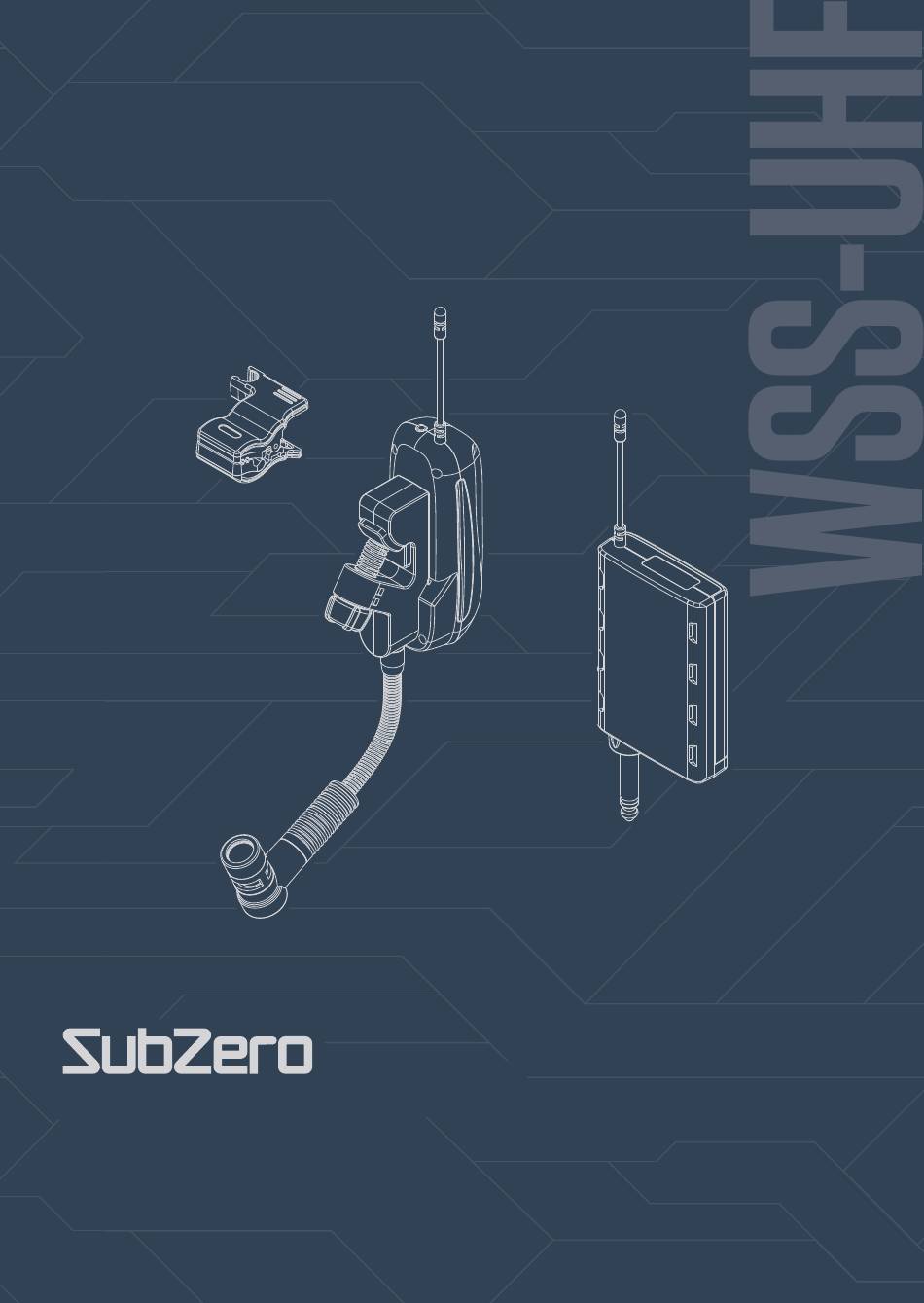

- Page 1 WIRELESS SAXOPHONE MICROPHONE USER MANUAL...
- Page 2 WARNING! WAARSCHUWING! Do not open cover. No user-serviceable parts inside. Refer servicing to Maak de behuizing niet open. Dit toestel bevat geen onderdelen die qualified service personnel door de gebruiker kunnen worden vervangen. Laat onderhoud over aan Do not place the product in a location near a heat source such as bevoegd onderhoudspersoneel.
- Page 3 WARNUNG! OSTRZEŻENIE! Öffnen Sie nicht das Gehäuse. Im Inneren befinden sich keine vom Nie otwierać pokrywy. W środku nie ma części nadających się do naprawy Benutzer zu wartenden Teile. Überlassen Sie Wartungsarbeiten przez użytkownika. Prosimy pozostawić serwis dla wyszkolonego qualifiziertem Fachpersonal. personelu.
- Page 4 OPOZORILO! Ne odpirajte pokrova. V notranjosti ni nobenih delov, ki jih uporabnik lahko sam popravlja. Popravilo prepustite usposobljenemu osobju Ne postavljajte izdelka na lokacijo v bližini vira toplote, kot je radiator, ali na območje, ki je izpostavljeno neposredni sončni svetlobi, pretiranem prahu, mehanskim tresljajem ali udarcem Izdelek ne sme biti izpostavljen kapljanju ali brizganju in nobeni predmeti, napolnjeni z vodo, kot so vaze, se ne smejo postaviti na izdelek...
-
Page 5: Box Contents
INTRODUCTION Thank you for purchasing the SubZero WSS-UHF, Wireless Saxophone Microphone. To get the most out of your product, please read this manual carefully. BOX CONTENTS • Saxophone Microphone x1 • Transmitter x1 • Receiver x1 • Additional Instrument Clip x1 •... - Page 6 FUNCTIONS - TRANSMITTER & MIC 1. MICROPHONE CAPSULE 5. IR WINDOW Captures sound from saxophones or brass When pairing the channels, please move the instruments. Adjust the gooseneck to find the IR window towards the receiver’s IR window to sweet spot. complete the pairing.
- Page 7 FUNCTIONS - RECIEVER 1. 6.35MM MONO JACK OUT 7. LITHIUM BATTERY Plug this 6.35mm connector into an audio input The rechargeable lithium battery powers the on your mixer or PA system. receiver unit. 2. ON/OFF SWITCH 8. ANTENNA Use this switch to turn the receiver on/off. The receiver uses this antenna to receive the wireless signal from the transmitter.
-
Page 8: Operation
OPERATION HOW TO ASSEMBLE THE CLIP, MICROPHONE & TRANSMITTER: 1. Slide the microphone unit into the transmitter slot; 2. Loosen the plastic screw on the microphone unit. you will hear a “click” when it’s properly inserted. 3. Slide the padded clip into the plastic screw; you 4. -
Page 9: Channels Settings
86340MHz 86380MHz 86420MHz CH05 CH06 CH07 CH08 The WSS-UHF wireless system has 16 channels to choose from. To select different wireless channels, open the battery cover and use the 4 switches on 86460MHz 86320MHz 86360MHz 86400MHz the channel panel. Each combination of switches... -
Page 10: Specifications
SPECIFICATIONS RECEIVER Carrier Frequency ......UHF 863-865 MHz Dynamic Range ......> 96 dB Distortion Factor ......< 0.3% Frequency Response ....30 Hz - 20KHz + 2 dB S/N Ratio ........> 96 dB Receiving Sensitivity ....-95 dBm Audio Output Level ....400 mV Battery Life .........Up to 4 hours Power Adaptor ......USB-C DC 5V 500mA TRANSMITTER Carrier Frequency ......UHF 863-865 MHz... - Page 12 WWW.GEAR4MUSIC.COM KETTLESTRING LANE | YORK | YO30 4XF | UNITED KINGDOM LAHNSTRAßE 27 | 45478 MÜLHEIM AN DER RUHR | DEUTSCHLAND If you have any more questions about this product, please do not hesitate to contact the Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com...
