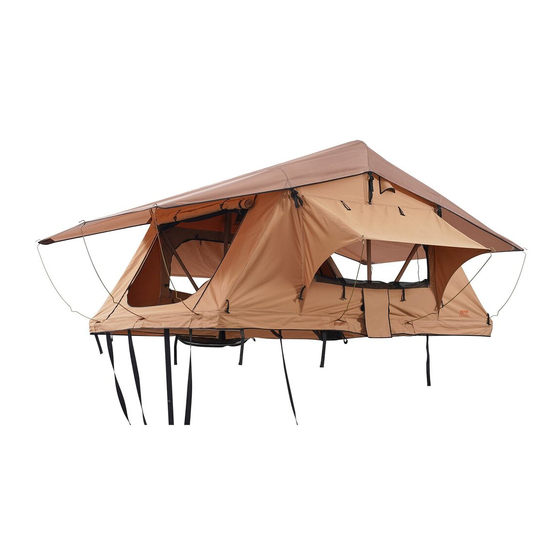

ROOFTOP TENT
MODEL: LY-RD0619/ LY-RD0614
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR LY-RD0619
Summary of Contents for VEVOR LY-RD0619
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ROOFTOP TENT MODEL: LY-RD0619/ LY-RD0614 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 INTRODUCTION WARNING: PLEASE READ AND UNDERSTAND ALL DETAILS BEFORE ASSEMBLY AND USE OF THE ROOFTOP TENT. WARNING! If you have any back, knee or any other health complications, do not attempt to mount the roof tent on your vehicle. Your vehicle must have a roof rack or cross bars installed in order to mount ...
- Page 4 PART NAME PICTURE Tent Track Aluminum Ladder Steel Bar Pole 10/8 External Hexagonal Screw M8 * 55 Anti Loosening Nut M8 Flat Gasket 8 Track Cover Long Hole Steel Sheet Slider Open End Wrench Ladder Seat External Hexagonal Screw M6 * 40 - 3 -...
-
Page 5: Installation Precautions
External Hexagonal Screw M6 * 20 Anti Loosening Nut M6 Plastic Gasket Flat Washer 6 Large Flat Gasket 6 * 50 Double Hook Elastic Rope Tool Bag Reinforcement Bag Outer Cover INSTALLATION PRECAUTIONS Direction of Opening Before you fit your new rooftop tent to your vehicle, you will need to decide whether you wish to have the rooftop tent open to the back or to the side of your vehicle. - Page 6 A. “Off the Back” For most larger size ( SUV) vehicles opening “off the back” is preferable. The advantages of this orientation are: Leaves extra roof space for additional storage. With the tent open you will gain weather protection from the tent above ...
-
Page 7: Installation Methods
The mounting extrusions bolt to the base of the tent at right angles to the roof rack or roof bars (across the width of the tent base). INSTALLATION METHODS Model:LY-RD0619/ LY-RD0614 Step 1: Unfasten the cover strap and then remove the cover from the tent by unfastening the Velcro around the edge and then carefully fold the cover over to the side. - Page 8 Step 3: Slide out the ladder until locking pins engage. The ladder can now be used as a lever to help open the tent. Carefully fold open tent. (Fig D, E, F) Rest the ladder on the ground. Note: if ladder is too vertical you will require a ladder extension.
- Page 9 Step 5: You can now enter your tent. Install door/window cover rods. Line up the grommet on the base of the tent with the predrilled hole. (Fig J) Slide base of rod through grommet and into base of tent, make sure rod is installed completely.
- Page 10 Features A. The tent features red nylon grab handle straps for assistance on getting in and out. ( Fig M) Always use caution when going up and down ladder. B. The screens and covers can be rolled up and held up using the attached cords. ( Fig N, O) C.
- Page 11 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX E-CrossStu GmbH...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
