Pulsar MOUSE 07 Quick Start Manual

Dual element digital motion detector (dual pyroelement + microwave)

Advertisement

The exclusive distributor of AMC products
MOUSE 07
Dual Element Digital Motion Detector (dual
pyroelement + microwave)

1. Introduction

The MOUSE 07 is a dual element digital motion detector with creep zone protection. With its
advanced signal processing algorithms and dual detection technology (PIR and MW) it is characterized by
very stable operation and low rate of false alarms.
Z Advanced digital temperature compensation enables operation over a wide temperature range. The
range of the MOUSE 07 detector is up to 14 meters with horizontal coverage exceeding 90 degrees. The area
of the sensor operation is shown in the Figure 5.

2. Installation of the detector

The detector should be mounted by a qualified installer, holding relevant permits and licenses (applicable
and required for a given country) for Intrusion Detection Systems.
The latch system used in the enclosure of the detector eliminates the need for screw connections, so that
the detector installation is simple and does not take much time.
Follow the basic rules for the installation of Intrusion Detection Systems (pay attention, among others, not
to soil or damage the pyroelement, do not point the detector towards strong light sources).
The optimum mounting height of the MOUSE 07 detector is 2 meters).

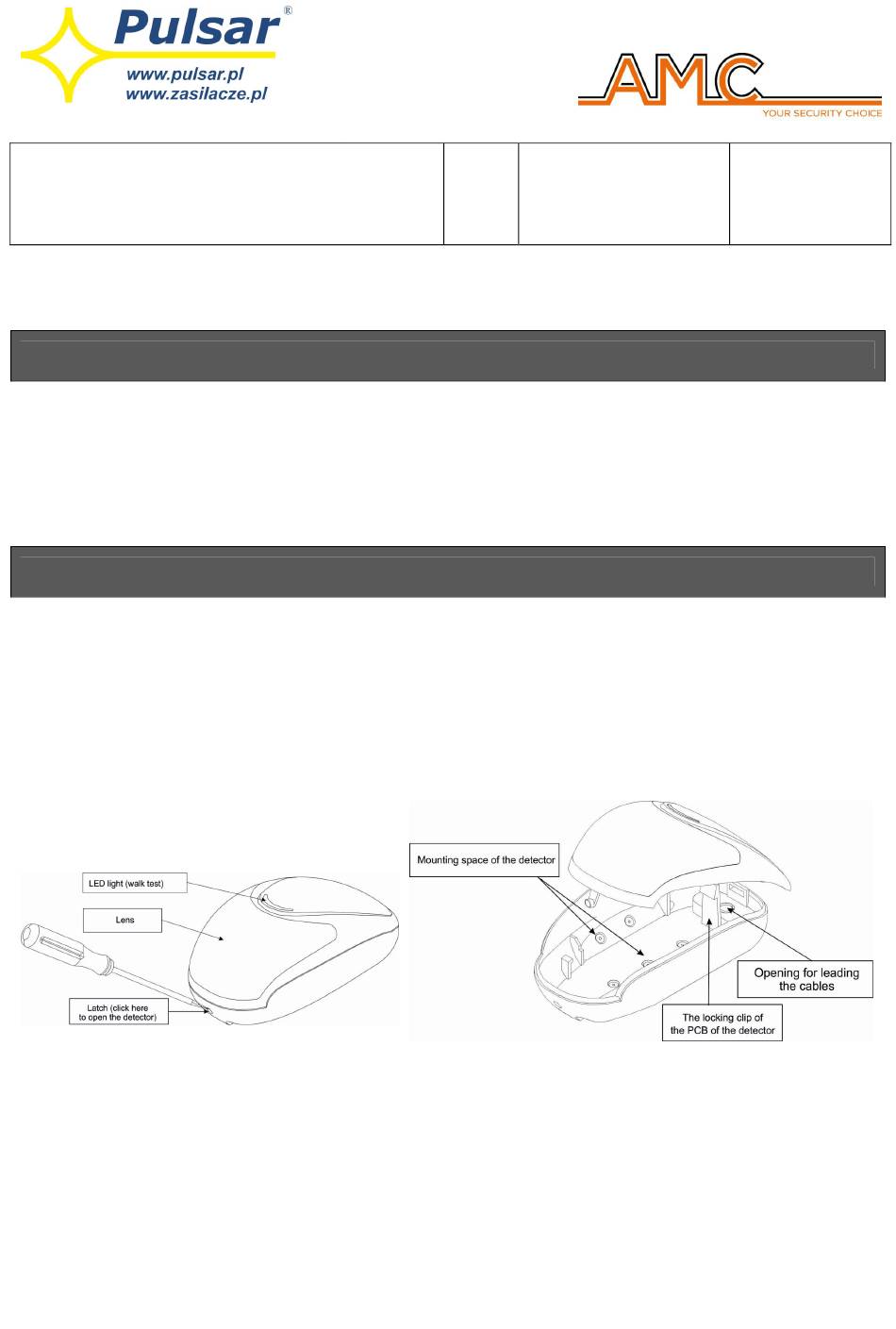

Main view
Edition: 2 from 07.03.2014
Supersedes: 1 from 10.02.2014
Fig. 1
CODE
In accordance with the
MU07
EN 50131-2-4 standard
Fig. 2
Inside view
MANUAL EN
1
