ADVANCED DETECTION SYSTEM
ADVANCED DETECTION SYSTEM
OPERATION MANUAL
MANUALE D'USO
WWW.K-KARP.COM
WWW.K-KARP.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADS MINI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar ADS MINI

Summary of Contents for Pulsar ADS MINI

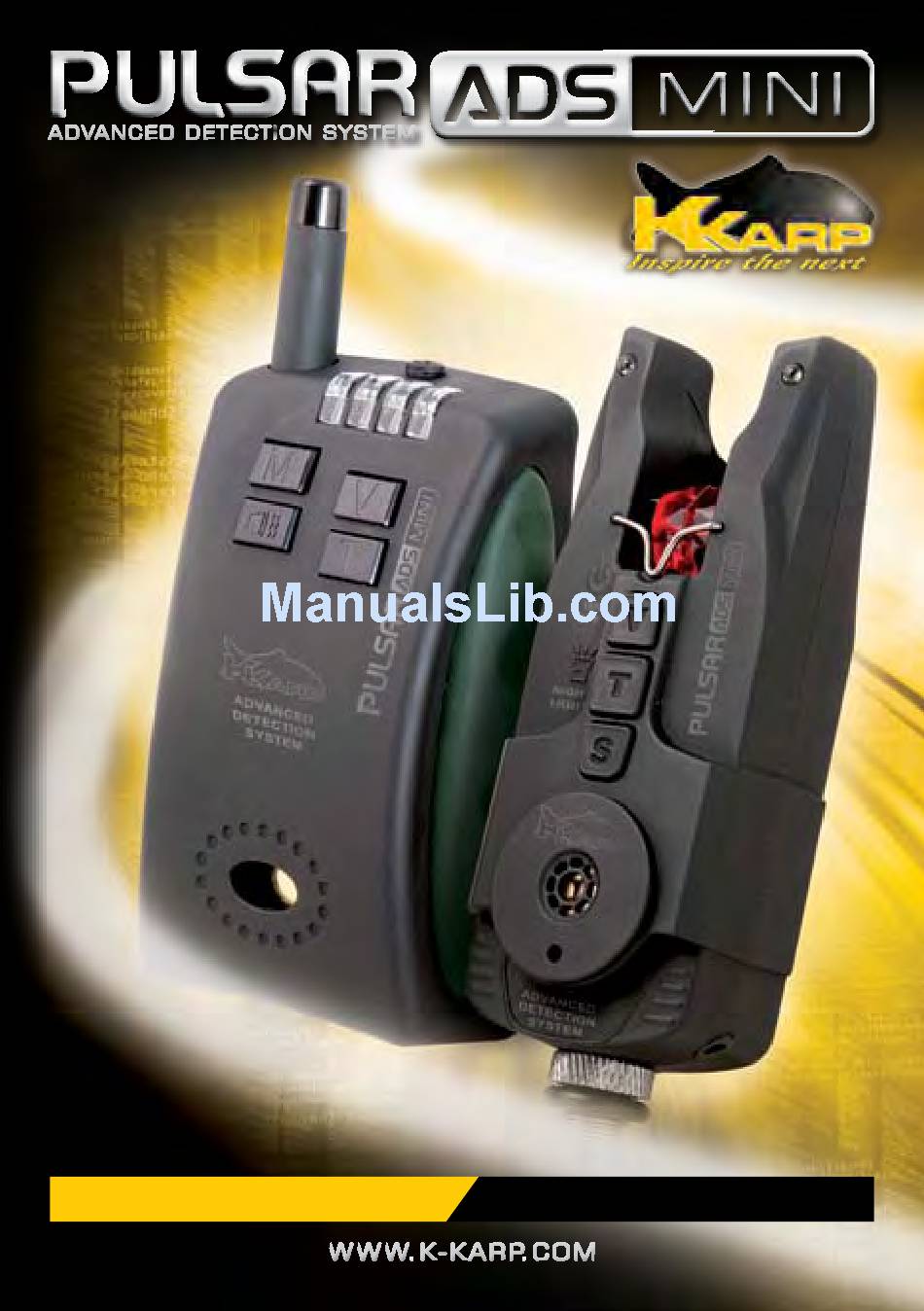

  • Page 1 ADVANCED DETECTION SYSTEM ADVANCED DETECTION SYSTEM OPERATION MANUAL MANUALE D’USO WWW.K-KARP.COM WWW.K-KARP.COM...
  • Page 2 ENgLISh OPERATION MANUAL PULSAR ADS MINI MAIN UNIT: mUlticOlOR SPEcIfIcATIONS: 1. battery type: aaa / lR03 ROd SEat 2. battery voltage: 1.5v*2 3. Standby current: 0.040ma 4. Standby (with Night- light) current: 100ma 5. Wireless transition ON/Off mode: am SWitch & vOlUmE 6. Radio transmitter Operating cONtROl frequency: 433mhz Night-light SWitch & tONE cONtROl SENSitivity cONtROl battERy cOmPaRtmENt high qUality cONE SPEaKER jacK...
  • Page 3 Thank you for purchasing the Pulsar ADS Mini Bite Detection System. Since it was introduced, the Pulsar has set new standards for bite indication and reliability in all conditions and we are sure your purchase will prove to be a worthwhile investment that will last you several years. Pulsar ADS Mini is a ultra-reliable, compact, high quality, bite indicator set packed with the latest cutting edges technologies.
  • Page 4 8. Low Battery Warning: the Pulsars continuously monitor the battery voltage and detects its failing with audible/ visual warnings, when it occurs the unit will emit a sound and the red led flash for 1 second and it will continue every minute till the battery is replaced. although the unit may continue to work for some time in this condition, battery should be replaced at the earliest opportunity. 9. Memory Function: Pulsar will keep setting in memory. the last setting will be recalled even the unit is powered Off. ENcODINg INSTRUcTIONS WITh EASY SYNcRO SYSTEM: The complete Pulsar ADS Mini set is supplied already paired as a standard. in case the receiver is not paired to the alarms, it’s necesarry to pair the bite alarms that it will be used, so that the receiver can register their unique identification code. before starting this procedure, ensure all your bite alarms are switched ON, then proceed as follows: 1. make sure all the units and the receivers are correctly switched ON 2. Push the “S” button on the receiver then release it, the first channel led will illuminate continuously. 3. Select the desired channel* to register by a short pressure of S button on the receiver. 4. Once you’ve selected desired channel, trigger the unit to register it. the receiver and the unit will be now paired.
  • Page 5 ITALIANO MANUALE D’USO PULSAR ADS MINI MAIN UNIT: mUlticOlOR cARATTERISTIchE: 1. battery type: aaa / lR03 ROd SEat 2. battery voltage: 1.5v*2 3. Standby current: 0.040ma 4. Standby (with Night- light) current: 100ma 5. Wireless transition ON/Off mode: am SWitch & vOlUmE 6. Radio transmitter Operating cONtROl frequency: 433mhz Night-light SWitch & tONE cONtROl SENSitivity cONtROl battERy cOmPaRtmENt high qUality cONE SPEaKER jacK...
  • Page 6 Il set di av- visatori Pulsar ADS Mini è un avvisatore di qualità superiore, ultra affidabile, compatto ed è dotato di tutte le più evolute tecnologie.
  • Page 7 9. Memory Function: l’unità mantiene la memoria delle impostazioni. l’ultima impostazione attiva viene richiamata anche se l’unità viene spenta o le batterie rimosse. ISTRUzIONI DI cODIfIcA cON IL SISTEMA EASY SYNcRON: Il set Pulsar ADS Mini è fornito con tutte le unità e la ricevente già sincronizzate come standard. Nel caso che la ricevente non sia sincronizzata con gli avvisatori, è necessario sincronizzarla con le altre unità, in modo che la ricevente possa registrarne il codice. Prima di iniziare questa procedure assicuratevi che tutti i vostri avvisatori siano accessi, quindi procedete come segue: 1. assicuratevi che tutti gli avvisatori e la ricevente siano accesi (posizione ON) 2. Premete e rilasciate il pulsante “S” sulla ricevente, il primo canale led si illuminerà simultaneamente. 3. Selezionate il canale desiderato* registrandolo con una breve pressione sul pulsante “S” della ricevente.
  • Page 8 ASCIUGATURA DOPO INTENSE PIOGGE: I Pulsar sono stati progettati per essere impermeabili, ma se vengono esposti a forti piogge è importante dare il tempo alle unità di asciugarsi per bene prima di riporle al chiuso, rimuovendo le coperture per una rapida asciugatura.
