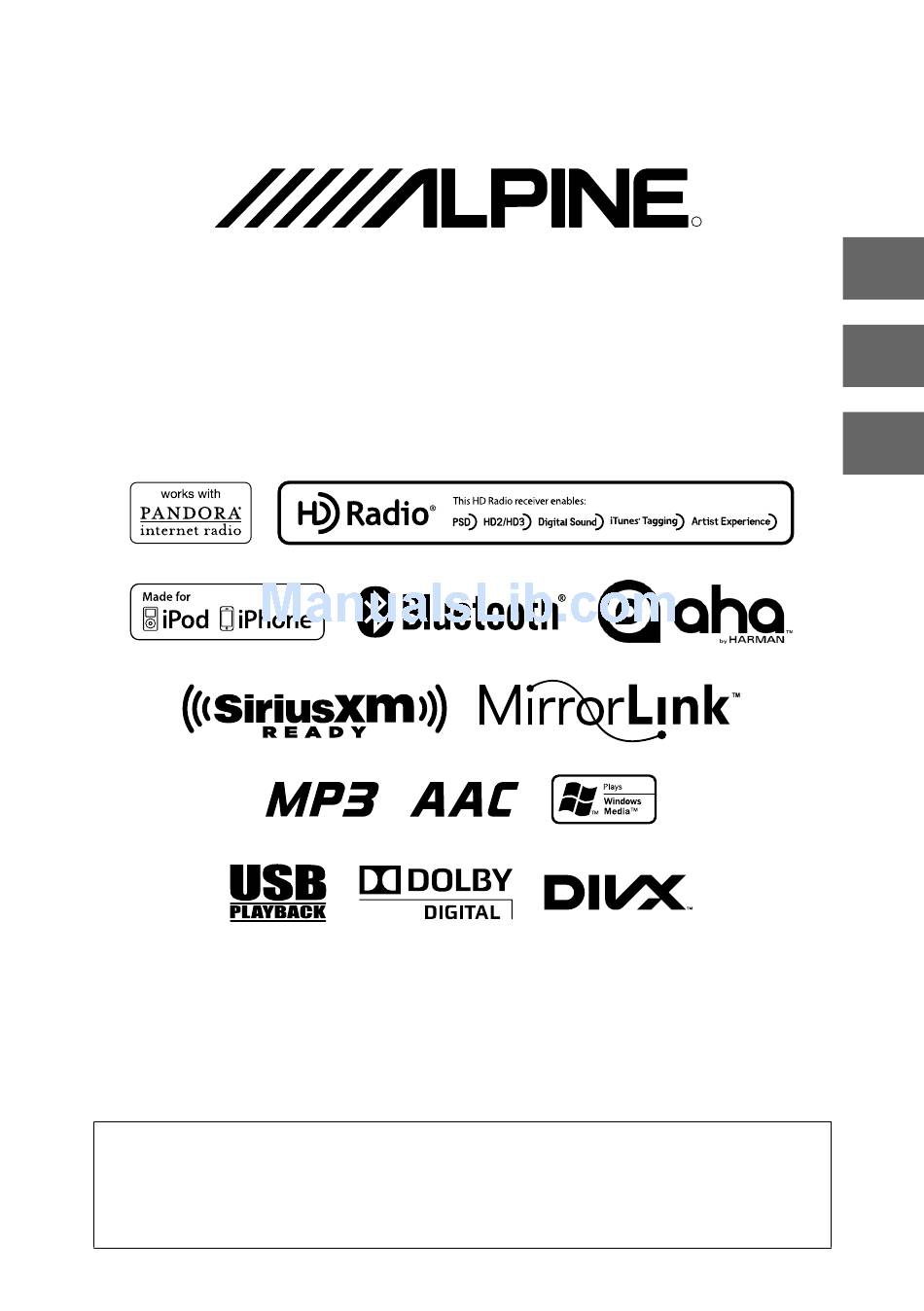

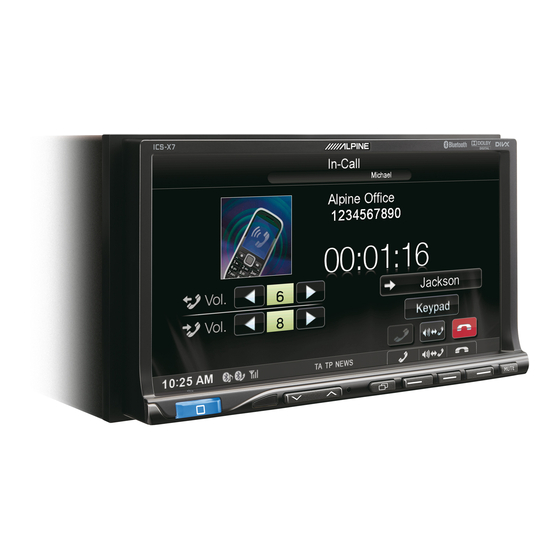

IN-DASH APP RECEIVER
Please register your product at www.alpine-usa.com/registration for a chance to win prizes.
Enregistrez-vous sur www.alpine-usa.com/registration et tentez de remporter des prix.
Registre su producto en la dirección www.alpine-usa.com/registration para optar a excelentes
premios.
ICS-X7HD
QUICK REFERENCE GUIDE
GUIDE DE RÉFÉRENCE RAPIDE
GUÍA DE REFERENCIA RÁPIDA
R
EN
FR
ES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICS-X7HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpine ICS-X7HD

Summary of Contents for Alpine ICS-X7HD

  • Page 1 GUIDE DE RÉFÉRENCE RAPIDE GUÍA DE REFERENCIA RÁPIDA Please register your product at www.alpine-usa.com/registration for a chance to win prizes. Enregistrez-vous sur www.alpine-usa.com/registration et tentez de remporter des prix. Registre su producto en la dirección www.alpine-usa.com/registration para optar a excelentes...

  • Page 3: Table Of Contents

    For details on all functions, refer to the Owner’s Manual stored in the supplied CD-ROM. (As it is data CD, the CD cannot be used for playing back music and images on the player.) If required, an ALPINE dealer will readily provide you with a print out of the Owner’s Manual contained in the CD-ROM.

  • Page 4: Warning

    Failure to do so may cause personal injury or damage to the product. MAKE THE CORRECT CONNECTIONS. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing. Failure to make the proper connections may result in fire or product damage.

  • Page 5: Getting Started

    Owner’s manual Touch operation, Location of Controls, Turning Power On or Off Getting Started Touch operation You can operate the system by using the touch panel on the screen. Common onscreen buttons : Returns to the previous screen. Depending on the function, this button may cancel the operations performed on the screen.

  • Page 6: Home Screen And Favorites

    Owner’s manual Home Screen and Favorites Home Screen and Favorites You can easily switch to the application of your choice from the Home Screen or Favorites. The Home Screen displays icons for applications usable with this unit. Favorites is a shortcut function that displays up to 4 icons on the screen you are using.

  • Page 7: Using The Media View Button

    Owner’s manual Using the Media View button Using the Media View button You can switch between the Navigation screen and the main screen for the current media source with just one touch. Media View button Press Media screen Owner’s manual Date/Time Setting Setting the Time Press the Home button.

  • Page 8: Hd Radio™/Rbds Operation

    Owner’s manual Radio/HD Radio™/RBDS HD Radio™/RBDS Operation Preset No. Indicator Band display HD Radio signal reception Frequency display indicator Multicast/Tag/Digital Seek indicator HD Radio information display Decreases frequency Increases frequency Preset button Displays the preset stations with Switches band a short touch. Touch for at least 2 seconds to Displays the Audio Setup memorise the current station as...

  • Page 9: Ipod/Iphone Operation (Optional)

    Owner’s manual iPod/iPhone (Optional) iPod/iPhone Operation (Optional) An iPod/iPhone can be connected to this unit by using the cable (KCU-461iV) (sold separately). You can connect a video-capable iPod to enjoy not only Music but also Video files. Audio mode Displays the search screen Current song no./Total song no.

  • Page 10: Usb Memory Operation (Optional)

    Owner’s manual USB Memory (Optional) USB Memory Operation (Optional) This unit can connect to USB memory device. You can play back music files (MP3/WMA/AAC) and video files (DivX® ) stored in a USB memory device on the internal player of this system. Audio mode Displays the search screen Current song no./Total song no.

  • Page 11: Hands-Free Phone Control

    Owner’s manual BLUETOOTH Setting, BLUETOOTH Operation Hands-Free Phone Control Hands-free calls are possible when using an HFP (Hands-Free Profile) compatible mobile phone with the ICS- X7HD. How to connect to a BLUETOOTH Audio: Sets for use as an Audio device. HFT: Sets for use as a Hands Free Device.

  • Page 12: Pandora® Internet Radio Operation (Optional)

    Owner’s manual Pandora® Internet Radio (Optional) Pandora® Internet Radio Operation (Optional) Display example for iPhone Pandora Radio screen Rating/QuickMix/ Bookmark icon indicator Artwork display PANDORA information display “Thumbs Up” feedback “Thumbs Down” feedback Elapsed time Pause and Playback Bookmarking a Desired Track or Artist Search screen display The currently playing song...

  • Page 13: Aha Operation (Optional)

    Owner’s manual Aha (Optional) Aha Operation (Optional) Aha offers you quick, personalized access to content you really want, and it’s their mission to ensure your listening experience is gratifying every day. If the Aha application is installed in an iPhone, you can display and operate the Aha display screen with the ICS- X7HD.

  • Page 14: Mirrorlink™ Operation (Optional)

    MirrorLink™ (Optional) MirrorLink™ Operation (Optional) MirrorLink is a standard for connecting provides for a connection between an ICS-X7HD and a mobile phone. Using MirrorLink, you can display a displays mobile phone screen and allows you to operate your mobile phone applications via this unit.

  • Page 15: Installation

    When connecting the This unit ICS-X7HD to the fuse box, make sure the fuse for the intended circuit of the ICS-X7HD has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle.
  • Page 16 • If the switched power (ignition) lead of the ICS-X7HD is connected directly to the positive (+) post of the vehicle’s battery, the ICS-X7HD draws some current (several hundred milliamperes) even when its switch is placed in the OFF position,...

  • Page 17: Connections

    Owner’s manual Connections Connections Connections 1/2 Antenna REMOTE OUT To remote input lead (Brown) REVERSE To plus side of the back lamp signal lead of the car (Orange/White) To steering remote control interface box. Connect this to the optional Sirius XM Tuner.
  • Page 18 Connections 2/2 Mobile Phone (Sold separately) Mobile Phone cable iPod/iPhone (Sold separately) (Sold separately) USB extension cable (Included) USB Memory (Sold separately) Connection kit KCU-461iV (Sold separately) iPod VIDEO AV extension cable (Included with KCU-461iV) REMOTE TURN-ON To amplifier or equalizer (Blue/White) AUDIO INTERRUPT IN Not used...

  • Page 19: Specifications

    Owner’s manual Specifications Specifications MONITOR SECTION BLUETOOTH SECTION Screen Size 7.0” BLUETOOTH Specification Bluetooth V2.1+EDR LCD Type Transparent type TN LCD Output Power +4 dBm Max. (Power class 2) Operation System TFT active matrix Profile HFP (Hands-Free Profile) Number of Picture Elements OPP (Object Push Profile) 1,152,000 pcs.
  • Page 20 ® The BLUETOOTH word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under licence. • “MPEG Layer-3 audio coding technology licenced from Fraunhofer IIS and Thomson. ”...
  • Page 21 About the Rules of Bluetooth Electromagnetic Radiation Regulation USA/Canada FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.

  • Page 22: Limited Warranty

    ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. (“Alpine”), are dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.
  • Page 23 80807 München, Germany Phone 089-32 42 640 Take a moment to protect your purchase by registering your product now at www.alpine-usa. com/registration. You will also be updated on product information, special promotions, Alpine news and may be eligible to win prizes.
