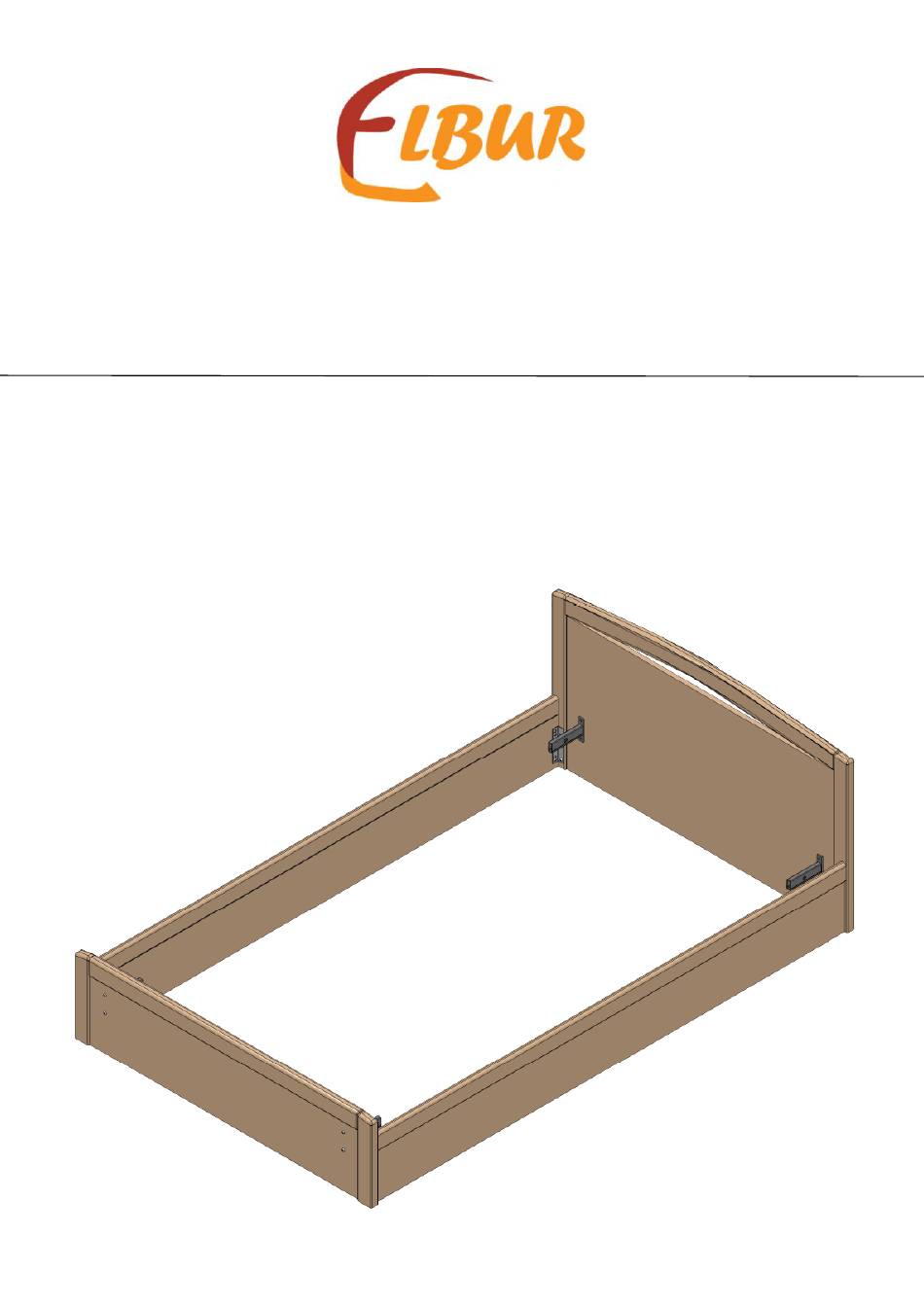

- Page 1 Assembly instruction Instrukcja montażu Elbur Nursing Beds / Łóżka regulowane Elbur Wooden frame PB 533 Obudowa drewniana PB 533...
- Page 3 PB 533 Wooden frame / Obudowa drewniana PB 533 Wooden frame PB 533 is designed for use with bed insert PB 521 II. The dimensions can vary depending on the placed order and chosen configuration related to folding side rails or the lack of them. However, the assembly method does not change and should be performed in accordance to rules described in this assembly instruction.
- Page 4 PB 533 Wooden frame / Obudowa drewniana PB 533 A. Wooden frame PB 533 / Obudowa drewniana PB 533 Scope of delivery / Zakres dostawy E.TF-A.13-01 4 / 12...
- Page 5 PB 533 Wooden frame / Obudowa drewniana PB 533 No. / Part name Quantity per set / Nazwa elementu Ilość w zestawie HeadBoard / Panel drewniany od strony głowy FootBoard / Panel drewniany od strony nóg SideBoard / Panel drewniany boczny...
- Page 6 PB 533 Wooden frame / Obudowa drewniana PB 533 Assembly / Montaż Attach T-Profiles HeadBoard with two M6x25 Allen Screws each. Attach Angle Bracket Left and Angle Bracket Right to Headbord with two M6x12 Allen Screws each. Przykręcić dwa wsady do panelu drewnianego od strony głowy przy...
- Page 7 PB 533 Wooden frame / Obudowa drewniana PB 533 Insert T-Profiles (attached with endboard) into tubes of the mattress support platform, but not to the limit to simplify assembly of the SideBoards in the next step (securing EndBoards and mattress support platform connection...
- Page 8 PB 533 Wooden frame / Obudowa drewniana PB 533 When wooden frame appropriately assembled and connected, use four grub screws to connect End Boards with mattress support platform (there are four nuts welded to metal profiles each end and side where those grubs screws have to be screwed and tighten).
- Page 9 PB 533 Wooden frame / Obudowa drewniana PB 533 E.TF-A.13-01 9 / 12...
- Page 10 PB 533 Wooden frame / Obudowa drewniana PB 533 Assembly / Montaż Attach Angle Bracket Left and Angle Bracket Right to both End boards with two M6x12 Allen Screws each. Przykręcić prawy i lewy kątownik do obu osłon tylnych przy użyciu 2 śrub M6x12 każdy.
- Page 11 PB 533 Wooden frame / Obudowa drewniana PB 533 3. Side boards with M6x12 Allen screws (screwed, but not quite) assemble with End boards – move screws through holes, then lower Side board on screws along slotted holes to make sure that bottom edges of End boards and Side boards are on the same level.
- Page 12 Elbur sp. z o.o. sp.k. Działosza 34, 56-500 Syców, POLAND Tel.: + 48 62 786 97 80 E-mail: info@elbur.eu www.elbur.eu E.TF-A.3.13-01 09.04.2021...
