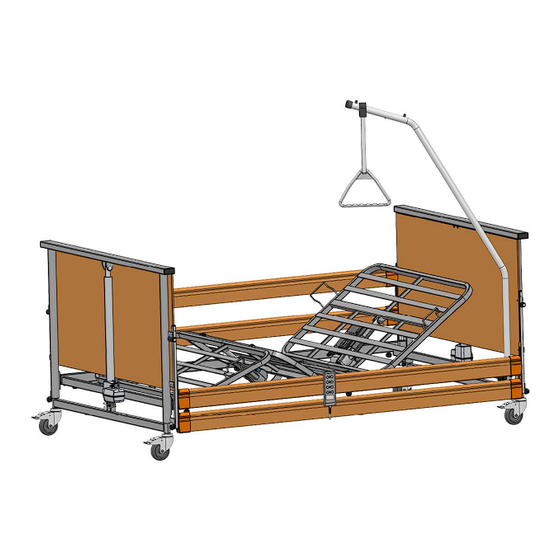

Care bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction for Use
ELBUR PB 340

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB 340 and is the answer not in the manual?

Questions and answers

Related Manuals for Elbur PB 340

Summary of Contents for Elbur PB 340

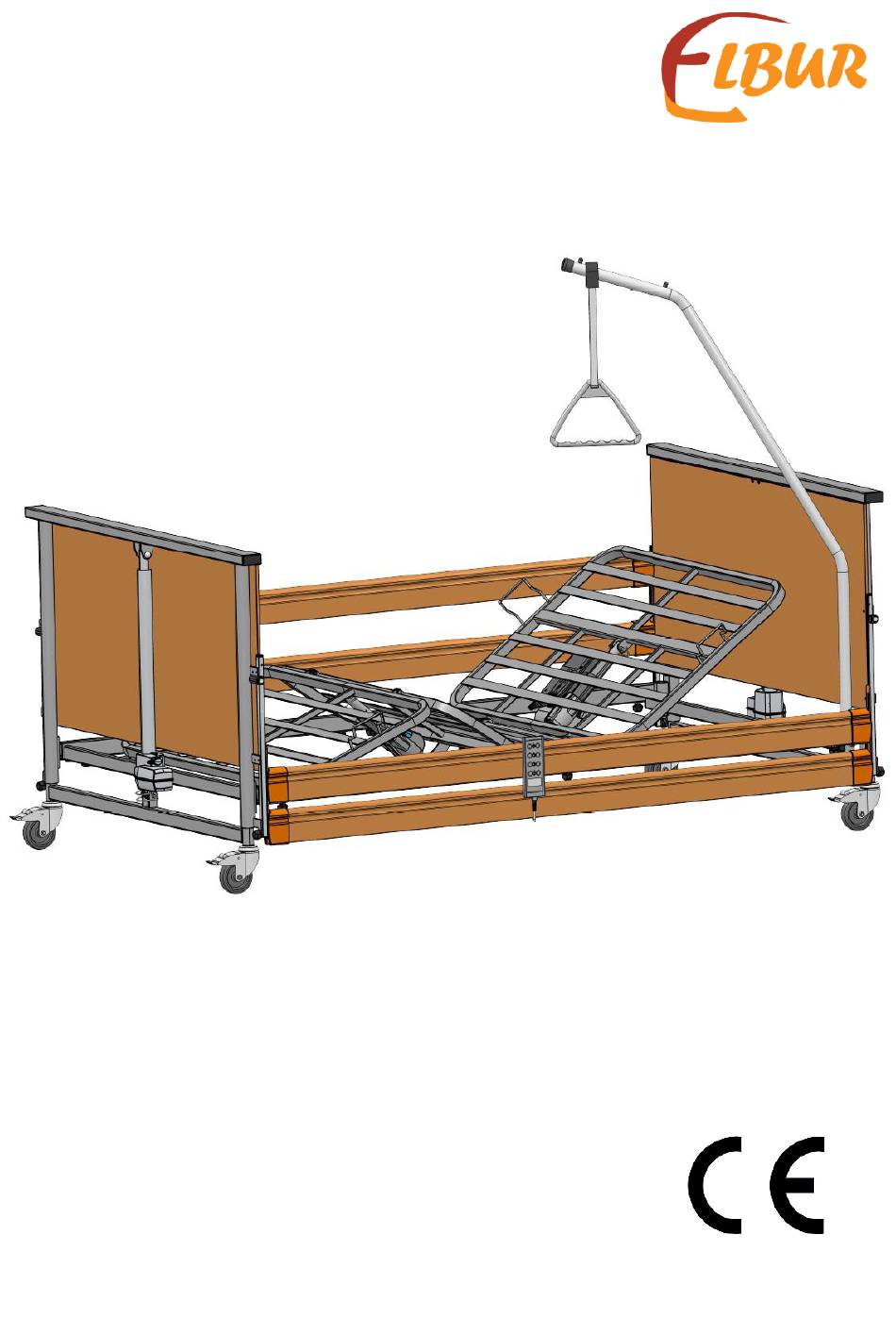

  • Page 1 Instruction for Use ELBUR PB 340...
  • Page 3 Dear Customer, Congratulations on having chosen a quality Care bed ELBUR PB 340 which will certainly fully meet your expectations. We would like to take this opportunity to thank you for showing such confidence and trust in our company and purchasing one of our products.

  • Page 4: Table Of Contents

    1.1. Intended purpose and range of application ........6 1.2. Technical specification .............. 8 1.3. Labelling of Care Bed ELBUR PB 340 ......... 10 1.4. Explanation of symbols used on labelling ........11 2.0. Definition of the groups of persons involved ........12 3.0.

  • Page 5: General Information

    ELBUR PB 340 General information This instruction for use is part and parcel of the product and must accompany every product sold. Article name, [number] Instruction for use of ELBUR PB 340, [35185] Document number, TF-17.5 version, date of issue ver.01, 31.03.2022 All rights reserved - no part of this manual may be reproduced in any form without written permission of the manufacturer.

  • Page 6: Product Description

    1.0. Product description 1.1. Intended purpose and range of application ELBUR PB 340 is classified as a Medical Device Class 1 in accordance with the Medical Device Regulation 2017/745 on medical devices. It is developed, manufactured and tested according to the current state of technical knowledge and all relevant safety standards for medically used beds.
  • Page 7 Any other used than described above is considered improper and is excluded from a possible liability claim. ELBUR PB 340 is not licensed for use on the North American market, especially in the United States of America. The distribution and use of the mentioned care bed in these markets, including through third parties, is prohibited by the manufacturer.

  • Page 8: Technical Specification

    Castor with brake pedal lever Handset Lifting Pole Triangle Handle ELBUR PB 340 is designed to be dismantled into sections for ease of transportation, but can be assembled straightforward with a minimum of tools. 1.2. Technical specification ATTENTION All indications of dimensions and weights in this manual are approximate (measurement tolerance: ±15mm / 0,5kg / 1,5°).
  • Page 9 The Safe Working Load equal to 250 kg is calculated as specified by EN 60601-2-52: Maximum Patient Weight: Mattress: Accessories: 215 kg 20 kg 15 kg ** Electrical data values visible on the Name Plate of the ELBUR care bed. Elbur sp. z o.o. sp.k. 9 of 52...

  • Page 10: Labelling Of Care Bed Elbur Pb 340

    ELBUR PB 340 1.3. Labelling of Care Bed ELBUR PB 340 Manufacturer’s Name Plate (including serial number*) [located on the outside of the Bed End lower section] *Please quote SN on all correspondence regarding sales and customer service information or to report unexpected operation.

  • Page 11: Explanation Of Symbols Used On Labelling

    Type B applied part according to EN 60601-1 (symbol indicates this product has a degree of protection against electric shock for type B equipment) Conformity mark according to the Medical Device Regulation (EU) 2017/745 Elbur sp. z o.o. sp.k. 11 of 52...

  • Page 12: Definition Of The Groups Of Persons Involved

    Safety/EMC Regulations 2.0. Definition of the groups of persons involved WARNING All persons working with the ELBUR care beds must be acquainted with the safety instructions contained in this manual. Improper operation can result in personal injuries or product damage.

  • Page 13: Safety Information And General Warnings

    Any actions that are inconsistent with the manual are performed at your own risk and can result in serious injury or death. Elbur sp. z o.o. sp.k. shall not be held liable for any damage, injuries or accidents arising from unauthorised modifications, non-genuine spare parts, negligence or use that is at variance with this manual.
  • Page 14 2 minutes, which must not be exceeded. For reasons of safety and electromagnetic compatibility, use only original electric components from Elbur that have been released for the care bed model in order. Otherwise it can caused danger for patients and loss of bed functionality.
  • Page 15 Use only original Elbur accessories which are compatible with this bed – any modification is strictly forbidden without authorization of our company. Only use Side Rails that are compatible with this bed as supplied by Elbur. Incompatible side rails can create hazards and entrapment risks. There must be a minimum height of 22 cm without compression measured from the top of the mattress to the top edge of the top side rail.

  • Page 16: Scope Of Delivery, Transport And Storage

    If the bed has become soiled or contaminated during transport refer to cleaning and disinfection instructions. If the bed is stored in conditions outside the normal operating range, it should be allowed time to stabilise, in normal operating conditions, before use. Elbur sp. z o.o. sp.k. 16 of 52...
  • Page 17 Any missing parts, faults or damage must be reported immediately to the carrier and your local distributor or Elbur directly in writing. ELBUR PB 340 is delivered unassembled and mounted on the TLSU Transport Bracket, what simplify transport and relocating on the place of delivery.

  • Page 18: Electric Components

    Handle 5.0. Electric components WARNING Care bed PB 340 does not have emergency-off switch. Remove the power plug in emergency situation. Duty cycle: Intermittent operation 2 min / 18 min OFF. This implies that after the maximum continuous action of two minutes, there must be a break of 18 minutes.
  • Page 19 30 minutes, it should be ready to re-use again. Limit switches turn off the Actuators, when they get to the limit position. ELBUR PB 340 is equipped with drive system produced by LINAK, a market leader in electric linear actuator technology worldwide.

  • Page 20: Accessories And Spare Parts

    Mattress Support Platform and its sections positions. Elbur sp. z o.o. sp.k. does not accept any liability for the use of these products on other makes. Every element of our additional equipment offer meets the special quality and safety standards of Elbur.

  • Page 21: Assembly And Use

    All mattresses must be fitted and used in accordance with the mattresses manufacturer or supplier’s instructions. Standard mattress size, which is dedicated to Care bed ELBUR PB 340, has dimensions equal to 100x200 cm or 120x200 cm depends on the chosen version.

  • Page 22: Mattress Support Platform

    MSP Head End onto the MSP Foot End with four plastic headed thumb screws in threaded holes (in the middle of the bed) and tighten by hand, one on each bottom side of the bed frame. Elbur sp. z o.o. sp.k. 22 of 52...

  • Page 23: Control Box And Msp Actuators Arrangement

    The CA40 Control Box has a label to help identify the port into which to plug the handset and actuators cables. The numbers 1-4 are printed on the label and on the Control Box just above the ports. Elbur sp. z o.o. sp.k. 23 of 52...

  • Page 24: Actuator Cable Clip Protection

    There are holders on both sides of the MSP (in the non-moving section), which can be used to hold Handset cable. 8.5. Actuator cable clip protection New type of actuator cable clip Old type of actuator cable clip Elbur sp. z o.o. sp.k. 24 of 52...

  • Page 25: New Type Of Actuator Cable Clip

    ‘up’ position - the castor is released. 8.7. Assembly of the Bed Ends with MSP End Sections ATTENTION The Bed Ends are identical and may be fitted to either and of the Mattress Support Platform. Elbur sp. z o.o. sp.k. 25 of 52...

  • Page 26: Height And Angle Adjustment Of Msp Sections

    ATTENTION Some of the buttons might not respond when you press them. If this is the case, they are locked to be used only by medical staff according to your medical condition. Elbur sp. z o.o. sp.k. 26 of 52...
  • Page 27 To change the position of the ELBUR PB 340 it is necessary to press and hold one of the buttons on the keypad on the front side of the Handset until desired position is obtained.

  • Page 28: Additional Adjustment Of The Lower Leg Rest

    The Lower Leg Rest engages automatically at a notch of rastomat. To lower this part of the bed, firstly it has to be raised to its full extent to unlock rastomats and then lowered carefully. Elbur sp. z o.o. sp.k. 28 of 52...

  • Page 29: Emergency Lowering Of The Back Rest

    6) To convert the bed back to its normal operating state the quick-release bolt has to be fitted again and secured with retainer. The Back Rest is assembled properly and ready to use again. Elbur sp. z o.o. sp.k. 29 of 52...

  • Page 30: Side Rails

    WARNING Only use Side Rails that are compatible with this Bed as supplied by Elbur. Incompatible Side Rails can create hazards. The Side Rails first and foremost serve as a fall prevention. There must be a minimum height of 220 mm without compression measured from the top of the mattress to the top edge of the top side rail.
  • Page 31 Rails, and all parts which secure the Side Rails for any possible damages. The ELBUR Care Bed described in this manual is equipped with Full-length Side Rails, made of wooden bars with plastic end caps. They are used to prevent the patient from accidentally falling out of the Bed.

  • Page 32: Lifting Pole

    In this situation or if any other sign of wear is found (e.g. Strap), remove the Lifting Pole from use immediately and contact your local distributor or Elbur Customer Service directly. A qualified person must advise the user on correct use of the Lifting Pole and adjust the Strap to the correct length.
  • Page 33 4) Position the top of Lifting Pole so that the top of the Lifting Pole is above the centre of ELBUR PB 340. Rotate the Lifting Pole from side to side until the cutout locates in the bar in the vertical tube. It should not be possible now to rotate the Lifting Pole.

  • Page 34: Movements Of Care Beds

    The Power supply lead should be plugged into the separate socket during tests and use. Position the bed where is enough space for operating it through its full height range without any chance of obstruction or entrapment – check Elbur sp. z o.o. sp.k. 34 of 52...

  • Page 35: Cleaning And Disinfection

    All functions must be tested and approved after cleaning or disinfection actions by a trained and qualified personnel. On any suspicion of the intrusion of moisture into the electrical components, disconnect the Elbur sp. z o.o. sp.k. 35 of 52...

  • Page 36: Disassembly

    Elbur cannot be liable for any damage or risk of damage if inappropriate cleaning or disinfectant agents are used. Observing the instructions described in this chapter will retain the usability of the ELBUR care bed for a long time to come and will keep its nice appearance. Cleaning and disinfecting procedure: 1) Empty the care bed - remove the mattress and all accessories.

  • Page 37: Troubleshooting

    12) If the Lifting Pole is not packed in the carton box, place it in the vertical tube welded to one part of the TLSU Transport Bracket. 13) If not in use, the ELBUR Care Bed should be stored in clean, dry and well- ventilated location - protect the disassembled bed from mould, rust or other destruction under external influences before re-use.
  • Page 38 Release the brake rotate or swivel Castors unclean Clean castors, remove obstacles Castors damaged Notify operator Elbur Customer Service Lower leg rest does Adjusting ratchets Notify operator Elbur not adjust damaged Customer Service Elbur sp. z o.o. sp.k. 38 of 52...

  • Page 39: Maintenance

    Regular inspections facilitate the maintaining of the highest possible safety level, prevent potential risk of wear and tear in the daily use and allow to keep ELBUR care bed trouble-free for years.
  • Page 40 ELBUR PB 340 Inspection Protocol for ELBUR care beds type PB (Form Number: PSF-08.9-02 ; date of issue: 31.03.2022) Customer Name / Medical Facility Address Model designation ELBUR PB ________ Reference Number Serial Number Electrical appliance class Date of manufacture Manufacturer Elbur sp.
  • Page 41 (fully inserted to appropriate slots/sockets) and routed to prevent damage pinching crushing, especially between moving parts? Are all cables protected from non-intended running over, wringing and bringing out? Elbur sp. z o.o. sp.k. 41 of 52...
  • Page 42 Is the area around, above and below the bed clear of possible obstruction? 2. Performance check Description Is it possible to operate the ELBUR bed as per its intended purpose without unexpected noise or motion? Are all electrical positioning functions, available to...
  • Page 43 Is the distance between top of the mattress and the top edge of the top side rail at least 22 cm? Are all accessories fitted in line with the accessory manufacturer instructions and their using is safe? Elbur sp. z o.o. sp.k. 43 of 52...
  • Page 44 Results of Inspection Date of inspection Inspected by Signature PASS FAIL In the event the Inspection result did not pass and ELBUR Repair care bed did not meet the safety requirements Take out of use Additional comments / Description of defects...

  • Page 45: Electromagnetic Compatibility Statement

    15.0. Electromagnetic Compatibility statement Guidance and manufacturer’s declaration – Electromagnetic emissions The ELBUR care bed is intended for use in the electromagnetic environment specified below. The customer or the user of the bed should assure that it is used in such an environment.
  • Page 46 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the ELBUR care bed is used exceeds the applicable RF compliance level above, the ELBUR care bed should be observed to verify normal operation.
  • Page 47 ELBUR care bed The ELBUR care bed is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ELBUR care bed can help prevent electromagnetic interference...

  • Page 48: Disposal

    16.0. Disposal CAUTION If the ELBUR care bed is to be scrapped, the synthetic and metallic parts are to be separated and disposed of properly. The operator must ensure that all components of the bed are to be disposed of are not contaminated.
  • Page 52 Elbur sp. z o.o. sp.k. Działosza 34, 56-500 Syców, POLAND Tel.: + 48 62 786 97 80 E-mail: info@elbur.eu www.elbur.eu TF-17.5-01 31.03.2022...
