ProTeam PS08 User And Service Manual

Dc inverter swimming pool heat pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DC Inverter Swimming Pool Heat Pump
User and Service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProTeam PS08

Summary of Contents for ProTeam PS08

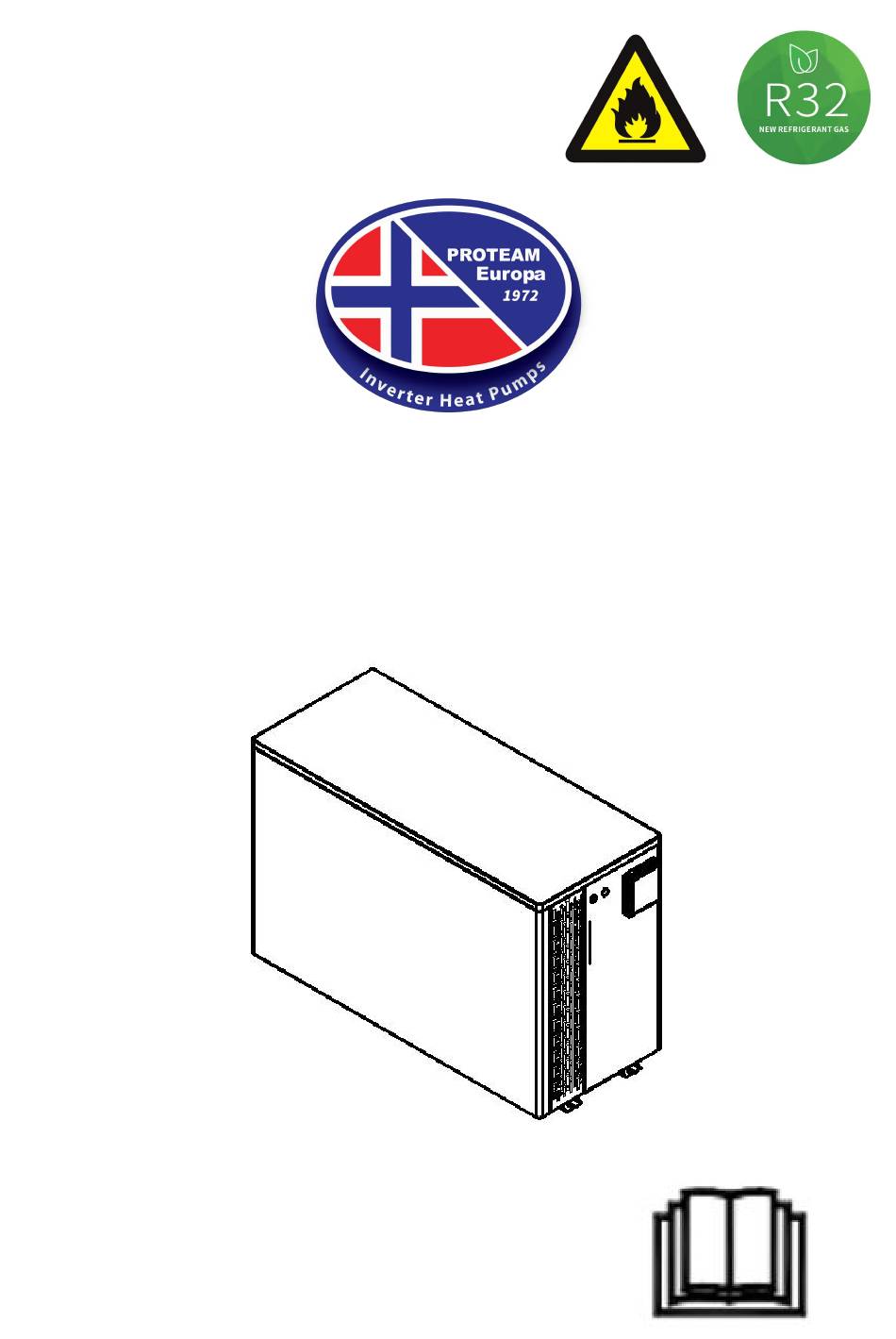

  • Page 1 DC Inverter Swimming Pool Heat Pump User and Service manual...
  • Page 3 INDEX 1. Specifications 2. Dimension 3. Installation and connection 4. Accessories 5. Electrical Wiring 6. Display Controller Operation 7. Running data setting 8. Troubleshooting 9. Maintenance 10. WIFI Controller Function Specification...
  • Page 4 Thank you for using swimming pool heat pump for your pool heating, it will heat your pool water and keep a constant temperature when the ambient air temperature is at -7 to 43℃ ATTENTION:This manual includes all the necessary information about the use and the installation of your heat pump.

  • Page 5: Specifications

    1. Specifications 1.1 Technical data PS08 PS10 PS13 PS15 PS17 Product model 40~75 15~30 20~40 25~50 30~60 Advised pool volume（m3）(with cover) -7 ~43 Operating ambient temperature range（℃） 7.50~1.92 9.50~2.10 11.00~2.50 14.00~3.15 17.00~3.75 Heating capacity (kW) 25500~6528 32300~7140 37400~8500 47600~10710 57800~13090 Heating capacity (BTU/h) 1.15~0.13...

  • Page 6: Product Model

    PS20 PS25 PS30 PS35 Product model 55~100 60~110 60~120 70~130 Advised pool volume（m3） (with cover) Operating ambient temperature range（℃） -7 ~43 20.00~4.00 24.00~4.80 28.0~5.6 32.5~6.5 Heating capacity (kW) 68000~13600 81600~16320 95500~19100 110900~22100 Heating capacity (BTU/h) 3.33~0.27 4.00~0.32 4.75~0.37 5.42~0.43 heating* Input power (kW) 6.0~14.8 6.0~15.0...
  • Page 7 2. Dimension 2.1 Unit mm PS08/PS10/PS13/PS15 PS17/PS20/PS25 PS30 PS35 Model 1073 1123 1123 121.5 146.5 146.5 131.5 126.5 126.5 28.5 28.5 126.2 126.2 - 4 -...
  • Page 8 Exploded viewse - 5 -...

  • Page 9: Installation And Connection

    3. Installation and connection 3.1 Notes The factory only supplies the heat pump. All other components, including a bypass if necessary, must be provided by the user or the installer. Attention: Please observe the following rules when installing the heat pump: 1.
  • Page 10 3.3 Distance from your swimming pool The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The greater the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat loss is low for distances up to 30 m (15 m from and to the pump;...

  • Page 11: Electrical Connection

    Note: This arrangement is only an illustrative example. 3.6 Adjusting the bypass Use the following procedure to adjust the bypass: fully open all three valves  slowly close valve 1 until the  water pressure is increased by From pool To pool approximately 100 to 200 g Close valve 3 approximately...

  • Page 12: Initial Operation

    Fuse or Wire diameter mm Model Voltage (V) circuit Rated current (A) (with max. 15 m length) breaker (A) PS08 220–240 3*1.5mm2 PS10 220–240 3*1.5mm2 PS13 220–240 3*2.5mm2 PS15 220–240...

  • Page 13: Accessories Installation

    5. Allow the heat pump and the filter pump to run 24 hours a day until the desired water temperature is reached. The heat pump will stop running at this point. After this, it will restart automatically (as long as the filter pump is running) whenever the swimming pool water temperature drops 2 degrees below the set temperature.

  • Page 14: Electrical Wiring

    5. Electrical Wiring 5.1 DC INVERTER SWIMMING POOL HEAT PUMP WIRING DIADRAM - 11 -...
  • Page 15 - 1 -...

  • Page 16: Display Controller Operation

    NOTE: (1)The above electrical wiring diagrams are only for your reference, please subject the heat pump to the posted wiring diagram. (2)The swimming pool heat pump must be earthed well, although the unit heat exchanger is electrically isolated from the rest of the unit .Earthing the unit is still required to protect you against short circuits inside the unit .Bonding is also required.

  • Page 17: Remote Controller

    6.3 Remote Controller ◎ Basic Icons Heating mode, display symbol“ ” Cooling mode, display symbol“ ” When water pump is running，display symbol“ ” Fast running mode display “POWERFUL” Quiet running mode display “SILENT” Intelligent running mode display “SMART” When compressor is running，display symbol“ ”...
  • Page 18 6.4 Key Operating Instruction 6.41、“ ”: ON /OFF button. Short press“ ” to exit and return to the main interface. In the main interface, long press and hold the “ ” key for 3 seconds to turn on / off. 6.42、“...

  • Page 19: Clock Setting

    Inner coil temp -30~99℃ Main EV opening 0-480 Assistant EV opening 0-480 Compressor current Radiator temp DC bus voltage DC fan motor actual rotate Single-fan design shows fa actual rotary speed, speed 1# twin-fan design shows rotary speed of fan 1#. DC fan motor actual rotate Single-fan design shows “0”, twin-fan design speed 2#...

  • Page 20: Operation Mode Switching

    6.48、Press “ ”to exit or confirm. Press in the main interface to display the current number of set timing periods; 6.49、Cancel timing setting: When the set start-up time and shutdown time are the same, the timing setting of the current time period is cancelled. 6.50、Enforced Defrosting When the conditions of entering enforced defrosting are met, press “...

  • Page 21: System Parameter

    7 System Parameter: System parameters table: press “ON/OFF” + “Timers” buttons for 5 seconds, ◎ input password “0814” Parameter Parameter Name Set Range Factory Setting Code Return Difference for 1~18℃(2~36℉) 1℃(2℉) Target Water Temp. Set Temp. in Cooling Mode 8℃~35℃(46~95℉) 27℃(81℉) Set Temp.

  • Page 22: Troubleshooting

    Water Pump's Working Mode 1= Non Stop/2= Stop When Target Temperature Reached 3=Intermittent Fan's Working Mode 0=Auto/ 1= Manual 0-99 Fan's Manual Control Speed (Set (Set Value*10=Actual (Set Value*10=Actual Speed) Value*10=Actual Speed) Speed) Ambient Temp. to Start Reserved Reserved Auxiliary Electric Heater Auxiliary Heating Reserved Reserved...
  • Page 23 communication failure of frequency conversion module (alarm when Er 10 Change PCB. communication between display and PCB are disconnected) 1. Replace the compressor discharge temperature sensor. 2. Reconnect or clean compressor discharge Er 12 excessive exhaust temp protection temperature sensor and wrap it with insulation tape.
  • Page 24 Error name description Solution suggestion Code IPM Over-current IPM Module problem Replace inverter module compressor Compressor failure Replace compressor synchronous abnormal reserved compressor output Compressor wiring disconnected or Checking compressor input circuit phase absent poor contact Input too low voltage, PFC module Inspect the input voltage, replace DC bus low voltage failure,...
  • Page 25 8.2 Other Malfunctions and Solutions (No display on LED wire controller) Malfunctions Observation Reasons Solution LED wire controller Check whether cable and circuit shows No power supply breaker are connected no display Heat pump under LED wire controller standby Startup heat pump to run. displays the actual time status 1.

  • Page 26: Maintenance

    9. Maintenance (1) You should check the water supply system regularly to avoid the air entering the system and occurrence of low water flow, because it would reduce the performance and reliability of the heat pump. (2) Clean your pools and filtration system regularly to avoid the damage of the unit as a result of a dirty or clogged filter.
  • Page 27 WIFI Controller Function Specification Step 1. Download APP Search and download “Smart Life” In major Application markets or Scan the QR Code below to download the App Sept 2. Registration /Login/password retrieval Registration If you do not have app account, you may choose to register or Log in by authoration code, the registration process is described in below.
  • Page 28 5.1.2 The system will identify automatically the country /region you are in, or you may choose to select manually a country/region, enter your mobile phone number or email and click ”get authentication code” as showing in below. Enter the Authentication code you received, then enter the password and click”completed”...
  • Page 29 5.2 Account ID+ Password Login If you already have an app account, Click”Log In with existing account” to proceed to the login page. 5.2.1 The system will identify automatically the Country /region you are in, or you may also choose to select manually a country/region. Enter the mobile phone number or email you have registered and enter the password in to log in.

  • Page 30: Forgot Password

    5.3 Forgot password If you forgot your app password, you can reset your password by following the password retrieval procedure, 5.3.1 Click”forgot password”, As show in Fig 1, 5.3.2 The system will identify automatically the country/region you are in, or you may choose to select manually a country/region, enter the mobile phone number or email you used to register and click”obtain authentication code”...
  • Page 31 Default mode operation Step 6.1 Open the heat pump controller , press and hold the “ ” at the same time ”“ for 3 seconds to enter the "default mode" to connect the wifi, the “ ”icon will flashing fast when entering entering wifi connection;...
  • Page 32 6.1.3 Select “Water Heater” Enter the “Add device”,Make sure the controller has selected the intelligent network distribution, The Corresponding indicator flashes quickly, Click the “Confirm indicator rapidly bink” 6.1.4 Enter the Wifi Connection interface,Input Wifi Password (must be consistent with the WIFI connected to the mobile phone),Click “next”enter the device connection status directly;...
  • Page 33 6.1.5 When "device found", "device registered to smart cloud", and "device initialization" are all completed, the connection is successful, and the system prompts "added successfully ", the network distribution is successful. In this interface,device name is editable after click button, select the device installation location (living room, master bedroom ...), and then click “Done”...
  • Page 34 If Default mode connection not successful, Try Compatibility mode. Step 6.2.1 Open the heat pump controller , press and hold the “ ”at the same ”“ time for 3 seconds to enter the "Compatibility mode" to connect the wifi, the “ ”icon will flashing slowly when entering wifi connection;...
  • Page 35 6.2.3 After entering the interface for Adding device,Click”Compatibility network distribution,in the upper right corner, after entering the interface for adding device in Compatibility network distribution,Confirm that the compatible network distribution is selected Icon is flashing）,Click “Confirme indicator slowly blink” （ - 20 -...
  • Page 36 6.2.4 The wifi Connection interface is pops up,input Wifi Password(must be the same as the WiFi network connected to the mobile phone),Click “Next ”And pop up”Connect your mobile phone to the device’s hotspot ”， Click “go to connect. 6.2.5 Enter the Wifi Connection interface,Find and connected The desired Wifi Hotspot, For examples, as pic 1”Smartlife_E4A1,”, Click for Connection,APP will automatically enter the device connection state;...
  • Page 37 Note: If meet the connection fails, please re-enter the compatible network configuration Compatibility mode) mode manually and reconnect according to the above steps; Step 7. App operation introduction 7.1After the device is successfully bound to enter operation page,(Device name is editable) 7.2Click “pool heat pump”...
  • Page 38 Enter the shared person's account and click "Finish". The shared success list displays the added shared person's account. The received shared device is displayed. Click in to operate the control device. 7.5 Mode setting In the main interface,click” ”The mode selection interface will pop up as shown below, just click the mode you want to select;, - 23 -...
  • Page 39 7.6 Timer setting In the main interface, click” to enter timer setting,click to add timing In the timing setting ,Slide the hour/minute up and down to set the timing time,and set the repeating week and on/off, press the upper right corner to save, as shown in the below Fig, - 24 -...
  • Page 40 Hour Minutes Available select repeating times Available settting Timming power on/off 7.7 Equipment removal 7.7.1 App removal Click in the upper right corner of device operation main interface to enter device details interface, and click”remove device” interface to enter the intelligent network configuration mode.
