Summary of Contents for ProTeam PC-NVI-90

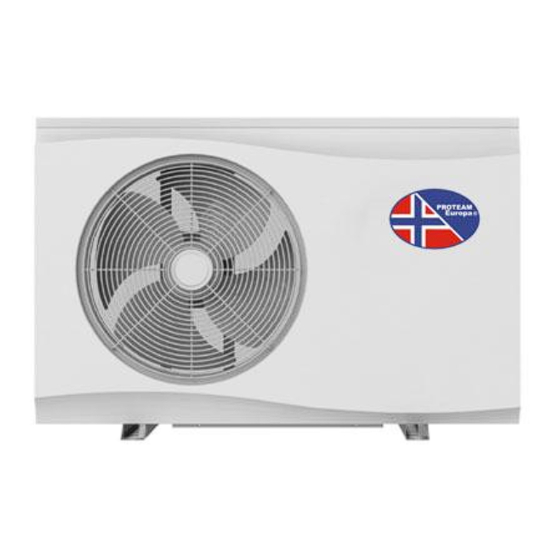

- Page 1 PROTEAM EUROPA Swimming Pool Heat Pump -Installation and Operation Manual- Models: PC-NVI-90,PC-NVI-110, PC-NVI-140,PC-NVI-170, PC-NVI-210,PC-NVI-230 PC-NVI-270, PC-NVI-320...
- Page 2 THANK YOU Dear Customer, Thank you for choosing Proteam Inverter Swimming Pool Heat Pumps for heating or cooling your pool and extending your swimming season. The Proteam Inverter Heat Pump is a smart heat pump which knows how to heat your pool and maintain its temperature in the most efficient way, thanks to the full inverter technology.
-
Page 3: Table Of Contents
TABLE OF CONTENT INTRODUCTION ........................2 This manual ........................2 The unit ..........................2 SAFETY INSTRUCTIONS ....................... 2 ITEMS INSIDE PRODUCT BOX ....................4 OVERVIEW OF THE UNIT ...................... 5 EXPLODED VIEW........................6 INSTALLATION ..........................7 Installation information ....................7 Condition of installation ....................7 Installation location ...................... -
Page 4: Introduction
INTRODUCTION This manual This manual contains important information about the unit. Please read this manual carefully before you use and service the unit. The unit Heat pumps are one of the most economical systems to heat swimming pools efficiently. Using free renewable energy from the air and earth, heat pumps deliver up to five times more energy than a traditional heating system such as gas boiler or electric heater. - Page 5 After reading these instructions, be sure to keep them handy for future reference. Do not install the unit yourself. Incorrect installation could cause injury due to fire, electric shock, the unit falling or leakage of water. Consult the dealer from whom you purchased the unit or a specialized installer. Install the unit securely.
-
Page 6: Items Inside Product Box
ITEMS INSIDE PRODUCT BOX Before starting the installation, please make sure that all parts are found inside the box. The Unit Box Item Image Quantity Proteam Inverter Swimming pool heat pump Installation and Operation Manual Water Connectors (50mm) Winter Cover... -
Page 7: Overview Of The Unit
OVERVIEW OF THE UNIT Unit Dimensions Model PC-NVI-90/110/140 PC-NVI-170/210/230 PC-NVI-270/320 1076 1176... -
Page 8: Exploded View
EXPLODED VIEW Name Name Top Cover Bottom Panel component Electric box cover Inverter compressor Support frame Middle-pressure switch Electronic control components Low-pressure switch Fin heat exchanger Power waterproof cover Fan blade Controller Middle panel Right panel AC fan motor Needle valve Four-way valve Front Panel High-pressure valve... -
Page 9: Installation
INSTALLATION Installation information The information given here is meant to give the user a better understanding of the installation. Installation place Install the swimming pool heat pump on a flat, horizontal, and stable surface. Maintain 1m of open space in front of the discharge grids and 3m on the outlet side of the ventilator. - Page 10 To channel condensation flows, we recommend that you install a condensate drain kit. For this purpose, the heat pump must be raised by at least 10 cm. How to install the condensate drain kit? 1. Install your heat pump by raising it by at least 10 cm using solid, moisture-resistant studs. 2.
-
Page 11: Electrical Connection
Electrical supply must correspond to that indicated on the appliance. Connection cables must be sized according to appliance power and installation requirements. Please refer to below table: Cable size Heat pump 3x2.5mm /AWG 14 PC-NVI-90 3x2.5mm /AWG 14 PC-NVI-110 3x4.0mm /AWG 12 PC-NVI-140 3x4.0mm... -
Page 12: Trial Run
Trial run After connecting water to the pool system, complete with a suitable by-pass and electrical connections by a qualified engineer. Be sure that: 1) Appliance is horizontal and on a firm base. 2) Water circuit is well connected (no leaks and no chance of injury due to badly fitted hydraulic couplings). 3) Electrical circuit is well connected (all cables tightened correctly at terminals and intermediate circuit breaker), insulated and earthed correctly. -
Page 13: Display Instruction
1.3 Display and Operation Surface 2. Display Instruction 2.1 Instruction for Buttons Start on/off: Short-press to turn on. Also user can press this button to exit when finished setting or checking. Running Modes: Short-Press to change mode. Long-Press to enter menu option Increase: Temperature set + or previous screen Decrease: Temperature set - or next screen Boost Running mode:Short-press to enter... -
Page 14: Instruction For Function
：Water out Temperature ：Error Warning 2.3 Instruction for special display When turn off the heat pump,screen only shows the last running symbol and data shows 0. When heat pump has error warning,symbol displays and twinkles, water in area displays P or E, water out area displays Error code. -
Page 15: Parameter Checking And Adustment
PARAMETER CHECKING AND ADUSTMENT Parameter list Some parameters can be checked and adjusted by the controller. Below is the parameter list. Name Instruction Compressor running Frequency Current hz EEV Open degree Current Value/5 Current ℃ Ambient Temperature Current ℃ Outlet Water Temp. Current ℃... - Page 16 2. Check if high-pressure 2. Replace high-pressure 2. High-pressure switch is damaged； switch is off； switch 3. Check if refrigerant system 3. Replace filter 3.Refrigerant system block； is blocked 4. EEV deadlock 。 4. Switch heat pump off, 4.Replace EEV then turn it on and off to check if EEV r e s e t can be heard.
- Page 17 sensor temperature T3 coil deviation or Check sensor temperature Re-connect cable or failure resistance value or if sensor failure change sensor sensor is faulty sensor temperature T4 ambient deviation or Check sensor Re-connect cable or temperature failure resistance value or if change sensor sensor failure sensor is faulty...
-
Page 18: Maintaining The Unit
reset Compressor over-current module extra high temperature Current detection circuit failure out of step module temperature sensor abnormity communicatio n failure IPM module very high temperature IPM module temperature sensor failure reserved adjustment data adjustment data AC input voltage abnormal adjustment data Reserved... -
Page 19: Cleaning The Pipe System In The Heat Exchanger
To prevent faults due to sediments in the titanium heat exchanger of the heat pump, ensure that the heat exchanger cannot be contaminated (water treatment and filter system necessary). In the event that operating malfunctions due to contamination occur, the system should be cleaned as described below. (Warning: the fins on the finned tube heat exchanger have sharp edges - danger of being cut!) Cleaning the pipe system in the heat exchanger Contamination in the pipes and heat exchanger can reduce the performance of the heat pump’s titanium... -
Page 20: Environmental Information
The permissible operating conditions for the heat pump have been adhered to (air temperatures too high or too low). The air inlet or outlet area is blocked, restricted or very dirty. There are closed valves or stop-cocks in the water pipes. The scheduled timer does work but the programmed actions are executed at the wrong time (e.g. - Page 21 Model: PC-NVI-90/110/140/170/210/230 Model SW1-1 SW1-2...
- Page 22 Model: PC-NVI-270/320...
-
Page 23: Specification
Specification Host model External model PC-NVI-90 PC-NVI-110 PC-NVI-140 PC-NVI-170 capacity（kW) 1.9~9.2 2.7~10.9 3.4~14.3 4.3~17.4 power input(kW) 0.13~1.28 0.18~1.74 0.23~2.32 0.29~2.85 6.24~14.71 6.27~14.8 6.15~14.62 6.0~14.5 capacity（kW)Boost 9.20 10.90 14.30 17.40 Air26℃/Water26℃ COP Boost 6.24 6.27 6.15 6.00 Humidity 80% capacity（kW)Smart 7.45 8.94... - Page 24 Host model External model PC-NVI-210 PC-NVI-230 PC-NVI-270 PC-NVI-320 capacity（kW) 4.8~21.2 5.7~23.2 6.6~27.1 7.7~31.7 power input(kW) 0.33~3.38 0.4~3.8 0.46~4.42 0.54~5.21 6.36~14.55 6.1~14.5 6.1~14.54 6.11~14.6 capacity（kW)Boost 21.20 23.20 27.10 31.7 Air26℃/Water26℃ COP Boost 6.36 6.10 6.10 6.11 Humidity 80% capacity（kW)Smart 17.17 18.79 21.95 25.68 COP Smart...
- Page 25 @Manual of Wave-Inverter Pool Heat Pump Recycling ENVIRONMENTAL INFORMATION This equipment contains fluorinated greenhouse gases covered by the Kyoto Protocol. It should only be serviced or dismantled by professional trained personnel. This equipment contains R410A refrigerant in the amount as stated in the specification. Do not vent R410A into the atmosphere: R410A, is a fluorinated greenhouse gas with a Global Warming Potential (GWP) = 2088.
