C4FM/FM 144/430MHz
DUAL BAND DIGITAL TRANSCEIVER

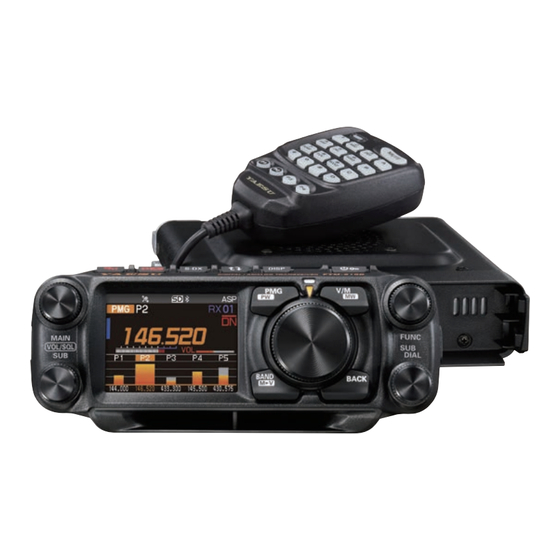

FTM-510DR
FTM-510DE
Instruction Manual
(GM Edition)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTM-510DR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yaesu FTM-510DR

Summary of Contents for Yaesu FTM-510DR

  • Page 1 C4FM/FM 144/430MHz DUAL BAND DIGITAL TRANSCEIVER FTM-510DR FTM-510DE Instruction Manual (GM Edition)

  • Page 2: Table Of Contents

    Table of Contents What is the GM Function? ..................... 2 GM Operation ........................3 Display the APL (Automatic Position Locating) screen ..........4 Confirm the location of a Group Member station in real time ........5 Display the position of the member station on the compass screen ......5 Registering the Location Information of a Partner Station ..........

  • Page 3: What Is The Gm Function

    What is the GM Function? The GM (Group Monitor) function automatically monitors on the same frequency for any other stations with the GM function in operation, or stations operating in DN mode, within communication range. The GM function then displays the acquired direction and distance information for each detected call sign on the screen.

  • Page 4: Gm Operation

    GM Operation 1. Tune to the frequency used by the group that you would like to communicate with. • If you only want to check your group location information, press and hold the [GM] key and set the send and receive DG-ID numbers to the same numbers except “00” at all the partner stations.

  • Page 5: Display The Apl (Automatic Position Locating) Screen

    Display the APL (Automatic Position Locating) screen The positions of up to four group stations are displayed on the APL (Automatic Position Locating) screen, centered on your own station. The direction and progress of each sta- tion is displayed, and you can check each other's position, distance, and moving direc- tion.

  • Page 6: Confirm The Location Of A Group Member Station In Real Time

    Confirm the location of a Group Member station in real time The position of the selected member can be confirmed in real time on the compass screen. The member's current position may be registered as the navigation destination. Display the position of the member station on the compass screen 1.

  • Page 7: Registering The Location Information Of A Partner Station

    Registering the Location Information of a Partner Station You can register the current position of the selected member, and then navigate toward that station. 1. Press the [GM] key. 2. Rotate the FUNC knob to select the station for which JA1YOE you want to registering location information.

  • Page 8: Checking Received Messages And Images

    Checking Received Messages and Images Use the GM function to check the messages and images on the LOG list. When using a GM function, a beep sounds when a new message or image is received. 1. Press the [GM] key. 2.
  • Page 9 • Press the SUB DIAL knob, then rotate the SUB DIAL knob to select [REPLY], then press the SUB DIAL knob to reply to the sender of the downloaded message or image data. Refer to “Replying to the Sender of the Checked Message or Image Data”...

  • Page 10: Sending Massages Or Images

    Displays the message entry screen. |||||||||||||||||||| |||||||||||||||||||| 6. Refer to “Text input screen” in the FTM-510DR/DE Operating Manual to enter a message. • Rotate the FUNC knob to select [MTXT], then press the FUNC knob to easily input a message using a standard form.

  • Page 11: Using Standard Messages

    7. When input is complete, press and hold the FUNC knob. The entire message is displayed. 8. Press the SUB DIAL key, then rotate the SUB DIAL knob to select [SEND], then press the SUB DIAL knob. • To cancel transmission, press the [BACK] key. • To save the entered message as a standard message, rotate the SUB DIAL knob to select [SAVE], then press the SUB DIAL knob (page 11).

  • Page 12: Registering A Standard Message

    5. Press and hold the FUNC knob. |||||||||||||||| The entire message is displayed. To add letters to the message, input letters following steps 6 in “Creating and sending a new message” on page 9. MTXT Registering a standard message Up to 10 texts containing a maximum of 80 characters each can be registered as stan- dard messages.

  • Page 13: Replying To The Sender Of The Checked Message Or Image Data

    Replying to the Sender of the Checked Message or Image Data After checking the message or image data, you may reply to the sender. 1. Select the information (MESSAGE or PICT) to review according to steps 1 to 4 of “Checking Received Messages and Images”...

  • Page 14: Gm Set Mode List

    When communicating with another transceiver, if the DP-IDs of the sta- tions are registered in both transceivers, they can communicate even though the DG-ID numbers are different. For details, refer to the FTM-510DR/DE operating Manual. 61 RANGE RINGER Explanation: Activates/deactivates the alert sound when detecting stations within com- munication range.
  • Page 15 Copyright 2025 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Omori Bellport Building D-3F 6-26-3 Minami-Oi, Shinagawa-ku, Tokyo, 140-0013, Japan YAESU USA 6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
