Summary of Contents for Fellowes Array AC2

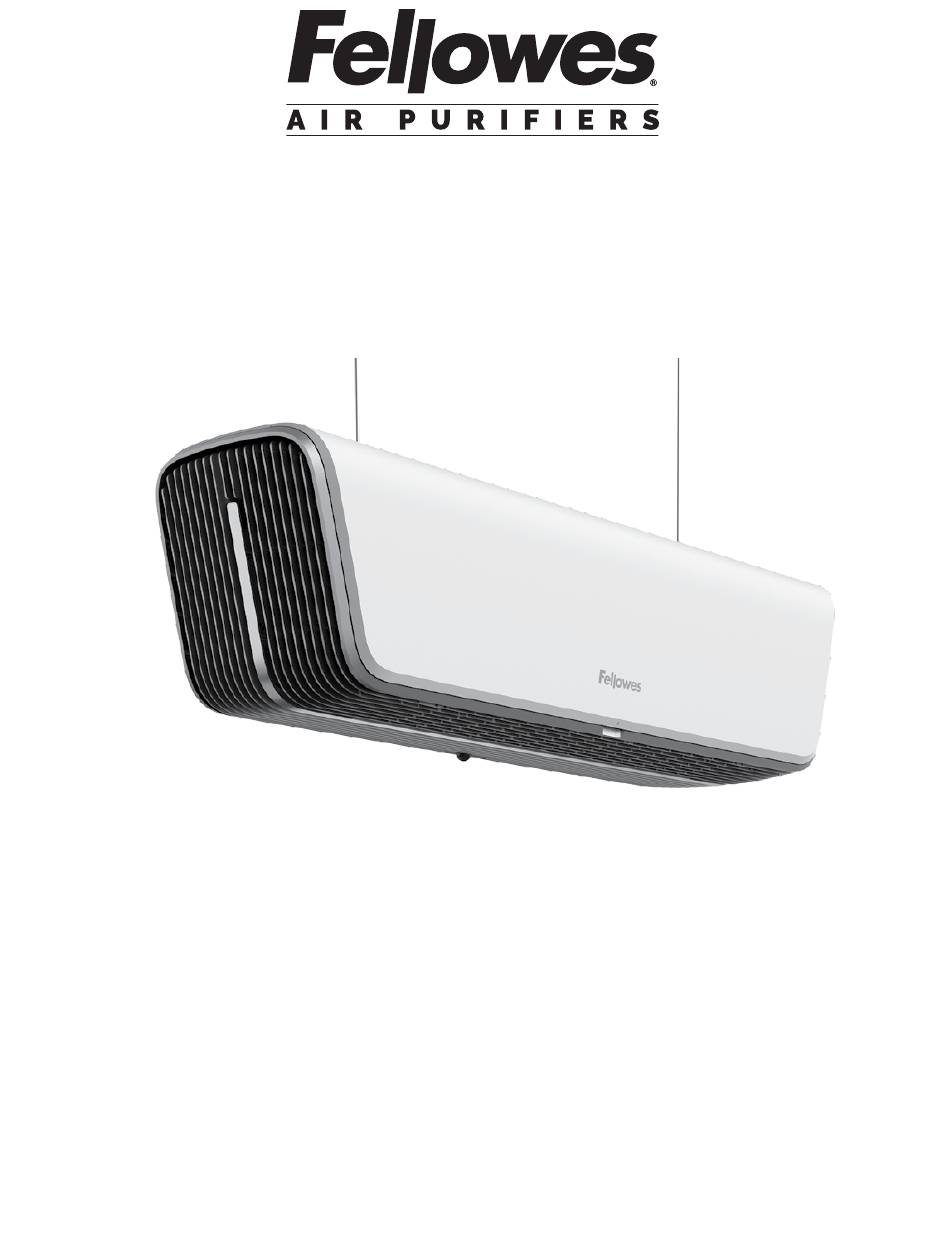

  • Page 1 Array AC2 Ceiling Mounted Air Purifier Purificateur d’air de plafond Purificador de aire montado en el techo Installation Guide Guide d’installation Guía de instalación PleaSe read theSe InStrUCtIonS beFore USe. do not dISCard: keeP For FUtUre reFerenCe. veUIllez lIre CeS InStrUCtIonS avant d’UtIlISer l’aPPareIl.
  • Page 2 • Open ceiling at least 10ft tall • Ladder/Step Stool • Mounting hooks or location installed to local code and capable of holding the weight of the system • Wire Nuts • Level NOTE: Three people are recommended for easy and proper installation NOTE: This product was designed for use in an open ceiling NOTE: Installation location and hardware must be capable of supporting 50lbs per anchor. If unsure, check with a qualified structural engineer. INSTALLATION INSTRUCTIONS Open unit door by peeling back the tape as Before beginning installation, ensure that a Remove unit from packaging and stage on qualified electrician has run a 120V circuit to needed and gently pulling outward on the temporary support trays on a tabletop or the installation area. bottom of the door panel. other surface under or near installation area. Take out the mounting hardware box and CAUTION: leave support trays on or verify included part quantity. you may damage the product. Fellowes strongly recommends a 4in, metallic, octagonal electrical box because it works best with the provided cover and strain relief. Disengage each filter clamp lever until a click is heard. NOTE: Locking/ unlocking motions are in opposite directions between left and right filter changing mechanisms.
  • Page 3 8 FT (2.4384 M)
  • Page 5 FILTER INSTALLATION PROCEDURE...
  • Page 6 Array AC2 Ceiling Mounted Air Purifier Purificateur d’air monté au plafond Purificador de aire de techo Owner’s Manual Manuel du propriétaire Manual del propietario PleaSe read theSe InStrUCtIonS beFore USe. do not dISCard: keeP For FUtUre reFerenCe. veUIllez lIre CeS InStrUCtIonS avant d’UtIlISer l’aPPareIl.
  • Page 7 ENGLISH *For a copy of the manual please visit www.fellowes.com IMPORTANT SAFETY INSTRUCTIONS — Read Before Using! Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain this product. Protect yourself and others by observing all safety information.
  • Page 8 CONTROLS NOTE: POWER – MANUAL – will start at lowest fan speed. CARBON FILTER – reset the life counter of the carbon filter. R button is for Right side. HEPA FILTER – – AUTO – set fan speed automatically depending on environment. RESET –...
  • Page 9 Pull each filter out by the strap and set aside for now. Remove new filters from protective bags and properly dispose of bags. is heard. properly aligned, the filter will not sit properly One at a time, holding each filter by the strap, Repeat steps for second filter.
  • Page 10: Troubleshooting

    Fellowes reserves the right to charge the consumer for any additional cost occurred by Fellowes to provide parts or service outside of the country where the Product was or to obtain service under this warranty, please contact us or your dealer.
