- Page 1 Array AW2/AeraMax Pro AM4/AM4 PC INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACIÓN Please read instructions carefully before installing Veuillez lire les instructions attentivement avant d’installer le produit Lea cuidadosamente las instrucciones antes de instalar...
- Page 2 ENGLISH 1. Access panel 2. Filters 3. Filter frame 4. Main Assembly 5. Power Switch 6. Access panel latch 7. Access panel lock 8. Rear housing assembly 9. Control panel Fig 1 10. Filter frame window...
-
Page 3: Tools Required For Installation
SAFETY WARNING: To avoid the risk of electrocution confirm the electrical supply has been disconnected or switched off before beginning any installation work. Confirm no electrical wiring, utility pipes, or duct work is located directly behind the installation / drilling area. On a stud wall, it is strongly recommended at least 2 mounting anchors for the air purifier be mounted to an existing stud. - Page 4 MOUNTING REAR HOUSING AND MAIN ASSEMBLY Test the electrical outlet box first to ensure rated power requirements are met before beginning installation. Remove air purifier from its shipping carton and remove all packing material. Fig 3 Fig 4 Fig 5 Fig 6 Open access panel and remove Place the air purifier face up on a...
- Page 5 MAIN ASSEMBLY INSTALLATION WARNING: To avoid the risk of electrocution confirm the electrical supply has been disconnected or switched off before continuing any installation work. Fig 12 Fig 13 Fig 14 Fig 15 Carefully align the main assembly with the rear housing assembly. housing to the main housing once Slowly press into place until snap is the assemblies are fully seated.

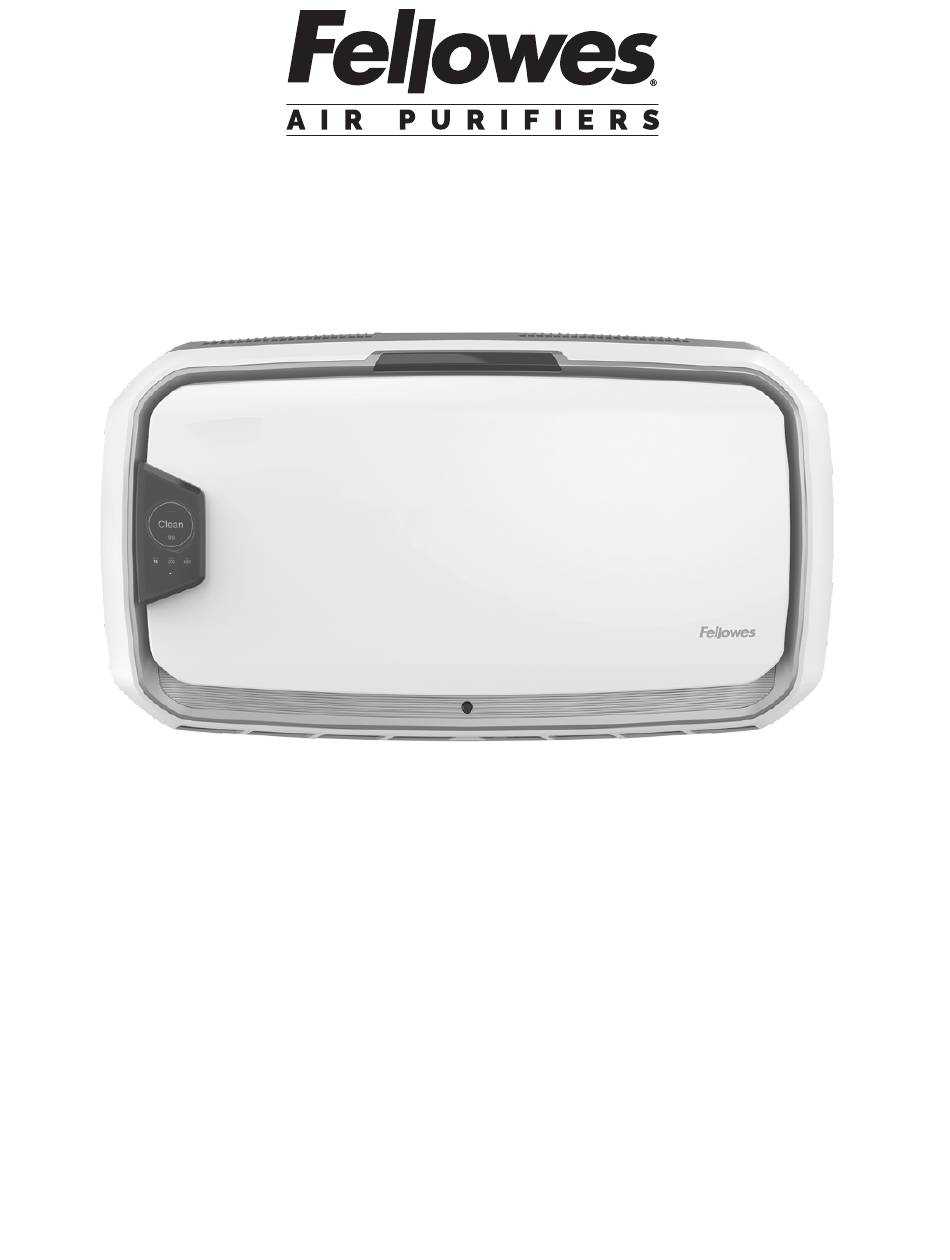

- Page 6 Array AW2 Wall Mounted Air Purifier Purificateur d’air mural Purificador de aire montado en la pared PLEASE READ THESE INSTRUCTIONS BEFORE USE. DO NOT DISCARD: KEEP FOR FUTURE REFERENCE. VEUILLEZ LIRE CES INSTRUCTIONS AVANT D’UTILISER L’APPAREIL. NE PAS JETER : CONSERVER AFIN DE CONSULTER LES DIRECTIVES ULTÉRIEUREMENT, EN CAS DE BESOIN.
- Page 7 • Do not wash and reuse any of the filters. the manufacturer (e.g. parts made at home using a 3D printer). • Do not use attachments or filters other than Fellowes brand, as unit will not function. • Do not spray aerosols on, or into the unit.
-
Page 8: Packaging Contents
PRODUCT SPECIFICATIONS Dimensions 19.5 X 34.8 X 9.5 in 495 X 884 X 241 mm Weight of System 35.0 lbs 15.9 Power Requirements AC 120V 60Hz 2.5A Watts (5 fan speeds) 200W PACKAGING CONTENTS • Air Purifier (1) • Registration information •... -
Page 9: Screen Controls
Unit will notify you when filter needs to be changed with a red light visible on the control panel. Always wear a mask and gloves when performing a filter change. For replacement filters, please visit www.fellowes.com Unlock access panel: to unlock, insert the key... -
Page 10: Maintenance And Cleaning
In the event that the Product is installed into new construction, the warranty period shall commence on the date of the occupancy permit or one year after the date of purchase, whichever is earlier. If any part is found to be defective during the warranty period, Fellowes will (at its sole option) either repair or replace the defective product with no charge for service or parts.
