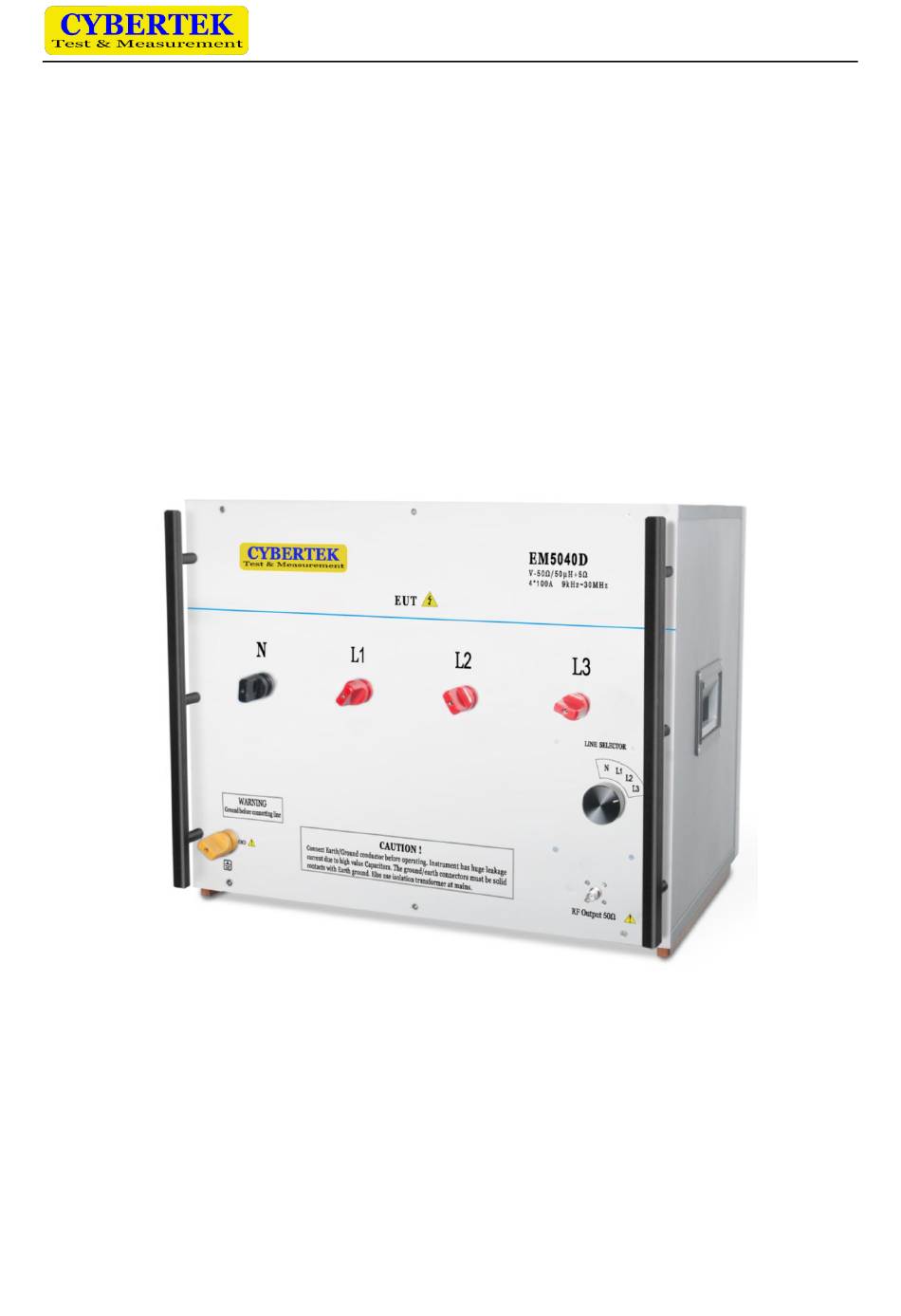

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. Three Phase LISN EM5040D (9kHz-30MHz/100A) Shenzhen Zhiyong Electronics Co., Ltd. www.cybertek.cn...
- Page 2 Shenzhen Zhiyong Electronics Co., Ltd. Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;...
- Page 3 Shenzhen Zhiyong Electronics Co., Ltd. 1. Summary EM5040D is a kind of （50uH+5Ω）||50Ω Type V Three Phase High Power LISN (Line Impedance Stable Network). This product can provide stable resistance between EUT and reference ground in the RF range of 9kHz-30MHz and insulated the circuit under test from the useless signal from the electric network, coupling only the interference voltage of the EUT to the input interface of the test receiver.
- Page 4 Shenzhen Zhiyong Electronics Co., Ltd. 4. EM5040D Product Instruction Front Panel N/L1/L2/L3: Power Supply output to EUT LINESELECTOR: Select the test channel RFOUTPUT: Signal output GND Binding Post: This binding post can be connected to the ground of the lab to release the leakage current from the capacitor safely.
- Page 5 To provide better safety protection, we suggest three phase high power insulated transformer (100A per phase) in front. When the current of EUT is too high and cause severe heating of the LISN, extra fan is required for cooling process. Shielded Room Receiver EM5040D Insulated Filter Power supply LISN Transformer Input 6.
- Page 6 Shenzhen Zhiyong Electronics Co., Ltd. CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD Addr： Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 +86-755-86628000 Q Q: 400 852 0005 Fax: +86)0755-8662 0008 ©...
