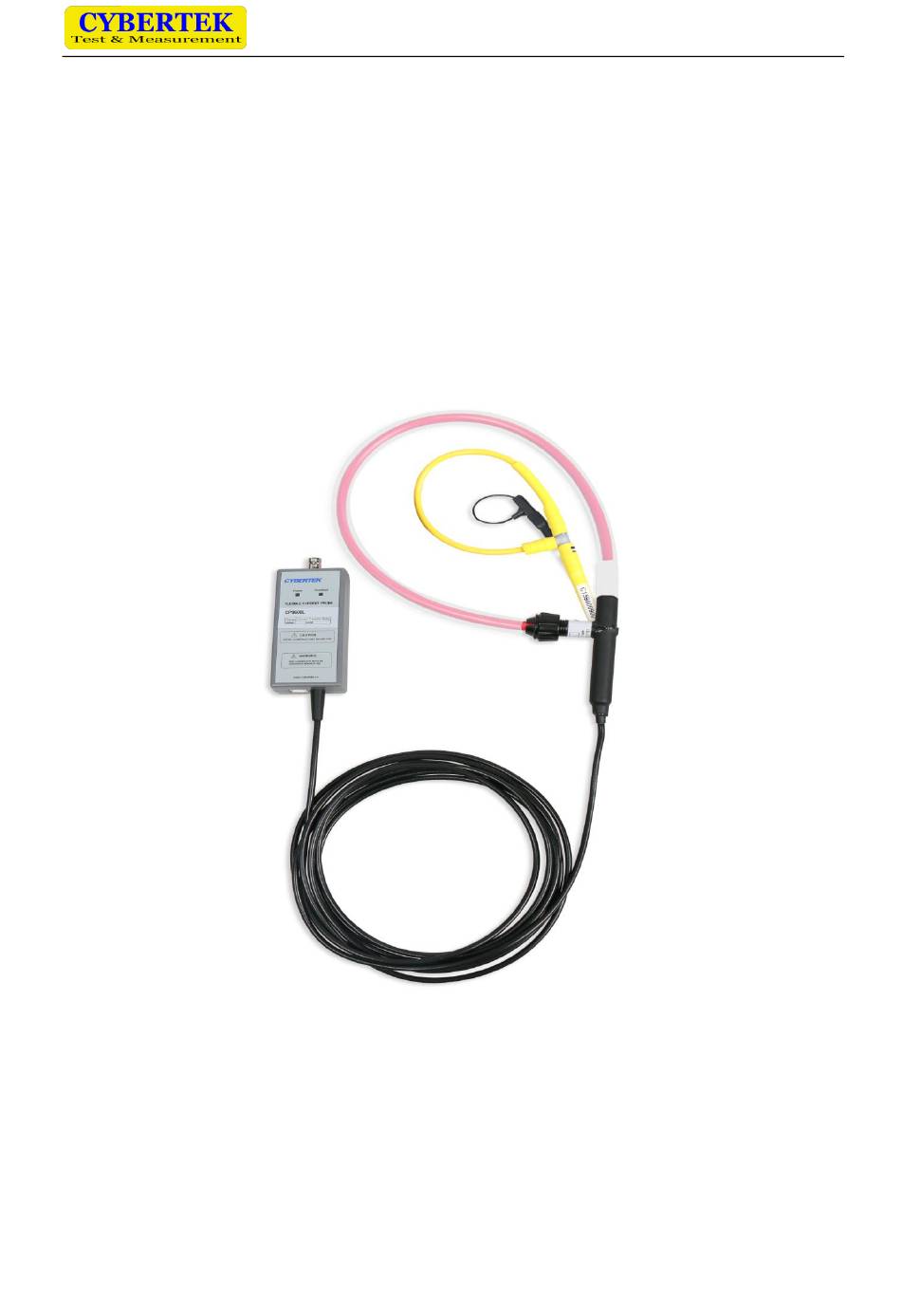

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. Flexible Current Probe CP9000（S/L） Shenzhen Zhiyong Electronic Co., Ltd www.cybertek.cn...
- Page 2 Shenzhen Zhiyong Electronics Co., Ltd. Contents Summary…………………………………………………………………………….………...…2 Application…………………………………………………………………………………….…2 Electrical Specifications………………………………………………………………….....3 Products and Accessories……………………………………………………………………...…4 Products…………………………………………………………………………..…….…..4 Accessories…………………………………………………………………….….…..……5 Typical Mechanical Specifications ………………..…………………………..………..……….6 Environment Specifications……………………………..………………………………...……..6 Measurement Procedure………………………….………..…………………………. …..….…6 Attentions..……………………………………………………………………………….…..….6 Care and Maintenance …………………………………………..………………….….….…..7 Service Strategy……………………………………………………………..……….….…….…7 Packing List…………………………………………………………………….…...….….…….7...

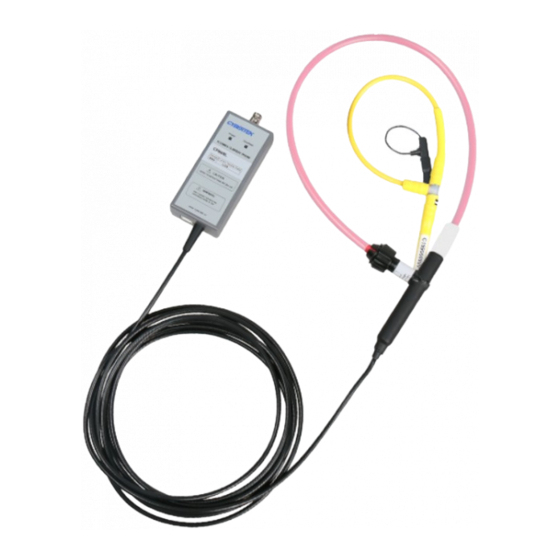

- Page 3 CP9000S Series: Has an extremely thin, clip-around Rogowski coil of typically 1.6mm cross-section. Such a thin coil enables currents to be measured in the most difficult to reach parts of a power Electronic converter with negligible disruption to the circuit under test.
- Page 4 Shenzhen Zhiyong Electronics Co., Ltd. Electrical Specifications Measuring conditions：23℃；60%RH；with conductor central in the loop. 3.1 CP9000S Series Peak Droop Accuracy Insulation Sensitivity Noise max Model Current di/dt typ. bandwidth bandwidth typ. voltage (mV/A) (mV Vpp) （kA） (kA/µS) (%/ms) -3dB(Hz) -3dB(MHz) CP9003S 0.03...
- Page 5 Shenzhen Zhiyong Electronics Co., Ltd. 3.4 CP9000(S/L) Series ±6Vpk Max. output voltage ≥100kΩ Terminal load Power supply USB 5V Safety standard EN61010-1:2010 EMC standard EN61326-1:2013;EN61000-3-2:2014;EN61000-3-3:2013 Products and Accessories 4.1.1 CP9000S Products Output Interface: standard BNC interface, connect to any manufacturer oscilloscope with the BNC Cable.
- Page 6 Shenzhen Zhiyong Electronics Co., Ltd. Output Interface: standard BNC interface, connect to any manufacturer oscilloscope with the BNC Cable.Power indicator LED: When the power adapter is plugged ,the green LED lights. Overload indicator LED: When the current measured exceed the range, the red LED lights and the buzzer alarms.
- Page 7 Shenzhen Zhiyong Electronics Co., Ltd. Typical Mechanical Specifications Type CP9000S CP9000 CP9000L Coil circumference 80mm 200mm 600mm Coil cross Section 1.6mm 3.8mm Coil diameter 25mm 55mm 150mm Cable length 1m(standard accessory) ,2m(optional accessory) BNC cable Integrator box dimension 119*49*28mm 1.5m USB power cable（AM-BM）...
- Page 8 Test Report 1 (optional accessory) BNC Cable（CK-320） USB 5V Mobile Power 1 (optional accessory) CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD Addr： Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005...
