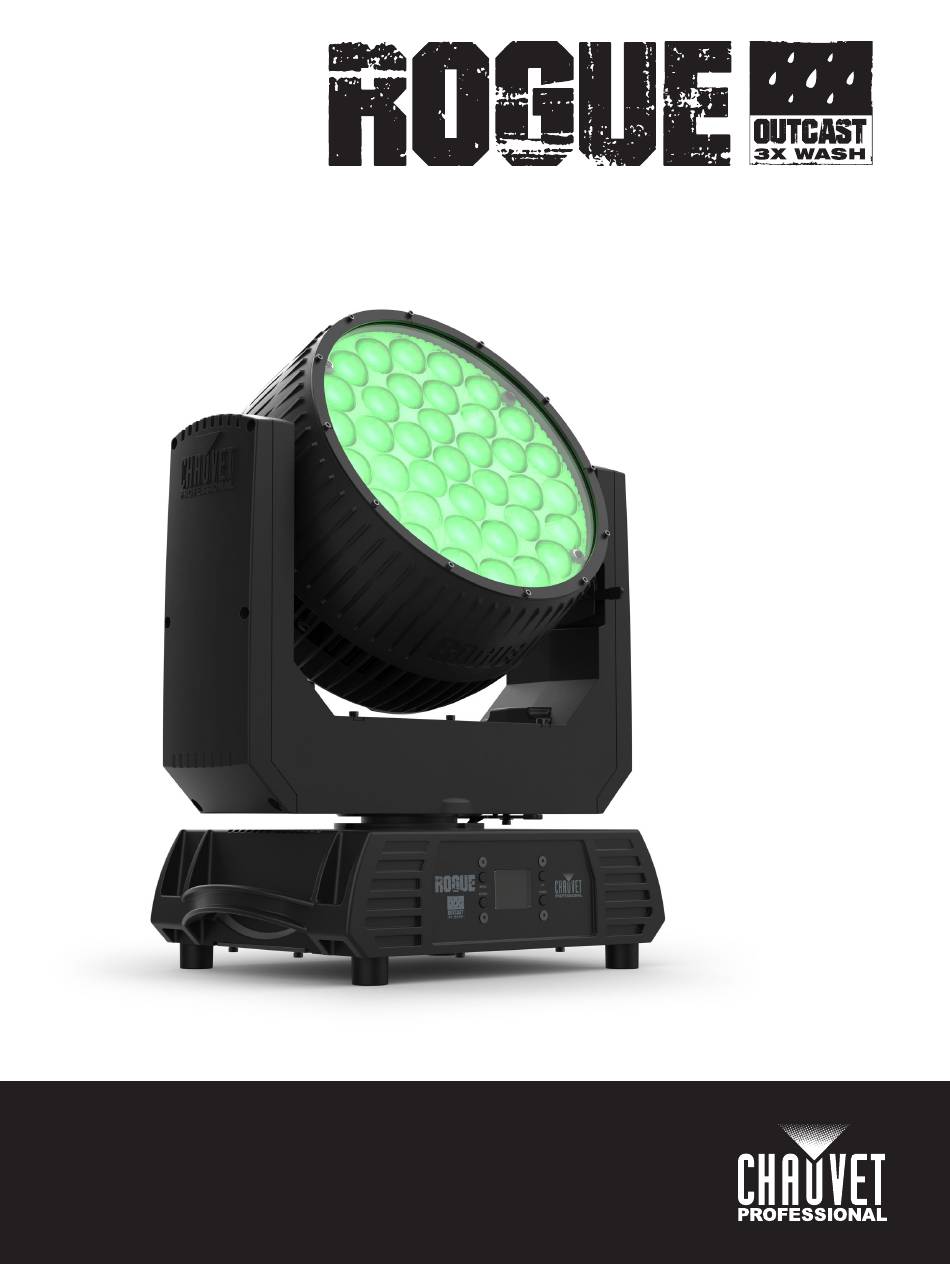

  • Page 1 User Manual Model ID: ROGUEOUTCAST3XWASH...

  • Page 2: Edition Notes

    Chauvet, Chauvet Professional, the Chauvet logo, Rogue, and Outcast are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    Starting Address....................13 Control Channel Assignments and Values............ DMX Values ....................... 14 Color Chart......................21 Gobo Values ...................... 21 LED Built-ins ...................... 22 Test Mode ..................... Auto Test......................23 Manual Test ....................... 23 Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 4 Zero Adjust Mode..................Error Codes....................5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ Transporting on Truss or Racks..............6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate a claim. In addition, keep the box and contents for inspection.

  • Page 6: Safety Notes

    • In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 7: Fcc Statement Of Compliance

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 8: Introduction

    2. Introduction Description Rogue Outcast 3X Wash brings a fast zoom from beam to wash, the power to punch through fog or haze, and alloy-armored IP65-rated durability that withstands the elements, from dust to rain, indoors or out. Offering the convenience of selecting simple or complex DMX personalities, this versatile workhorse suits the widest range of applications, including on-camera use with its user-selectable calibrated white.

  • Page 9: Product Overview

    Introduction Product Overview Name Name Menu buttons 5-pin DMX out OLED display Fuse Carrying handles Seetronic power out USB port Seetronic power in 5-pin DMX in Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 10: Product Dimensions

    10.08 in 256 mm 15.59 in 396 mm 11.61 in 295 mm 7.28 in 187 mm 11.50 in 292 mm 17.20 in 434 mm 4.41 in 112 mm 14.25 in 362 mm Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 11: Setup

    4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link Rogue Outcast 3X Wash products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz...

  • Page 12: Remote Device Management

    USB Software Update The Rogue Outcast 3X Wash allows for software updates with a USB device using the built-in USB port. To update the software using a USB type C flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port.

  • Page 13: Mounting

    When power linking multiple products, mount the products close enough for power-linking cables to reach. Procedure The Rogue Outcast 3X Wash comes with a two 140D Omega brackets. The user can directly attach a mounting clamp (sold separately) to this Omega bracket. Make sure the clamp is capable of supporting the weight of this product.

  • Page 14: Operation

    <ENTER> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the Rogue Outcast 3X Wash starting address in the 001–512 DMX range. Programming Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option.
  • Page 15 Square Dimmer Set the dimmer curve Curve I Squa SCurve Smooth Smooth dimmer speed Dimmer Speed Fast Fast dimmer speed 600Hz 1200Hz 2000Hz PWM Option Sets the PWM frequency 4000Hz 6000Hz 15000Hz Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 16 Head Fan1 Shows head fan 1 information Head Fan2 Shows head fan 2 information Base Fan1 Shows base fan 1 information Base Fan1 Shows base fan 2 information XFAN1 Shows XFAN1 information Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 17: Dmx Configuration

    To set the starting address in DMX mode: 1. Go to the DMX Address main level. 2. Select the starting address (001–512). Personality Highest Address 21Ch 62Ch 71Ch 107Ch Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 18: Control Channel Assignments And Values

    210  224 Strobe 9 (fade on or off) with decreasing speed 225  229 Open 230  244 Strobe 10 (pulse strobe) with decreasing speed 245  255 Open No function 245  255 10,000K to 2800K Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 19 170  174 White mode off 175  255 No function Cyan 000  255 0–100% / 100–0% Fine Red Fine Cyan 000  255 Fine control (16-bit) Green Magenta 000  255 0–100% / 100–0% Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 20 000  255 0–100% / 100–0% Fine Blue 6 Fine Yellow 6 000  255 Fine control (16-bit) White 6 000  255 0–100% / 100–0% Fine White 6 000  255 Fine control (16-bit) Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 21 000  255 0–100% / 100–0% Fine Blue 9 Fine Yellow 9 000  255 Fine control (16-bit) White 9 000  255 0–100% / 100–0% Fine White 9 000  255 Fine control (16-bit) Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 22 000  255 0–100% – Background Green 000  255 0–100% – Background Blue 000  255 0–100% – Background White 000  255 0–100% Zoom 000  255 Narrow to wide Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 23 000  255 0–100% / 100–0% – Blue 3 Yellow 3 000  255 0–100% / 100–0% – White 3 000  255 0–100% – – Dimmer 4 000  255 0–100% Rogue Outcast 3X Wash User Manual Rev. 1...
  • Page 24 000  255 0–100% / 100–0% – Green 9 Magenta 9 000  255 0–100% / 100–0% – Blue 9 Yellow 9 000  255 0–100% / 100–0% – White 9 000  255 0–100% Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 25: Color Chart

    Gobo 81 082  084 Gobo 26 166  168 Gobo 54 250  252 Gobo 82 085  087 Gobo 27 169  171 Gobo 55 253  255 Gobo 83 Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 26: Led Built-Ins

    202  203 Built-in 70 082  083 Built-in 34 204  205 Built-in 71 084  085 Built-in 35 206  255 Built-in 72 (main) 086  135 Built-in 36 (main) Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 27: Test Mode

    Operation Test Mode Auto Test To have the Rogue Outcast 3X Wash automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option. Manual Test To manually test an individual function of the Rogue Outcast 3X Wash: 1.

  • Page 28: Dimmer Speed

    See the USB Software Update section for the detailed instructions on how to update the Rogue Outcast 3X Wash software using a USB-C connection. Reset Function To reset specific functions or the entire product: 1. Go to the Setup main level.

  • Page 29: System Information

    2. Enter the passcode: 2323 and press <ENTER>. 3. Select the “zero” position to adjust, from PAN, TILT, ZOOM, RDM4, RDM5, or RDM6. 4. Adjust the “zero” position for the selected function from 000–255. Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 30: Error Codes

    Y_cm Pan/tilt driver board is damaged Replace the pan/tilt driver board Tilt optocoupler board is damaged Replace the tilt optocoupler board Y_op Pan/tilt driver board is damaged Replace the pan/tilt driver board Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 31: Maintenance

    Allen Key screws holding in front lens cover 10.2 Allen Key screws around head fan 15.3 13.3 Vacuum Test Measurements Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure 2.18 kPa...

  • Page 32: Transporting On Truss Or Racks

    This is to prevent undue stress on the tilt locks and limit the amount of off-axis bounce on internal components. Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 33: Technical Specifications

    Channel Range 5-pin XLR 21, 62, 71, or 107 Ordering Product Name Item Name Item Code UPC Number Rogue Outcast 3X Wash ROGUEOUTCAST3XWASH 08012354 781462227029 UL 1573 CSA C22.2 No. 166 E113093 Rogue Outcast 3X Wash User Manual Rev. 1...

  • Page 34: Contact Us
