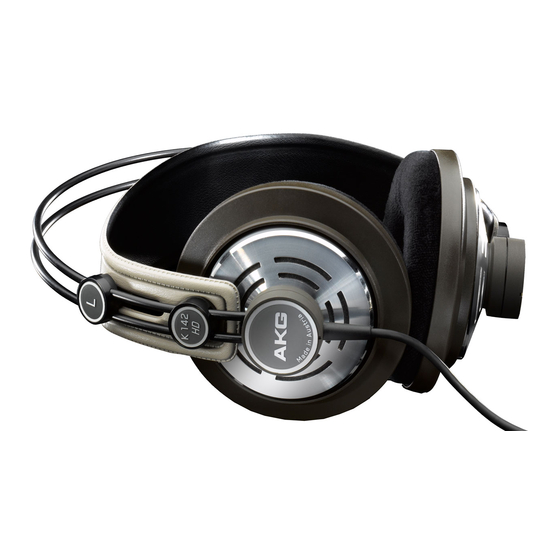

AKG K142HD Service Manual

AKG K142HD Service Manual

Akg acoustics wireless headphone service manual

Advertisement

Quick Links

K142 HD
AKG Service Department, Lemböckgasse 21-25, A-1230 Wien, Austria.Tel.: (431)86654-0, FAX: (431)86654-1514, e-mail:
23
29
26
13
30
28
Service Manual
1
2
19
8 21
22
red/rot
yellow/gelb
red/rot
white/weiß
8
3
8 4
6
5
17
18
Please take care that the wires
are routed as in the picture.
Bitte beachten Sie daß die
Litzen der Kapsel wie im Bild
verlegt sein müssen.
2144Z00230
service@akg.com
27
26
7
15
16
20
25
04/08
28
10
11
9
12
14
25
24
1/2

Advertisement

loading
Need help?

Need help?

Do you have a question about the K142HD and is the answer not in the manual?

Questions and answers

Summary of Contents for AKG K142HD

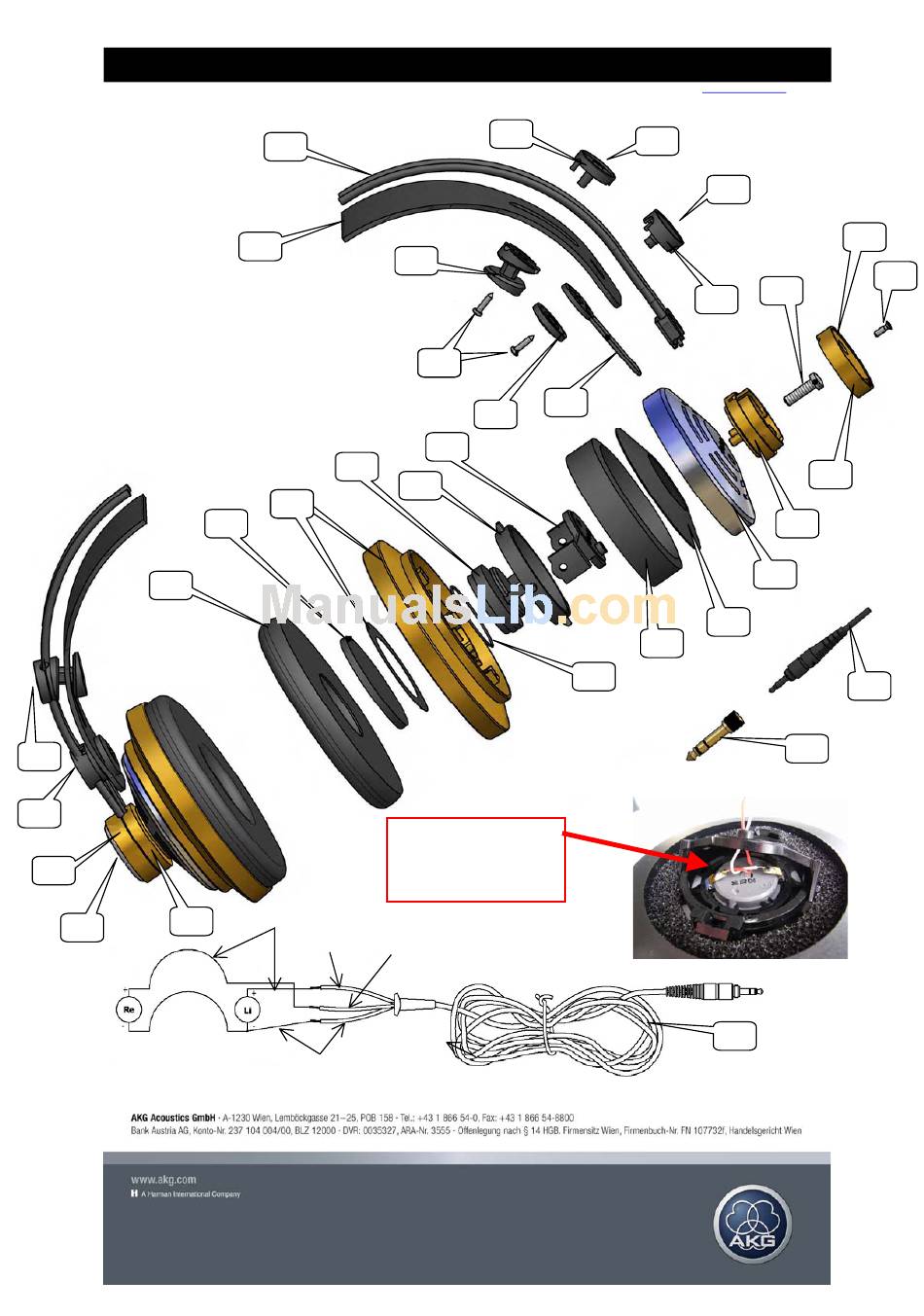

  • Page 1 K142 HD Service Manual AKG Service Department, Lemböckgasse 21-25, A-1230 Wien, Austria.Tel.: (431)86654-0, FAX: (431)86654-1514, e-mail: red/rot 8 21 Please take care that the wires are routed as in the picture. Bitte beachten Sie daß die Litzen der Kapsel wie im Bild verlegt sein müssen.
