Leon's L2 MOTION LUX Owner's Manual

Hide thumbs Also See for L2 MOTION LUX:

Advertisement

Table of Contents

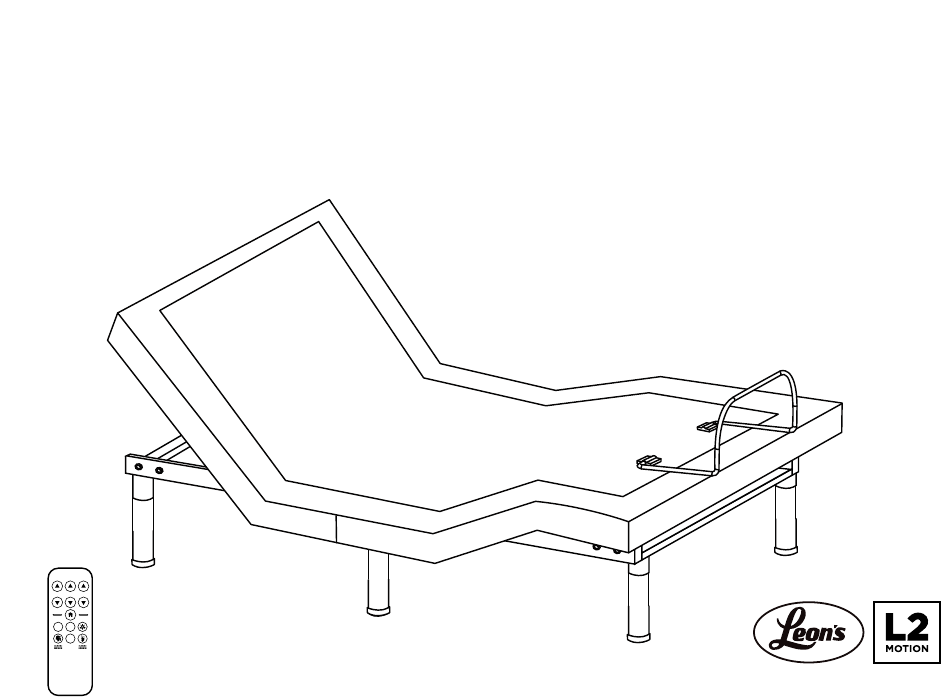

OWNER'S MANUAL
L2 MOTION LUX
HEAD
FOOT LUMBAR
1
2
STOP
LPB13WM Rev 7.0 01/2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L2 MOTION LUX and is the answer not in the manual?

Questions and answers

Bill Brooks
June 3, 2025

Resync remote with unit, have followed the instruction several times and the remote does not sync….fresh batteries have been installed…any suggestions?

0

Subscribe to Our Youtube Channel

Related Manuals for Leon's L2 MOTION LUX

Summary of Contents for Leon's L2 MOTION LUX

  • Page 1 OWNER’S MANUAL L2 MOTION LUX HEAD FOOT LUMBAR STOP LPB13WM Rev 7.0 01/2025...

  • Page 2: Accessory Box

    Setup the power foundation without the bed frame. Take out all the accessories from the packaging and put them aside. All electronics and components that need to be installed are located in Open the box lid. boxes under the foundation or attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for.
  • Page 3 A R D D B O H E A Keep the bed folded. Flip over the bed with the bottom box on and let the bed stand on the 4 legs. Move the box away. A R D D B O H E A Install the remaining 2 legs on the foot end of the bed, make sure the legs are tight.
  • Page 4 WARNING! PLEASE MAKE SURE TO FOLLOW ALL THE STEPS IN 6/1 AND 6/2(REMOVE THE TRANSPORT LIMIT WRENCH) , OR IT WILL DAMAGE TO YOUR POWER FOUNDATION.PLEASE MAKE SURE YOU FOLLOW THE INSTRUCTIONS CAREFULLY BEFORE UNFOLDING YOUR POWER FOUNDATION. A R D Please tear off the reminder card and red ribbon D B O and read the information on the reminder card carefully.
  • Page 5 Install the mattress retainer bar Make the bed completely flat. one side after another. A R D D B O H E A Insert the batteries into Make sure the AC power cord is not connected to the AC power the remote control.
  • Page 6 Setup the power foundation with the bed frame and slat base. A R D D B O H E A Take the bed out of the box, put it on the slat base, do not install any legs. Keep the bed folded. A R D D B O H E A...
  • Page 7 WARNING! PLEASE MAKE SURE TO FOLLOW ALL THE STEPS IN 3/1 AND 3/2(REMOVE THE TRANSPORT LIMIT WRENCH) , OR IT WILL DAMAGE TO YOUR POWER FOUNDATION.PLEASE MAKE SURE YOU FOLLOW THE INSTRUCTIONS CAREFULLY BEFORE UNFOLDING YOUR POWER FOUNDATION. A R D D B O Please take the reminder card and red ribbon H E A...
  • Page 8 A R D D B O Pull the DC power cord towards the direction of the AC power Install the mattress retainer bar H E A source through either the bottom or the side of the bed frame. one side after another. Make the bed completely flat with a flipping motion.

  • Page 9: One-Touch Button

    Remote Control Instructions Pairing Remote The original remote that comes in the box is already paired to the foundation. No further action is required. HEAD FOOT LUMBAR In the event when the remote is not paired with the foundation, follow the pairing instructions below. Lifts STOP HEAD...

  • Page 10: Wireless Receiver

    Electronics Quick Reference Guide WIRELESS RECEIVER Sync Cord Charger Power Cord Power Supply CB18B Control Box Power Cord HD Motor FT Motor LB Motor HD Massage FT Massage Head Motor Foot Motor Lumbar Motor Head Massage Foot Massage...

  • Page 11: Back Lights

    Synchronizing Two Foundations If simultaneous operation of two foundations is desired, please follow the steps listed below. Note the sync cord is needed to control two foundations with mobile APP, follow the "Synchronizing Two Foundations with Sync Cord" instruction to install the sync cord or follow the "Wireless Syncing Instruction". Instructions for Synchronization Using The Sync Cord STEP 1：Unplug foundations from the power source.
  • Page 12 L2 Motion Mobile App (Optional) L2 Motion App Home Screen Home Screen General Information SELECT DEVICE SETTINGS Serial Number List of L2 Motion Products within the connection range* L2 Motion Mobile App is a mobile application to control the L2 Motion Power Foundation with DISCONNECT Tap the Refresh Button to refresh mobile devices.
  • Page 13 Headboard Bracket Installation Guide (Optional) Headboard brackets are optional and not included. A 1/2” (13mm) Repeat Step 1 to 2 to install the other headboard bracket on the other side of the bed. socket wrench and 1/2” (13mm) wrench are required to complete the installation.
  • Page 14 Spacing Connector for TXL (Optional) Product Serial Number (Figure B) Install two spacing connectors to ensure the gap between the two Each power foundation has its unique serial number. The serial power foundations is consistent. number can be found on the metal (2) SPACING CONNECTOR (TXL ONLY) frame near the legs at the foot area.
