Leon's L2 MOTION Owner's Manual

Hide thumbs Also See for L2 MOTION:

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
L2 MOTION
LPB2NM Rev 4.0 01/2025

Advertisement

loading
Need help?

Need help?

Do you have a question about the L2 MOTION and is the answer not in the manual?

Questions and answers

Paula Smith
April 12, 2025

How can I turn off the two sets of blue lights that are under the bed base at outer corners at the head of the bed base.

0
1 comments:
Mr. Anderson
April 12, 2025

To turn off the blue lights under the Leon's L2 MOTION bed base, press and hold the HEAD and FOOTLUMBAR buttons on the remote at the same time for 5 seconds or until the blue backlights turn off.

This answer is automatically generated

0

Related Manuals for Leon's L2 MOTION

Summary of Contents for Leon's L2 MOTION

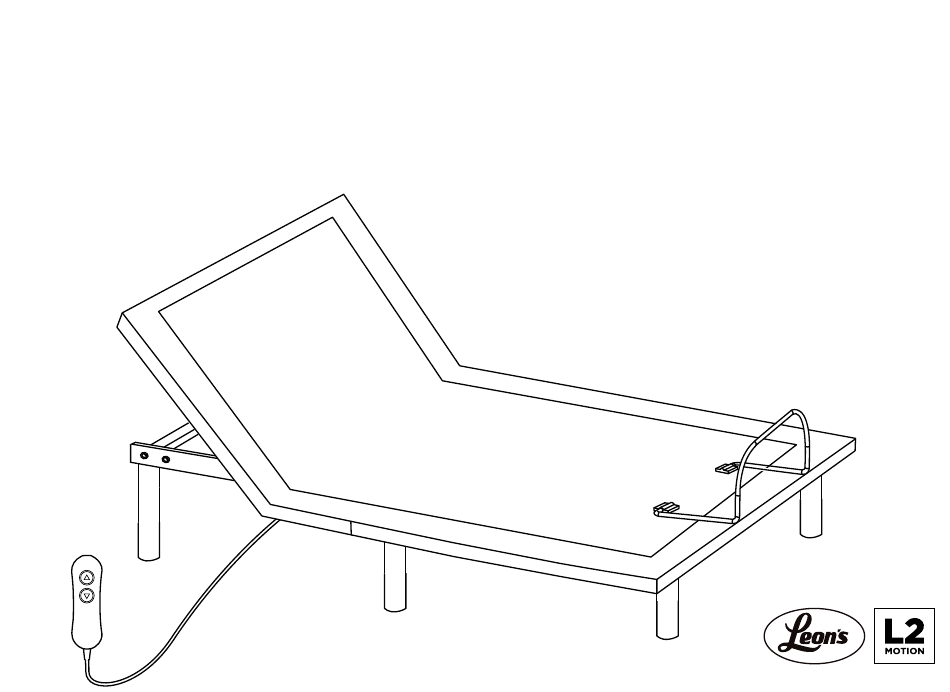

  • Page 1 OWNER’S MANUAL L2 MOTION LPB2NM Rev 4.0 01/2025...

  • Page 2: Accessory Box

    Setup the power foundation without the bed frame. Take out all the accessories from the packaging and put them aside. All electronics and components that need to be installed are Open the box lid. located in boxes under the foundation or attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for.
  • Page 3 A R D D B O H E A Keep the bed folded. Flip over the bed with the bottom box on and let the bed stand on the 4 legs. Move the box away. A R D D B O H E A Install the remaining 2 legs on the foot end of the bed, make sure the legs are tight.
  • Page 4 WARNING! PLEASE MAKE SURE TO FOLLOW ALL THE STEPS IN 6/1 AND 6/2(REMOVE THE TRANSPORT LIMIT WRENCH) , OR IT WILL DAMAGE TO YOUR POWER FOUNDATION.PLEASE MAKE SURE YOU FOLLOW THE INSTRUCTIONS CAREFULLY BEFORE UNFOLDING YOUR POWER FOUNDATION A R D D B O H E A Please tear off the reminder card and red ribbon and...
  • Page 5 Make the bed completely flat. Install the mattress retainer bar one side after another. A R D D B O H E A Connect the hand control and secure it with the connector lock. Make sure the AC power cord is not connected to the AC power source.
  • Page 6 Setup the power foundation with the bed frame and slat base. *NOTE: Optional parts are needed. STABILIZER BRACKETS COMPONENTS (OPTIONAL PARTS) Middle Stabilizer (2) Stabilizer Bracket (8) ST4.2×16 Screw (4) M8×16 Bolt (4) 8mm ID Washer Socket Wrench Bracket Take the bed out of the box, put it on the slat base, Connect the hand control and secure it with the connector lock.
  • Page 7 Turn over the bed. Install the middle stabilizer bracket STABILIZER BRACKET COMPONENTS as shown. (*Optional parts are needed. ) ST4.2×16 Middle Stabilizer Screw Bracket A R D D B O H E A Metal Frame Of The Bed ST4.2×16 Screw Slat Base...
  • Page 8 WARNING! PLEASE MAKE SURE TO FOLLOW ALL THE STEPS IN 4/1 AND 4/2(REMOVE THE TRANSPORT LIMIT WRENCH) , OR IT WILL DAMAGE TO YOUR POWER FOUNDATION.PLEASE MAKE SURE YOU FOLLOW THE INSTRUCTIONS CAREFULLY BEFORE UNFOLDING YOUR POWER FOUNDATION A R D D B O H E A Please tear off the reminder card and red ribbon and...
  • Page 9 A R D D B O Make the bed completely flat with a flipping motion. Install the mattress retainer bar one side after another. H E A A R D D B O H E A Connect the power supply to the AC power source. AC Power Source A R D D B O...
  • Page 10 Lift the head of the bed by hand control. Install the two STABILIZER BRACKETS COMPONENTS stabilizer brackets as shown. Stabilizer Socket ST4.2×16 M8×16 8mm ID (*Optional parts are needed.. ) Bracket Wrench Screw Bolt Washer O A R M8×16 Bolt H E A 8mm ID Washer...

  • Page 11: Headboard Bracket Installation Guide (Optional)

    Headboard Bracket Installation Guide (Optional) Headboard brackets are optional and not included. A 1/2” (13mm) Repeat Step 1 to 2 to install the other headboard bracket on the other side of the bed. socket wrench and 1/2” (13mm) wrench are required to complete the installation.
  • Page 12 Spacing Connector for TXL (Optional) Product Serial Number (Figure B) Install two spacing connectors to ensure the gap between the two Each power foundation has its unique serial number. The serial adjustable bases is consistent. number can be found on the metal (2) SPACING CONNECTOR (TXL ONLY) frame near the legs at the foot area.
