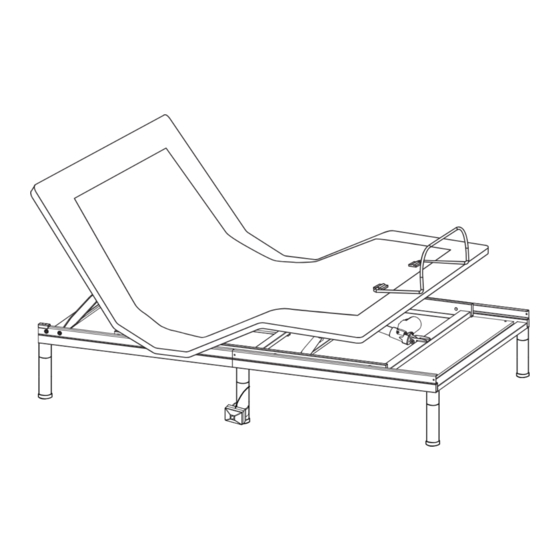

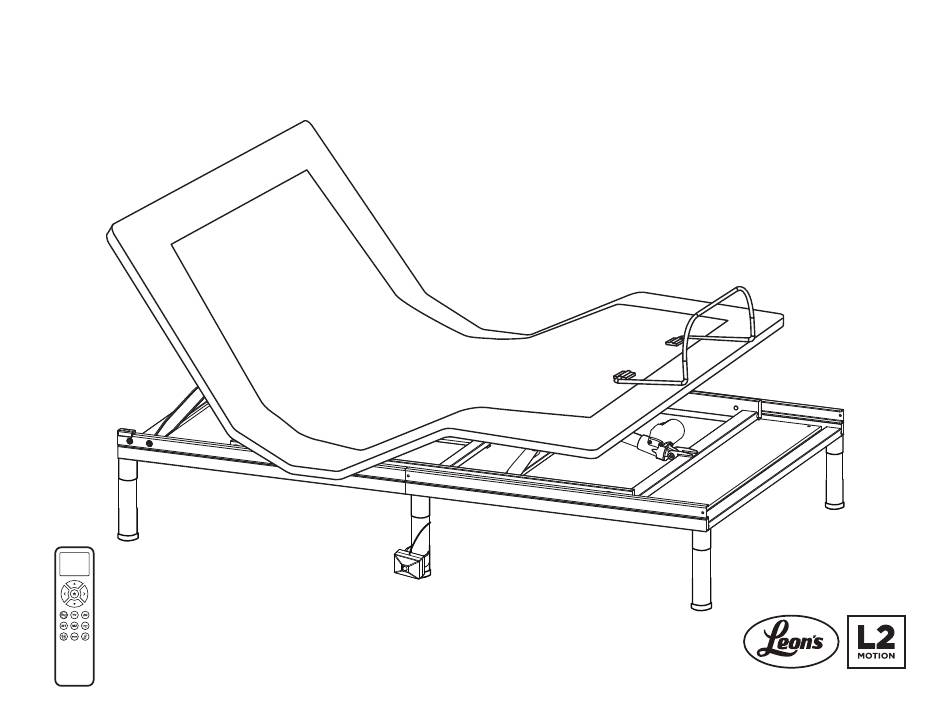

- Page 1 OWNER’S MANUAL L2 MOTION HORIZON ZSF14W4MS Rev 3.0 07/2023...
-
Page 2: Accessories Box
Installation Guide Take out all the accessories from the packaging and put them aside. All electronics and components that need to be installed are located in boxes under the foundation or Open the box lid. attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for. - Page 3 Install 4 (5 for K/CK) legs, make sure Remove the red plastic safety lock before unfolding your power foundation. the legs are tight. (This leg is only used for Remove the red plastic Turn the locking pin 90° in Remove the folding locking K/CK) A R D safety clip.
- Page 4 Lay the bed folded on a flat ground. Remove the red plastic protective blocks . Red Plastic Protective Block H E A D B O A R WARNING! WHEN FOLDED, MUST REMOVE THE PIN. FAILURE TO FOLLOW THE STEP WILL RESULT IN DAMAGE TO YOUR POWER FOUNDATION.

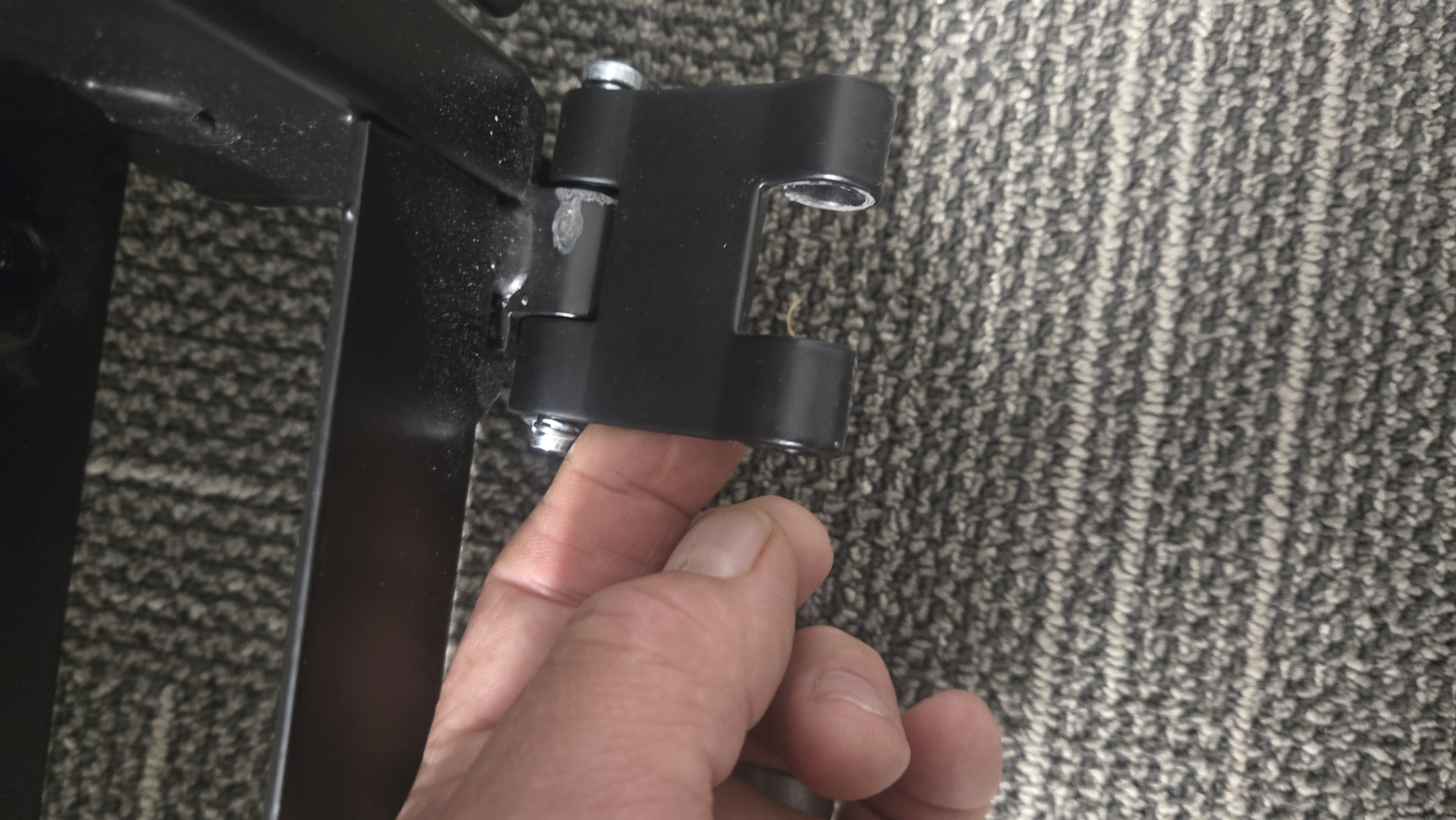

- Page 5 Flip and secure the bed frame. F) Remove the pins from E) Unfold the bed and both sides. lay it on a flat ground. H E A D B O A R H E A D B O A R H) Insert the pins on both sides.
- Page 6 Motion sensor installation Motion Mounting Sensor Bracket Prepare the motion sensor hardware. STEP 1: Connect the motion STEP 2: Rotate the STEP 3: mounting bracket 90 sensor to the mounting degrees clockwise bracket. DONE ! Connect the motion sensor connectors. STEP 1: Clip the mounting bracket onto the center adjustable legs as illustrated.
- Page 7 Uncoil the DC power cord (connected to the control box) and the AC power cord. Connect the DC power cord to the power supply and then Install the mattress retainer bar connect the power supply to the AC power source. one side after another.
-
Page 8: Control Box
Electronics Quick Reference Guide If simultaneous operation of two foundations is desired, please Remote Control follow the steps listed below. Note the sync cord is needed to control two foundations with mobile APP, follow the "Synchronizing Two Foundations with Sync Cord"... -
Page 9: Battery Level
Remote Control Instructions Pairing Remote The original remote that comes in the box is already paired to the foundation. No further action is required. In the event when the remote is not paired with the foundation, follow the pairing instructions below. STEP 1：... -
Page 10: Headboard Bracket Installation Guide (Optional)
Slat Pack Installation Guide (Optional) Align the slot hole of the headboard bracket into Headboard bracket the holes of the bed frame. Leg Configuration Table The headboard bracket has an adjustable slot to accommodate any frame type. Use the bolts and washers to secure the bracket. - Page 11 L2 Motion Mobile APP（Optional） L2 Motion APP Home Screen General Information Home Screen SELECT DEVICE SETTINGS Serial Number List of Products within the connection range* L2 Motion Mobile APP is a mobile application to control the L2 Motion Adjustable DISCONNECT Base with mobile devices.
