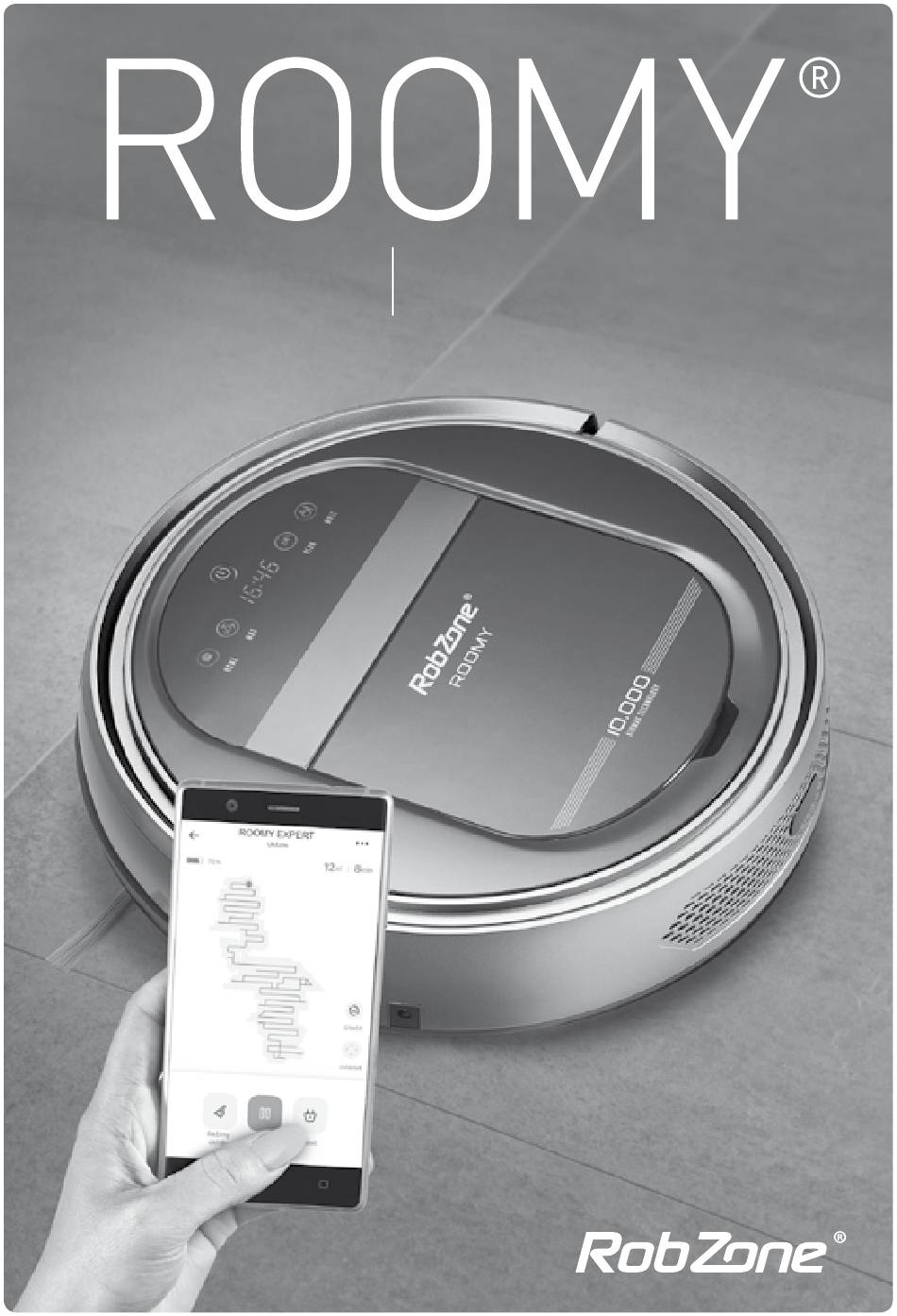

- Page 1 EXPERT ROBOTIC CLEANER WITH AIRMAX 10000 SUCTION...
-
Page 2: Table Of Contents
Google Play and AppStore under the name "RobZone" Thank you for purchasing the ROBZONE ROOMY EXPERT robotic vacuum clea- ner Please read the chapter "safe use rules" in detail before use, in order to use the robot vacuum cleaner safely. -
Page 3: Package Content
Brush for cleaning (installed in the cleaner) 2 side brushes (part of the waste container) Package contents may vary slightly from model to model. Instructions are always included in each package. The relevant listing is given for the specific model at www.robzone.com... -
Page 4: Safe Use Rules
Safe use rules Before using the robotic vacuum cleaner, please read the rules of safe use tho- roughly and follow all normal safety rules to reduce the risk of damage to the Robotic Vacuum Cleaner or in case of injury to yourself. The robotic vacuum cleaner is designed exclusively for indoor use and is not suitable for industrial use and loads. -
Page 5: How To Get Started - Quick Guide
See online instructions at www.robzone.com The mobile app is freely downloadable under the name "Robzone" on Google Play or AppStore. See page 16 for more information. 7. The robot is now ready and the cleaning can begin! The most used cleaning programs: •... -
Page 6: Cleaner Description
Situations and their solutions that may arise during the first cleaning: Is the space under your furniture too low? It may be that the space under your furniture is as high as the height of the vacuum cleaner. It is then possible that the robot, trying to clean up under the furniture, gets tight underneath it and cannot get back out. -
Page 7: Vacuum Cleaner Touch Screen
Suction head ACTIVE BRUSH with rotary brush Left wheel Left side brush Battery cover Bottom cover Front wheel Right wheel Charging Contacts for automatic charging connector Right side brush Vacuum cleaner touch screen HOME PLAN WALL Control buttons on display: Numeric symbols on the display show the time setting, charging status and error message codes or the type of cleaning mode, using numbers, letters and symbols. -
Page 8: Remote Control
"HOME" A) Automatic charging of the robot. After pressing the "HOME" button, the robot automatically searches for a charging base to recharge. B) Help button for setting the cleaning timer. C) Pairing a vacuum cleaner with the app "MAX" A) Cleaning program with turbo suction. B) Help button for setting the cleaning timer. - Page 9 Charging Attention! Before charging, make sure the main switch is in the On position. If it is in the Off position, the robot vacuum will not charge. The robot cleaner is powered by a battery located in the body of the vacu- Connection light um cleaner.
-
Page 10: Sleeping Mode
General charging instructions Keep the charging base plugged in at all times, if it is not plugged in the robot vacuum will not be able to find it and will not be able to charge automatically. Before charging the battery, the main switch on the side of the cleaner must be in the On position. Before using the robot vacuum cleaner for the first time, charge the battery to a full charge. -
Page 11: Cleaning Modes
Switch off To switch off the robot vacuum cleaner completely, switch the main switch on the side of the vacu- um cleaner body to the "OFF" position. List of voice notifications Stand by, I'm processing the instruction Please check the side brushes Please charge the battery Please clean the suction opening Charging started... - Page 12 Cleaning with turbo suction (Max cleaning) During this cleaning, the robot automatically activates the turbo suc- tion, increases the rotating brush speed and slows down the move- ment to make the vacuuming more efficient. • Mode activation: Press the "MAX" button on the vacuum cleaner touchscreen or on the remote control.
-
Page 13: Setting Current Time
Sensors The robotic vacuum cleaner is equipped with three types of sensors that provide orientation in space and also influence movement around furniture or walls. • • • IR sensors Ultrasound sensors Magnetic floor sensors Black furniture If there is dark furniture or walls in the room, the IR beam may not be properly reflected to the sensors in the bumper, in which case the vacuum cleaner will be reflected away from the obstacle by the cushioned bumper. -
Page 14: Setting The Timer
A) Setting the current cleaning time on the robot vacuum cleaner Briefly press the "PLAN" button and the current system time will be displayed on the touch screen of the robot vacuum cleaner and the first two digits on the left will start flashing. Press the "HOME" button to increase the value or the "MAX"... -
Page 15: Types Of Vacuuming
You can also set up scheduled cleaning using the mobile app. See the current downloadable version, here www.robzone.com To check the correct timer setting, press the "PLAN" button on the robot's touchscreen display to show the timer set on the vacuum cleaner and the remote control display to show the time delay set by the remote control. -
Page 16: Mobile Application
"Robzone" on Google Play and AppStore. The app is compatible with Android and iOS. Step 1: Download the Robzone app to your phone or tablet Step 2: Sign up for the Robzone app Step 3: Pair your robot with the app ...and online cleaning can begin To pair the robot with the app, use our instructions on https://www.robzone.com/en/pages/manuals... - Page 17 Filters cleaning Clean filters and an empty bin significantly increase the quality of cleaning. A) After about 15-30 days, clean the HEPA filter with a brush. The cleaning interval may vary depending on the contamination and frequency of use of the robot. Never use the robot with dirty filtration.
-
Page 18: Cleaning Side Brushes
Cleaning charging contacts Lightly wipe the charging contacts on both the robot vacuum cleaner and the charging base with a cloth or brush. Never wipe the robot with a wet or damp cloth. Cleaning side brushes • Check the side brushes regularly for damage, dirt or tangled hair. •... -
Page 19: Inserting And Replacing The Battery
C) Open the safety catch. Note: When returning the brush to its place, observe the correct procedure for D) Remove the brush and clean it of inserting the individual parts. dust and coiled dirt. Cleaning AIRMAX CARPET PRO head A) Remove the suction head from the robot vacuum cleaner. B) Open the safety catch. -
Page 20: Troubleshooting
Reset the robot vacuum cleaner by switching it off and on again using the main switch on the side of the vacuum cleaner. If the problem persists, contact your dealer or authorised service centre. For contacts, please visit www.robzone.com... -
Page 21: Technical Parameters
This printed manual may not contain all current recommendations and procedures. The most current version of the complete manual can always be found at www.robzone.com We reserve the right to make technical changes and innovations that do not affect the function and safety of the robots. - Page 22 Distributor: RobZone Europe s.r.o. Průmyslová 11472/11 102 00 Praha 10 Czech Republic Made in china Li - Ion...
