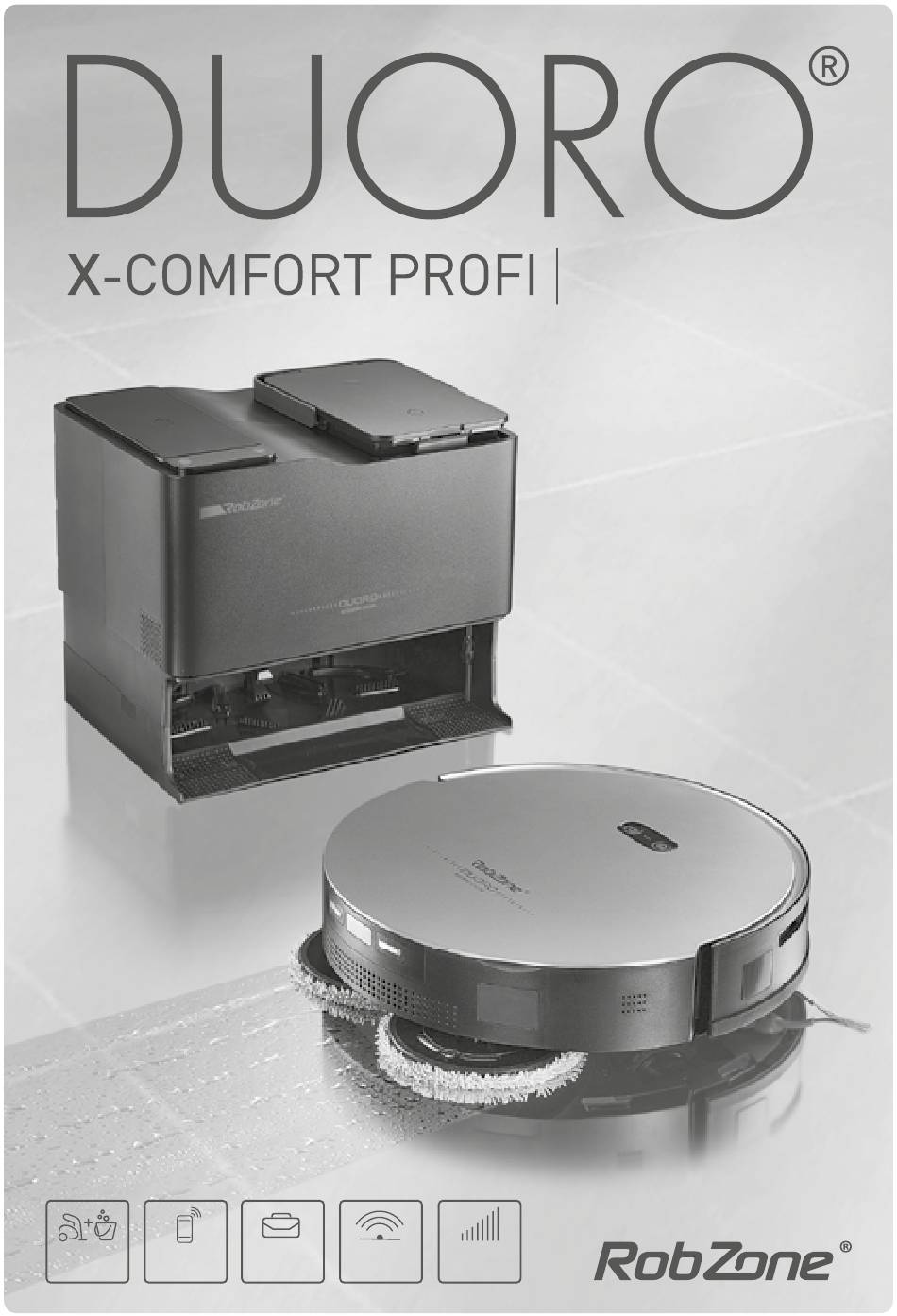

- Page 1 ROBOT CLEANER WITH ALL COMFORT STATION VACUUMS MOBILE PROFI LASER EL. CONTROLLED MOPS APPLICATION EQUIPMENT NAVIGATION MOPPING...
-
Page 2: Table Of Contents
Automatic cleaning of the station, Dirt bag change Technical parameters Troubleshooting Problem solving Thank you for purchasing the ROBZONE DUORO X-COMFORT robotic vacuum cleaner. Please read the chapter "rules for safe use" in detail before use, in order to use the robot vacuum cleaner safely. - Page 3 To get the most out of all the features, we also recommend that you read the mobile user manual Robzone Robot app. Scan the QR code to install the app, or search for RobZone Robot in the App Store or Google play.
-
Page 4: Safety Information
Safety information This product is intended exclusively for domestic cleaning of washable floor coverings and carpets. Never use the robot to clean outdoor areas, balconies, or patios. The robot is not intended for cleaning commercial areas or industrial buildings. The robot must not come into direct contact with water or other liquids. It is not intended for vacuuming liquids, but exclusively for wet mopping. -
Page 5: Laser Safety
- Never use damaged cables. If your cable has damaged insulation or shows other signs of damage, stop using it immediately and contact our customer service line. - If you will not be using the robot for an extended period of time, first fully charge it, then turn it off and store it in a cool, dry place. -
Page 6: Package Content
(manual is free to download accessories on www.robzone.com) Package content may vary slightly from model to model. Instructions are always included in each package. Please refer to www.robzone.com (www.robzone.sk, www.robzone.ro) for a current listing of package content for each model. -
Page 7: Cleaner Description
Cleaner description Magnetic upper cover of the robot Wi-Fi control Bumper 3D Laser Action Obstacle Detection Sensor Camera Sensor for precise cleaning along walls Button HOME: Button Start/Stop: Start pairing : Return to the station Start and stop cleaning - At the same time press the for charging - Press - Press HOME button... -
Page 8: Waste Container
Side brush Fall sensors Ultrasound sensor Front wheel Robot chassis The main brush Airmax The main wheels Main brush cover fuse Set of mops Valve for automatic refilling and discharge water Charging contacts Waste container Hole for automatic extraction of dirt Washable filtration Fuse HEPA... - Page 9 Description of the automatic cleaning station Waste container Tanks for dirty with dust bag and clean water Status lights To start or interrupt the current program, press the Start/Stop button. To end the current program, press and hold the Start/Stop button for 3 seconds. To leave the station and return to the station, press the HOME button.
- Page 10 Station signal transmitter Water filling valve Cleaning vessel filter (rakes) Opening for dirt extraction Notice Remove objects such as cables, hard and sharp objects from the floor to prevent them from being sucked in or entangled. Also remove fragile objects, such as vases, which could be knocked over and damaged by the robot. Very dark, black or colour contrasting flooring Dark, matt surfaces without glare can cause laser beam absorption, so the robot vacuum cleaner may assess the surface as unsafe and not drive on it.
-
Page 11: Installation Of The Cleaning Station
The first switching on 1. Plug the cleaning station into the electrical supply. Connect the cleaning unit to the mains and place it against a wall on a washable floor (not carpet). 2. Refill the clean water tank and check the location of the dust bag in the station. 3. -
Page 12: Filling The Water Tank
Filling the water tank The station requires enough clean water in the tank to function properly, without this the robot will refuse to perform any cleaning. If the tank is empty, the robot will alert you to to refill the clean water or to pour out dirty water. - Page 13 Mobile app pairing Download the app to enjoy all the features of the robot and the station: Procedure 1: Scan the QR code on the robot vacuum cleaner (under the top cover), download and install the free RobZone Robot app. Procedure 2: Open the App store or Google play on your mobile device, search for the RobZone Robot app and download and install the app.
- Page 14 Adding a robot to the application Open the RobZone Robot mobile app and press the "+" and "Add Device" icons on the home page. Then pair the robot by following the instructions in the app. The actual pairing process may vary slightly depending on application updates.
-
Page 15: Cleaning Modes
(this function can be activated in the application " Cleaning completion mode after interruption". The app can be instructed to immediately vacuum the dirt, drain dirty water, wash or dry the mops. All programs and functions are configurable in the Robzone Robot mobile app. Caring for mops Before each wiping programme, the robotic vacuum cleaner automatically prepares for wiping. -
Page 16: Other Functions
If the robot hits a carpeted area while mopping. The stroke is max 1.5 cm above the solid floor surface. ! Before cleaning, remove cables and various objects from the floor that could be dragged or otherwise damaged. ! The robot must not come into contact with water on the floor. The robot is exclusively designed for mopping not for vacuuming liquids. - Page 17 Restore factory settings If the robot does not work properly even after a reboot, you need to perform a factory reset. To restore the factory settings, press and hold the button for 10 seconds until you hear the message "starting to restore factory settings". After returning to factory settings, all your settings, such as the cleaning timer or Wi-Fi connection, will be deleted.
-
Page 18: Routine Maintenance
Routine maintenance To keep your robot performing at its best, we recommend regular maintenance at the intervals shown in the table below. Part cleaning interval replacement interval Front wheel clean as needed Odpadní nádoba clean as needed Main brush every two weeks every 6-12 months Side brush every month... -
Page 19: Side Brush
Remove the main brush, slide out its bearing and loosen the brush ends in the direction indicated. Remove any tangled hair and other debris at both ends of the brush. Insert the main brush back into the robot. Replace the main brush cover. Use a cloth dampened in warm water to clean the main brush. -
Page 20: Main Wheels
Main wheels Wipe both wheels with a dry soft cloth. Waste container Remove the top magnetic cover of the robot and remove the waste container. Cleaning of the waste container is not necessary on a re- Open the waste container and empty the dirt. gular basis as the dirt is sucked into the dust bag in the station. -
Page 21: Water Tank
Mops Remove both mops from the holders. Rinse the mops The mops are washed and dried after each and allow to dry. cleaning. However, we recommend that the mop is occasionally washed in a conventional washing machine at 300C as needed. and allow to dry freely. -
Page 22: Charging Contacts
Cleaning the cleaning container Charging contacts Clean the cleaning container with the cleaning brush provided and Wipe the charging station con- wipe the container with a dry cloth. tacts with a dry, soft cloth. Automatic cleaning of the station To keep the charging station in good condition, we recommend that you carry out the automatic clea- ning process regularly. -
Page 23: Battery Replacement
Therefore, contact an authorised service where they will sell you a battery and arrange for its replacement. Storage of the robot vacuum cleaner The Duoro X-Comfort Profi is designed for regular cleaning, where it remains permanently connected to the charging station, which maintains the correct battery status while ensuring that the robot is ready for daily cleaning. -
Page 24: Technical Parameters
Technical parameters Model Duoro X-Comfort Battery 14,4 V / 5200 mAh Li-ion Weight 4,2 kg / stanice 6,3 kg Wi-Fi type 2,4 GHz Nominal power 14,4V Time of charging 5 - 6h Nominal power of the station 100 V – 120 V 50-60 Hz Nominal input current (charging) 0,3 A Measured output... - Page 25 Troubleshooting Trouble Solution Robot can't be switched on 1. Low battery. Place the robot on the base and fully charge it before use. 2. High or low temperature. Use the robot only in a temperature range up to 0-40 °C Robot can't charge 1.
- Page 26 Trouble Solution Low dirt extraction effect or Check that there are no foreign objects or other obstructions in the intake non-standard sounds during openings. Check that the dirt bag is not full. Clean the holes or replace the dirt extraction bag if necessary.
-
Page 27: Environmental Information
The most current version of the complete manual can always be found at wwww.robzone.com Note: Robzone Europe, reserves the right to make any design and technical changes to the product for the purpose of continuous development and improvement of features. - Page 28 Distributor: RobZone Europe, s.r.o. Průmyslová 11472/11 102 00 Praha 10 - Hostivař Česká Republika Made in China Li - Ion...
