Vertiv™ Liebert® IntelliSlot™ RDU120
Communications Card
Quick Installation Guide
The Vertiv™ Liebert® IntelliSlot™
RDU120 Communications Card enables
SNMP, Modbus, and BACnet
management of Liebert equipment. To
integrate the card into a SNMP system,
compile the Liebert Global Products
Management Information Base (MIB)
on the Network Management Station
(NMS). The Liebert Global Products
MIB supports both Microsoft Windows
and Unix/Linux file formats. The MIB
files can be downloaded at link: https://
www.vertiv.com/en-us/support/
software-download/monitoring/
management-information-bases-mibs-
for-liebert-products/
1. Mounting the IntelliSlot card
NOTE: The bay may have a plastic
cover.
Insert the card into the IntelliSlot bay
on your Liebert equipment and secure
the card using the screws supplied with
the Liebert equipment.

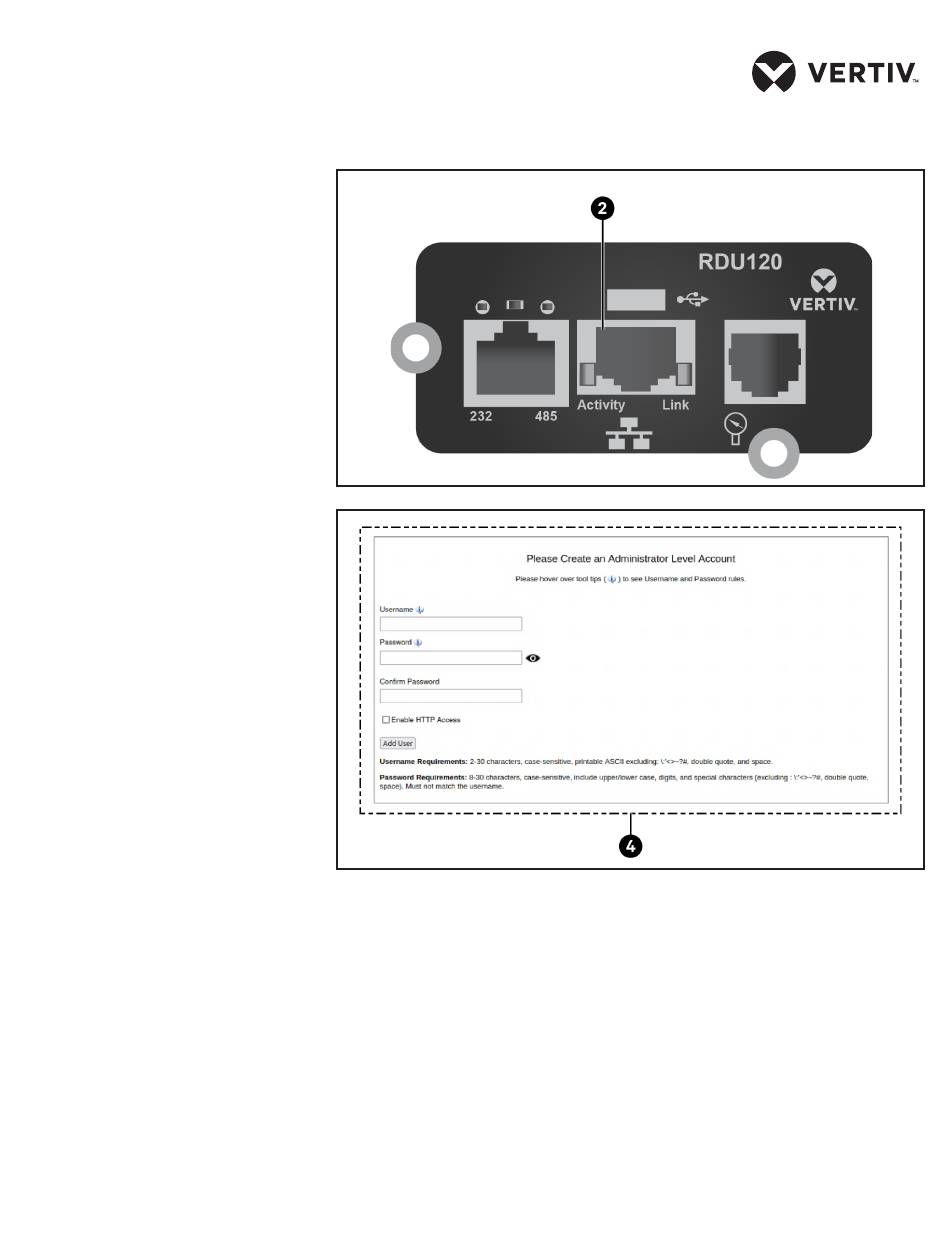

2. Connecting to Card
If using DHCP or BOOTP, connect a
LAN cable to the card's Ethernet port. If
using Static IP, proceed to step 4.
3. Using DHCP or BOOTP
Address
Allow time for the card to boot and
acquire an address.
Get the address from the network
administrator based on the card's MAC
address (from the label on the card's
faceplate). If the network administrator
is unavailable, the DHCP address can
be obtained by accessing the card with
a local connection. This is a direct
PC-to-card Ethernet connection. The
PC acquires a link-local address, and
the card is accessed at 169.254.24.7.
PROPRIETARY AND CONFIDENTIAL ©2024 VERTIV GROUP CORP.
Vertiv™ Liebert® IntelliSlot™ RDU120 Communications Card
Alternatively, the card can be accessed
at 192.168.123.123 by setting up the PC
for static IP address of 192.168.123.1.
The DHCP address can be found on
the Communications>Support>Active
Networking>IPv4 Address.
4. Create Administrator
Account
Create an administrator account in the
above dialogue. Please refer to the
Username and Password complexity
requirements at the bottom of the
dialogue.
5. Using a Static IP Address
Access the card at 169.254.24.7 or
192.168.123.123 as described in step 3.
Create Administrator account
described in step 4. Click the
Communications tab, from the
Communications tab menu, select
Configuration>Network>IPv4 or IPv6.
Select the IP protocol folder to
configure, click the Edit button in the
details panel, and enter the Username
and Password. Enter the static IP
details and then click Save.
AV-49571_REVA_09-24 1
