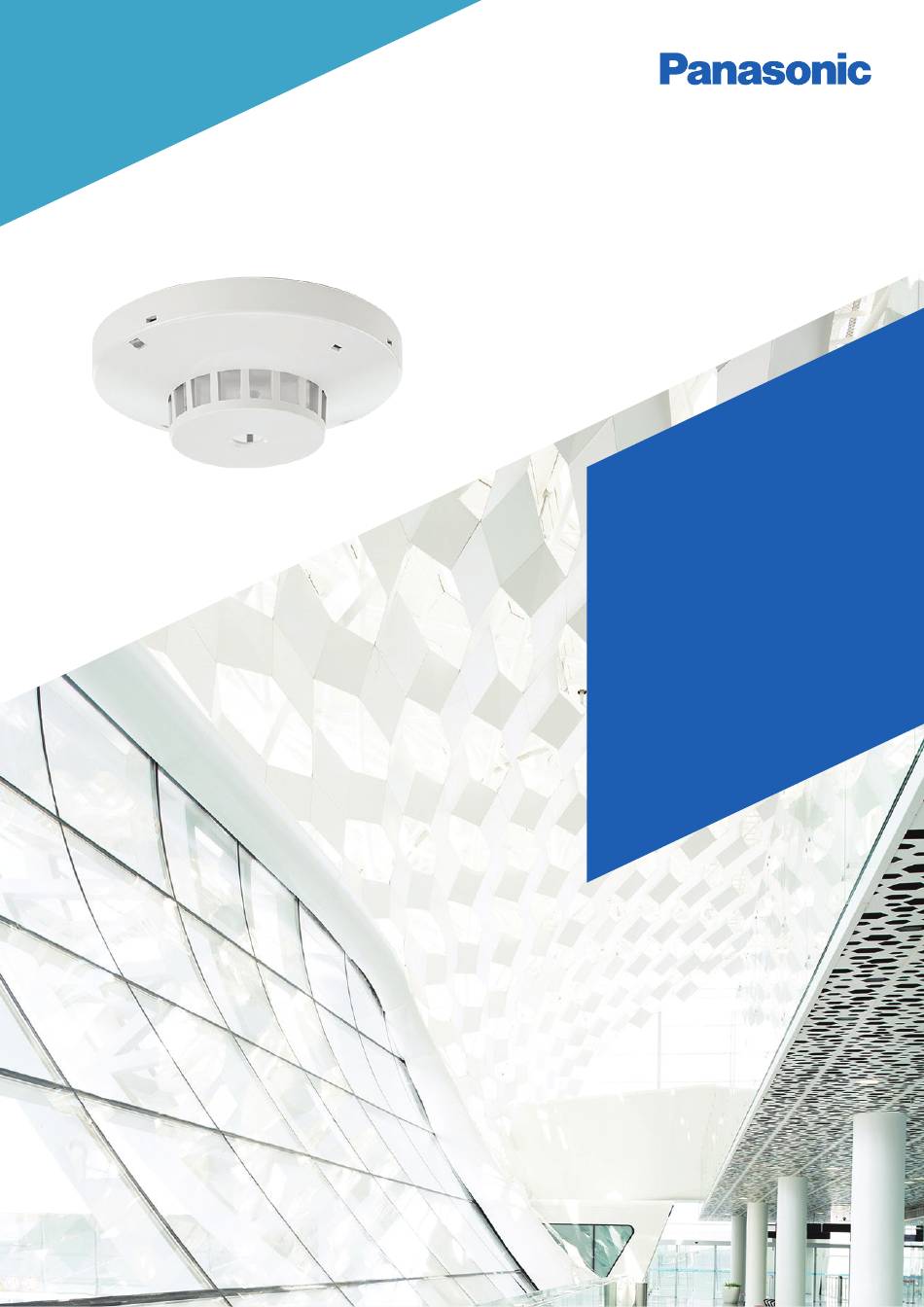

- Page 1 4408 ANALOG HEAT DETECTOR Fire alarm solutions technical description www.panasonic-fire-security.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ABBREVIATIONS GENERAL DESCRIPTION 3.1. DETECTOR 3.2. LED 3.2.1. ADDRESS SETTING CHECK SET THE COM LOOP ADDRESS SET THE MODE 5.1. COMPATIBILITY TABLE 5.2. ALGORITHMS 5.3. TEST MODE MOUNTING INSTALLATION AND WIRING TECHNICAL DATA APPROVALS... -
Page 3: Introduction
4408 ANALOG HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 1. INTRODUCTION This document describes the analog heat detector, type number 4408. The document contains information about the product and instructions on how to mount and connect it. 2. ABBREVIATIONS c.i.e... -
Page 4: General Description
3. GENERAL DESCRIPTION The analog heat detector 4408 measures the temperature through a thermistor. The temperature range is 0°C to 100°C in steps of 0.5°C. The analog heat detector is intended for indoor use and in dry premises. (Measure in mm) 3.1. -
Page 5: Set The Com Loop Address
4408 ANALOG HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 4. SET THE COM LOOP ADDRESS Each COM loop unit has to have a unique COM loop address (001-253). Set the address with the Address Setting Tool (4414). The COM loop address and mode settings have to be done before the unit is connected to the COM loop. -
Page 6: Mounting
6. MOUNTING The detector is plugged in the analog base. Place the detector in the base with the detector's "Mark" in the same position as the "Mark" on the base and turn the detector clock- wise. Locking screw Locking screw hole (prepared for drilling through detector body) The detector is prepared with one hexagon socket screw for mechanical locking with the analog base. -
Page 7: Installation And Wiring
4408 ANALOG HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 7. INSTALLATION AND WIRING The detector is plugged in an analog base 3312x / 4313 / 3379. The COM Loop and external LED are connected to the analog base. Screen wire termination is not provided. -
Page 8: Technical Data
A1: rate-of -rise >4°C/min: 46 °C A2 S: 60 °C B S: 74 °C 2330 mode: A2 S: 60 °C Size: Ø x H 102 x 34 mm Weight: Available colours: 4408 Grey (N8, Munsell colour code) 4408W White (10Y9/0.5, Munsell colour code) -
Page 9: Approvals
4408 ANALOG HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION 9. APPROVALS Applicable directive/ Approval Applicable standards Notified body EN54-5 No. 0786-CPR-21763 EN54-5 VdS 2344 No. G222044 EN61000-6-3 (Emission) Self declaration EN50130-4 (Immunity) VdS (Certification) RoHS EN50581 Self declaration... - Page 10 DOCUMENT NAME: TECHNICAL DESCRIPTION 4408 DOCUMENT NUMBER: MEW02742 EN DATE OF ISSUE: 2022-07-15 REV: - DATE OF REVISION: - Panasonic Fire & Security Europe AB Jungmansgatan 12 SE-211 11 Malmö Sweden Tel: +46 (0)40 697 70 00 www.panasonic-fire-security.com...
