1.3

Operating Panel

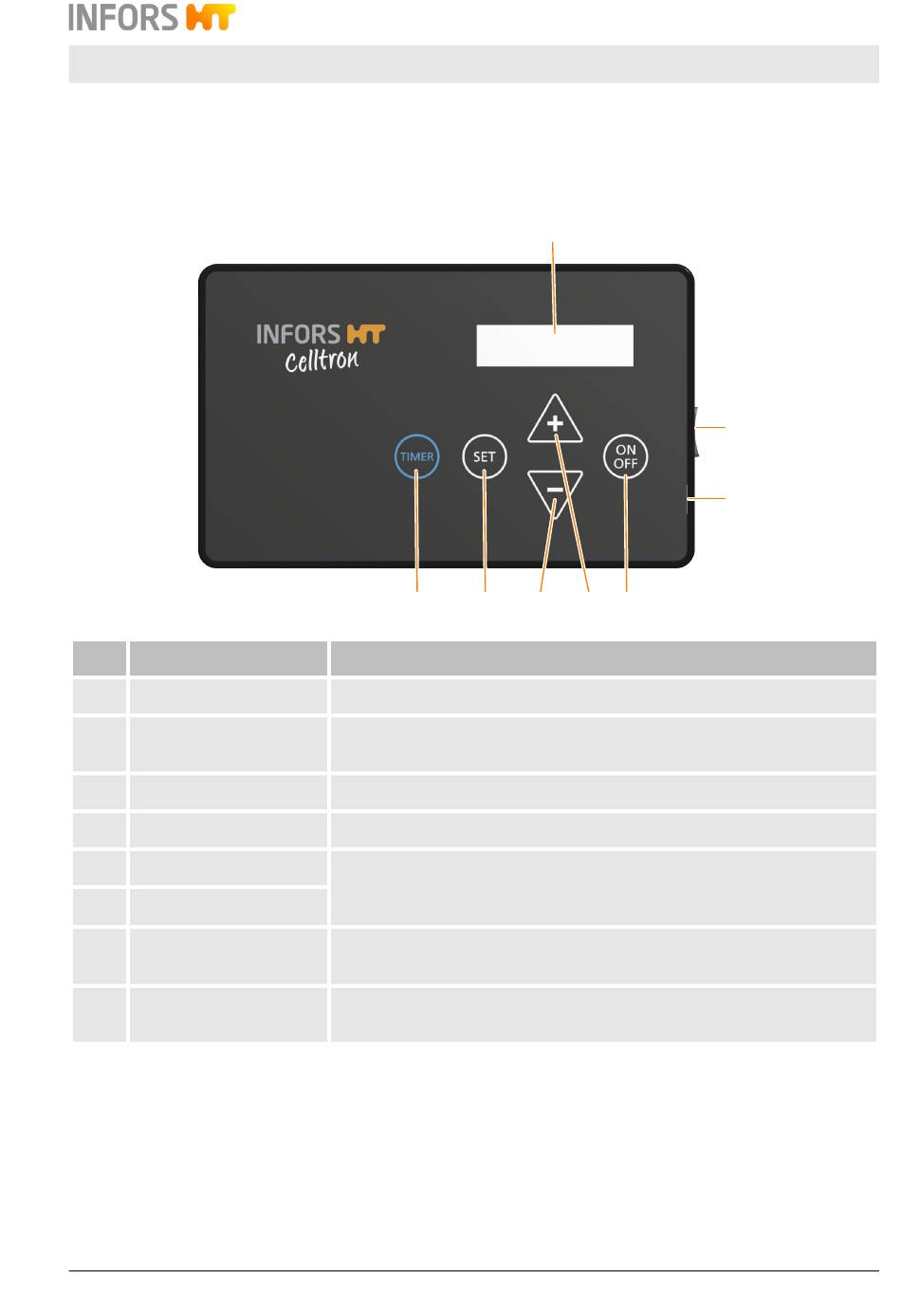

Front View
Kopiervorlage Bilderrahmen
Kopiervorlagen diverse Kopiervorlagen diverse Kopiervorlagen diverse
Pos. Designation
Kopiervorlage Bilderrahmen Kopiervorlage Bilderrahmen Kopiervorlage Bilderrahmen
1 Display
2 On/Off flip switch
3 Power supply connection
4 ON/OFF button
5 Plus button
6 Minus button
7 SET button
8 TIMER button
20.12.2023
Kopiervorlagen diverse
Kopiervorlagen diverse
Kopiervorlagen diverse Kopiervorlagen diverse
Kopiervorlage Bilderrahmen
Kopiervorlage Bilderrahmen
Function
Kopiervorlage Bilderrahmen Kopiervorlage Bilderrahmen
Shows target and actual values as well as error messages.
Switching on and off the device as well as interrupting the power supply in
an emergency.
Connection socket for supplied power unit.
Activating or deactivating the shaker drive or timer.
Increasing or decreasing the rotation speed or time of the timer. When the
button is held down, the display runs up or down the specified value range
in increasingly large intervals.
Activating programming mode. You have to push this button to enable
other entries. This prevents accidental input.
Activating the timer function (⮫ Chapter 5.4 'Programming Timer'
on page 33).
1
8 7 6
Celltron - Operating manual
Overview of the Device
2
3
5 4
Page 9 of 56
