dedalo ATENAS reverb ATN1 User Manual

Analog dry-thru with dry/wet mix control
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Analog Dry-Thru with Dry/Wet mix control
Feedback with tone control
Spring reverb tank
Independent 8-bit section with:
Sound freezing
Octave up/normal
Auto-Freeze and Tuned-Freeze
Variable sampling rate
Analog/8-bit mix control
Bypass with tails and True Bypass

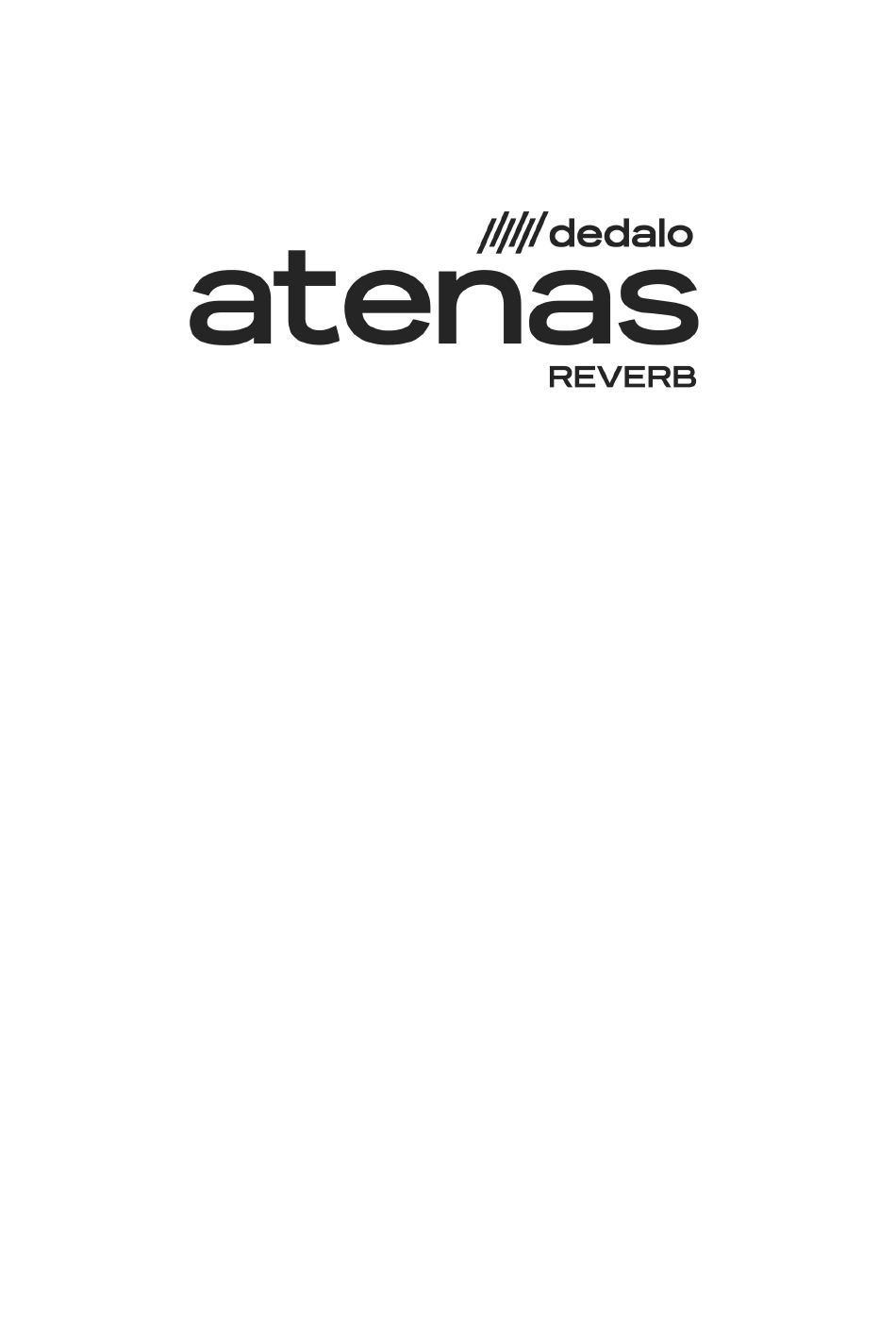

USER MANUAL
A TN1 Rev 16/ 02/ 2 02 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATENAS reverb ATN1 and is the answer not in the manual?

Questions and answers

Related Manuals for dedalo ATENAS reverb ATN1

Summary of Contents for dedalo ATENAS reverb ATN1

  • Page 1 Analog Dry-Thru with Dry/Wet mix control Feedback with tone control Spring reverb tank Independent 8-bit section with: Sound freezing Octave up/normal Auto-Freeze and Tuned-Freeze Variable sampling rate Analog/8-bit mix control Bypass with tails and True Bypass USER MANUAL A TN1 Rev 16/ 02/ 2 02 4...

  • Page 2: Operation

    Contratulations, you got the Atenas! Create new sounds with the Atenas, this reverb generating machine. Classic and unique sounds are possible thanks to its spring heart and its extra dimension of feedback. Generate ecstatic waves of reverb thanks to its 8-bit technology that reduces fidelity and invokes strange landscapes and octave sounds, as well as distant drones with the Freeze modes.
  • Page 3 infinitum). This section feeds the reverb, added in parallel with the analog signal in the proportion indicated by the Source Mix control. Controls 01 - MIX: Mix between the clean signal (dry) and the reverb (wet). At maximum it is completely wet, ideal for generating ambiance and using it in parallel as an fx send 02 - TONE: Equalization of all the sounds that enter the reverb tank.
  • Page 4 activation/deactivation of Freeze at the user command. Umbral de Auto-Freeze: While holding down this button, if you move the SAMPLING control, you can adjust the detection threshold for Auto-Freeze mode. Turning clockwise lowers the threshold, allowing greater detection sensitivity, and vice versa. All of the above functions are saved in the pedal's memory, so it will remain configured the same even if the power is turned off.

  • Page 5: Problems And Solutions

    Use and care of the pedal • Use only regulated 9v dc adapter, with negative center polarity. In no way should be connected to 220V or adapters of other kinds. • Avoid dropping, hitting or exposing the pedal to extremes of humidity or temperature.

  • Page 6: Terms Of Warranty

    • Failures due to accident or misuse are not covered in the warranty. • DEDALO is not responsible for any loss or damage the user may suffer as a result of using the pedal. • Power adapter not included in the warranty.

  • Page 7: Technical Specifications

    8 bits Section: Sampling frequency: 10.4Khz to 2.6Khz Buffer size: 37ms to 147ms Trimpots: RV1: Independent-Freeze Mode volume RV2: Max feedback (factory set – do not change) Dedalo Fx ( c ) 2 0 0 3 - 20 2 4...
