dedalo jet Manual

Compressor
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Ultra-low noise FET analog circuit
Variable threshold soft-limiter
Super fast attack
Clean signal blend for parallel compression
NUKE overcompression mode
Studio-grade operational amplifier
Variable mid boost
Red/Green LED Compression Indicator
True Bypass
USER MANUAL
JE T2 Re v 19/ 02/ 2 02 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the jet and is the answer not in the manual?

Questions and answers

Related Manuals for dedalo jet

  • Music Pedal dedalo fugu User Manual
    Music Pedal dedalo fugu User Manual
    Dual analog chorus and vibrato with bbd technology, digital control of waveforms and modes, double knobs for speed and depth, acceleration and effect change with optical switch, tone adjustment on side trimpot, oscillation indicator led, true bypass (7 pages)
  • Music Pedal dedalo rvo Manual
    Music Pedal dedalo rvo Manual
    Revolver/overdrive booster (9 pages)

Summary of Contents for dedalo jet

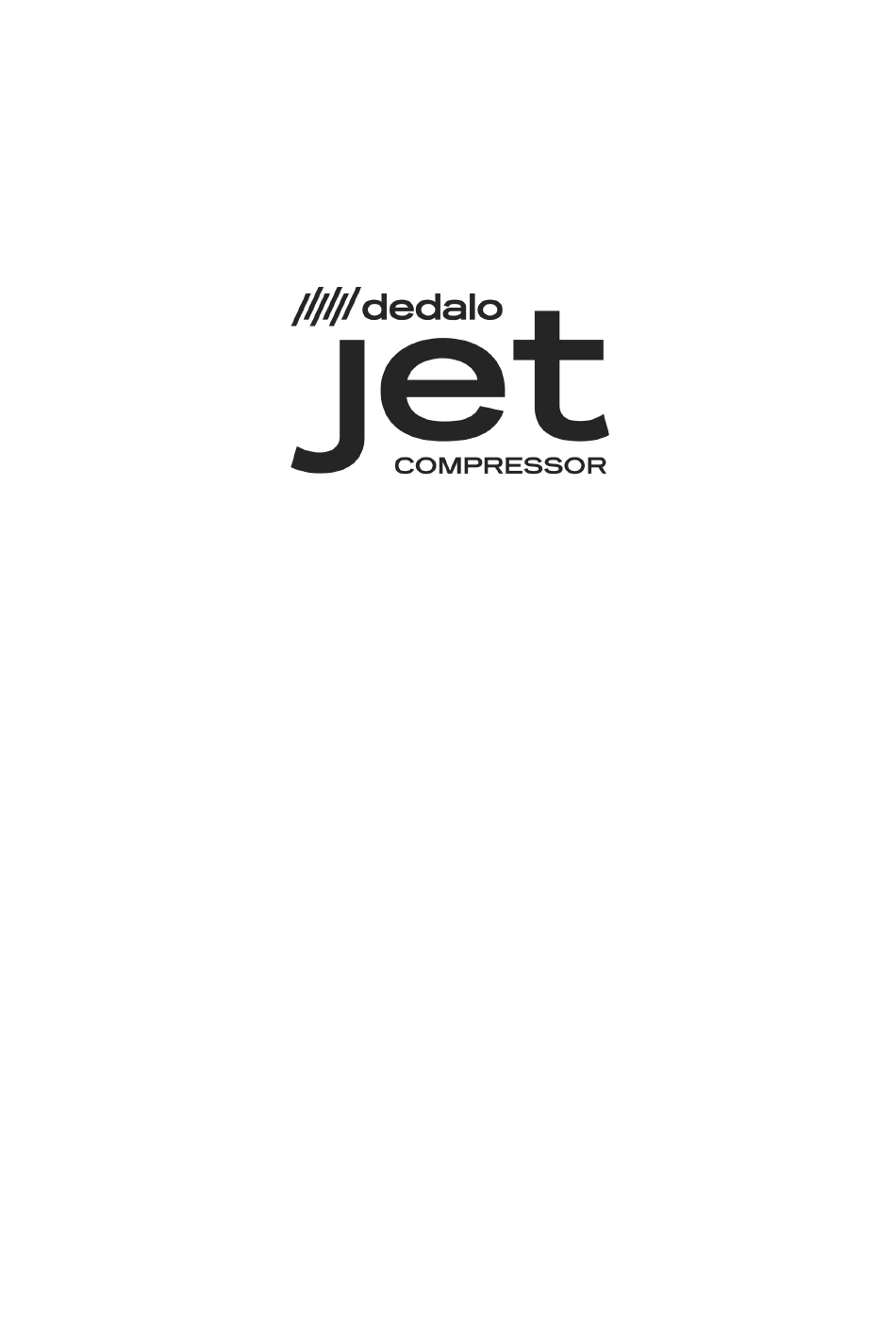

  • Page 1 Ultra-low noise FET analog circuit Variable threshold soft-limiter Super fast attack Clean signal blend for parallel compression NUKE overcompression mode Studio-grade operational amplifier Variable mid boost Red/Green LED Compression Indicator True Bypass USER MANUAL JE T2 Re v 19/ 02/ 2 02 4...
  • Page 2 Contratulations, you got the Jet! For all the compression lovers, we created the JET, a compressor with FET technology and studio-grade opamp, which provides the ideal functions to command the groove and extend the sustain. With its super-fast attack circuit, full control of dynamics is possible.
  • Page 3 Controls 01 - BLEND: Independent level of the uncompressed signal, which is summed in parallel. Depending on the compressed/clean ratio, it allows you to recover dynamics in the sound, contrasting the action of the compressor for a more natural sound. 02 - GAIN: Recovery gain on the compressed signal, to match or raise the level with respect to bypass.
  • Page 4 tone remains intact, open. Towards the minimum, mid frequencies are emphasized with a gentle curve, enhancing the sound of the instrument in the mix. 05 - ATTACK: attack time of the signal detector. Controls the speed of the compressor. At the fastest setting, the time constant is less than 1ms, so the action is almost instantaneous, while slower attacks allows the transients at the beginning of each note to pass thru.

  • Page 5: Problems And Solutions

    Use and care of the pedal • To place a battery, remove the lid by removing screws. • Use only regulated 9v dc adapter, with negative center polarity. In no way should be connected to 220V or adapters of other kinds. •...

  • Page 6: Terms Of Warranty

    • Failures due to accident or misuse are not covered in the warranty. • DEDALO is not responsible for any loss or damage the user may suffer as a result of using the pedal. • Batteries or power adapter are not included in the warranty.
  • Page 7 APPENDIX Technical specifications JET-2 / 2023 Model True Bypass Input impedance: 700Kohm Power supply: DC 9v center negative or 9v alcaline battery Power consumption: 22mA @ 9v DC Dimensions: 12cm x 9.4cm x 5.4cm Weight: 470gr Equalizer: +6db, frecuencia central 1Khz, wide Q (0.25) Attack time: <1ms a 12ms...

This manual is also suitable for:

Jet-2
