dedalo fugu User Manual

Dual analog chorus and vibrato with bbd technology, digital control of waveforms and modes, double knobs for speed and depth, acceleration and effect change with optical switch, tone adjustment on side trimpot, oscillation indicator led, true bypass
Hide thumbs Also See for fugu:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Analog Chorus and Vibrato with BBD technology
Digital control of waveforms and modes
Double knobs for speed and depth
Acceleration and effect change with optical switch
Tone adjustment on side trimpot
Oscillation indicator LED
True Bypass
USER MANUAL
FU G3 Rev 19/ 02 / 2 02 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the fugu and is the answer not in the manual?

Questions and answers

Related Manuals for dedalo fugu

Summary of Contents for dedalo fugu

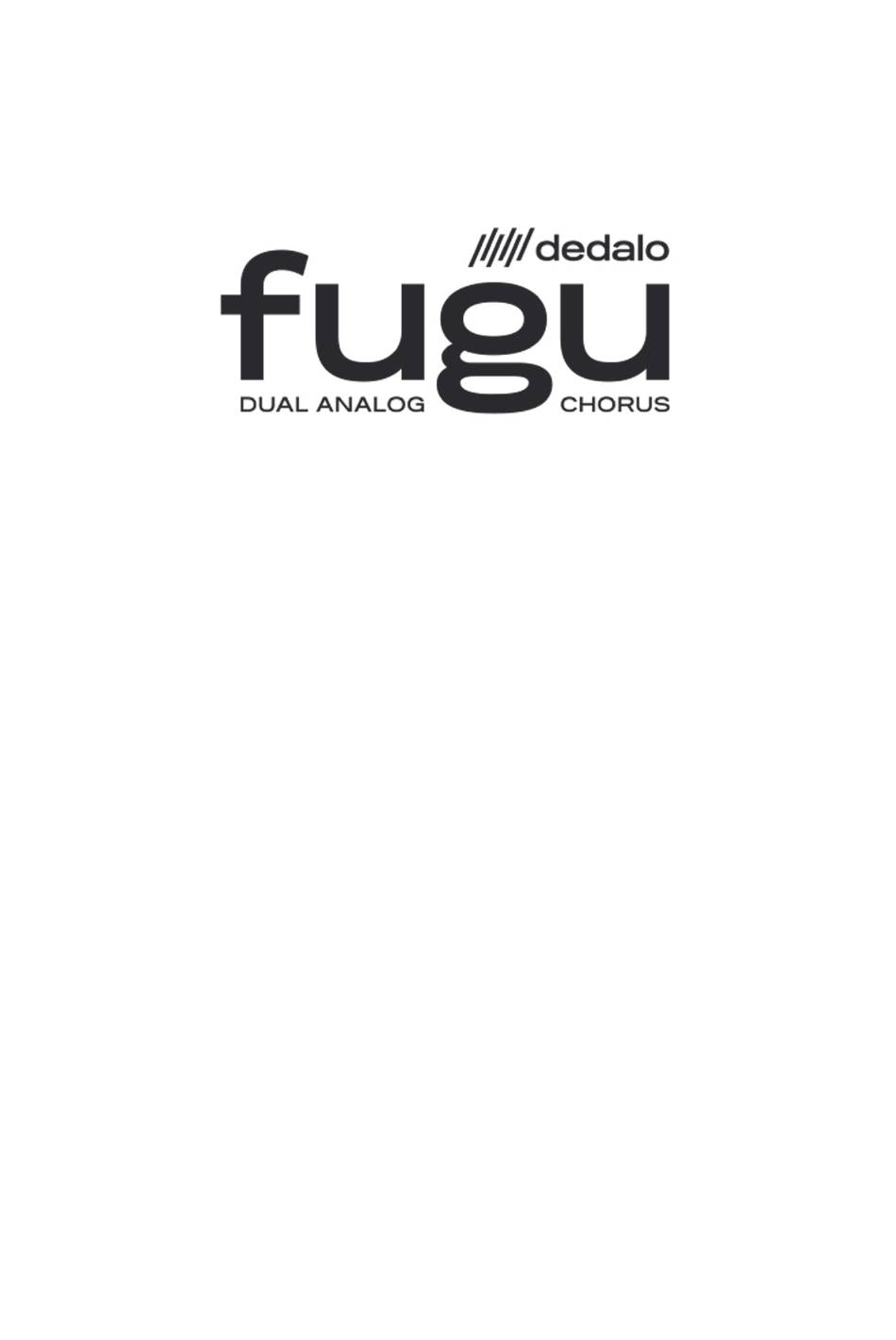

  • Page 1 Analog Chorus and Vibrato with BBD technology Digital control of waveforms and modes Double knobs for speed and depth Acceleration and effect change with optical switch Tone adjustment on side trimpot Oscillation indicator LED True Bypass USER MANUAL FU G3 Rev 19/ 02 / 2 02 4...
  • Page 2 Congratulations, you got the Fugu! Its analog BBD circuit provides the mythical essence of the chorus, and is taken to the limits thanks to the digital control of the waveforms. Expand your sound into an ocean of vibratos, pitch variations, and dual oscillations, and return to the comfort of a smooth wave of modulation with a simple tap.
  • Page 3 Controls 01 - RATE: Rate of oscillation of the left LFO 02 - DEPTH: Modulation depth of the left LFO. The waveform of this oscillator is fixed to hypertriangular. 03 - DUAL WAVE: Selects the waveform of the right oscillator: - Hyper, to obtain the classic sound of the original choruses.
  • Page 4 10 - DUAL: function optical switch. A TAP on it toggles between left and right oscillator, activating the corresponding effect. - Speed-Up: sIf you keep the switch pressed, the currently active oscillator will gradually increase its speed to maximum. Releasing it will smoothly return the speed to normal. - Modes The operation mode of the right oscillator is selected with the DUAL WAVE control, with the following options:...

  • Page 5: Problems And Solutions

    Use and care of the pedal • Use only regulated 9v dc adapter, with negative center polarity. In no way should be connected to 220V or adapters of other kinds. • Avoid dropping, hitting or exposing the pedal to extremes of humidity or temperature.

  • Page 6: Terms Of Warranty

    • Failures due to accident or misuse are not covered in the warranty. • DEDALO is not responsible for any loss or damage the user may suffer as a result of using the pedal. • Power adapter not included in the warranty.

  • Page 7: Technical Specifications

    RV1: Bias (factory set – do not change) RV2: Output level of the effect RV3: Clock calibration (factory set – do not change) RV5: Input level to BBD RV6: Output level from BBD Dedalo Fx ( c ) 2 0 0 3 - 20 2 4...

This manual is also suitable for:

Fug3
