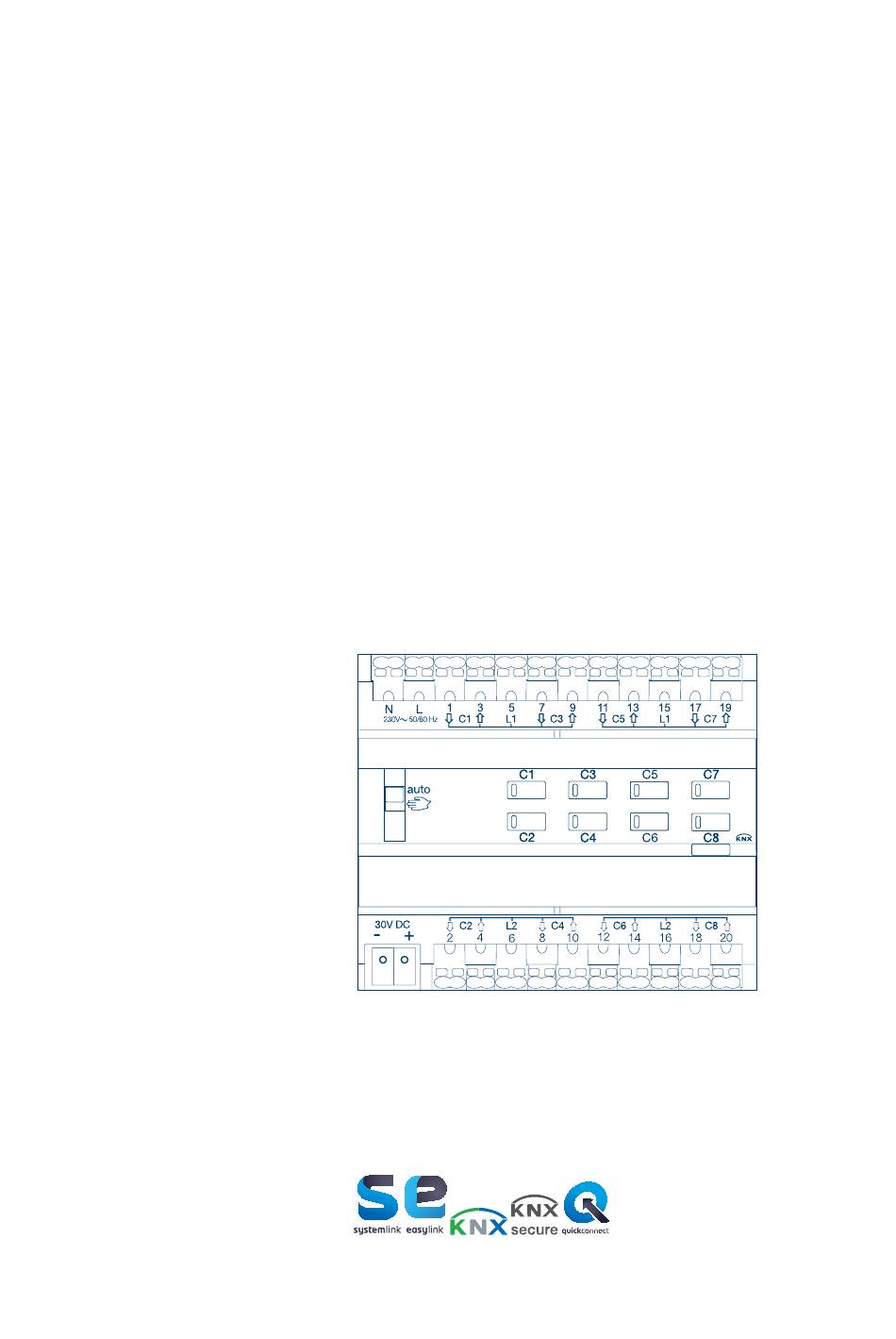

- Page 1 Operating and assembly instructions KNX building management system KNX roller shut- ter / blind actua- KNX Secure 8-gang roller shutter / blind actua- TYAS628C...
-
Page 3: Table Of Contents
Table of contents Table of contents Introduction..............4 Safety instructions............6 Scope of delivery............7 Design and layout of the device........ 8 Function................ 9 easylink commissioning.......................9 Operation..............11 Information for qualified electricians.......13 Installation and electrical connection................13 Commissioning........................16 7.2.1 Commissioning the device....................18 Dismantling..........................18 Appendix.............. -
Page 4: Introduction
KNX-certified Supports KNX Data Secure Installation terminal with ac- Compatibility with Compatibility with Hager tuation opening KNX S-mode (ETS) Easytool Suitable for use in Aus- Suitable for use in China Suitable for use in Morocco tralia and New Zealand Manufacturer’s information... - Page 5 Introduction Symbol Description Warning against damage from electricity. Warning against damage from mechanical stress. Warning against damagefrom overheating. Electronic devices may only be assembled, installed and configured by an electrically trained and certified specialist in accordance with the relevant installation standards of the country.
-
Page 6: Safety Instructions
Safety instructions Safety instructions Electrical devices must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, guidelines, regulations, directives, safety and accident prevention directives of the country. Hazard due to electric shock. Disconnect before working on the device or load. Take into ac- count all circuit breakers that supply dangerous voltages to the device or load. -
Page 7: Scope Of Delivery
Scope of delivery Scope of delivery https://hgr.io/r/TYAS628C Fig. 1: Scope of delivery TYAS628C... -
Page 8: Design And Layout Of The Device
Design and layout of the device Design and layout of the device Fig. 2: Design and layout of the device Slide switch auto / KNX bus connection terminal Connections of loads Labelling field with cover Illuminated programming button Operation button for manual mode for each output with status LED Connection, 230 V ~ supply voltage... -
Page 9: Function
Function Function System information Dieses Gerät ist ein Produkt des KNX-Systems und entspricht den KNX-Richtlinien. Detaillierte Fachkenntnisse durch KNX-Schulungen werden zum Verständnis vorausgesetzt. Das Gerät ist KNX Data Secure fähig. KNX Data Secure kann im ETS-Projekt konfiguriert werden und bietet Schutz vor Manipulation in der Gebäudeautomation. Detaillierte Kenntnisse zu diesem The- ma werden vorausgesetzt. - Page 10 Function – Position can be started directly – Slat position directly controllable – Feedback of operating state, shutter position and lamella adjustment – Forced position by higher-level controller – Safety function: 3 independent wind alarms, rain alarm, frost alarm – Sunshade function with automatic heating and cooling –...
-
Page 11: Operation
Operation Operation Switching manual mode on/off With the 8gang variants, control of the outputs is possible even without bus voltage when mains voltage is connected e.g. for operation on construction sites. The 230 V ~ power supply or bus power supply is present. Move switch to position. - Page 12 Operation Note If the roller shutter/blind is in the final position, the button opposite must be pressed in or- der to move the shutter/blind. auto Grün, green, vert, verde, Rot, red, rouge, rosso, rood, groen, verde, 绿色的, أﺧﴬ rojo, vermelho, 红色的, أﺣﻤﺮ auto Fig.
-
Page 13: Information For Qualified Electricians
Information for qualified electricians Installation and electrical connection Information for qualified electricians Installation and electrical connection Danger Electric shock when live parts are touched! An electric shock can lead to death! Isolate all connection cables before working on the device and cover any live parts in the area! Caution Impermissible heating if load of the device is too high! - Page 14 Information for qualified electricians Installation and electrical connection Connecting the device The device is installed on the DIN rail in accordance with ISO 60715. Connect the load to the outputs of the device. Connect the connection cables for the power supply. CU = 0,75 - 2,5 mm²...
- Page 15 Information for qualified electricians Installation and electrical connection auto 30V DC Fig. 7: Device connection Connect the conncection cables for the motors. Connecting the bus cable The connection cables for the load and power supply are connected. Connect the bus cable via the bus connection terminal. Fig.
-
Page 16: Commissioning
Information for qualified electricians Commissioning Commissioning The device can be programmed in three ways: – KNX systemlink mode (standard ETS programming) siehe Inbetriebnahme im KNX Systemlink Modus (ETS) , Seite 16 – KNX Secure mode siehe Inbetriebnahme im KNX Secure Modus , Seite 16 –... - Page 17 Information for qualified electricians Commissioning Fig. 11: QR-Code manuell eingeben Fig. 9: Gerätezerti- Fig. 10: QR-Code scannen fikat vom Gerät entfer- nen (Abbildung ähnlich) Alle Passwörter dokumentieren und sicher aufbewahren. Das Gerätezertifikat (QR-Code) vom Gerät entfernen und sicher mit den Passwörtern aufbewahren. Das Gerätezertifikat mit physikalischer Adresse und Produktreferenz in einer Liste notieren.
-
Page 18: Commissioning The Device
Information for qualified electricians Commissioning 7.2.1 Commissioning the device The device has been installed and connected correctly. Switch on the mains voltage at the outputs. Switch on the bus voltage. Depending on the parameterisation, the status LEDs of the operation buttons for manual mode light up. - Page 19 Information for qualified electricians Dismantling Disconnecting the load cables All the cables delivering voltage to the device are switched off. Disconnect the connection cables on the device. 2,5 mm Fig. 14: Disconnecting the connection cables Removing the bus connection terminal The bus voltage is switched off.
- Page 20 Information for qualified electricians Dismantling Fig. 16: Removing the device from the DIN rail Dispose of the device in line with the corresponding guidelines of the country (siehe Dis- posal ) or, if you have a warranty claim, contact the point of sale (siehe Warranty...
-
Page 21: Appendix
Appendix Technical data Appendix Technical data KNX Medium TP1-256 Commissioning mode systemlink, easylink Supply voltage via grid 230 V ~, +10 %/-15 % 240 V~, ±6 % KNX supply voltage 21 - 32 V SELV BUS connection mode Connecting terminal KNX current consumption 2 mA Consumption without load... -
Page 22: Accessories
Appendix Accessories Accessories Optional accessories KNX bus connection terminals, 2-pole, red/black TG008 KNX system cable, Y(ST)Y,2x2x0.8 TG01x Regulatory Compliance Australia Disposal Correct disposal of this product (electrical waste). (Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its documentation indicates that it should not be disposed of with other household waste at the end of its working life. - Page 23 Hager Controls BP10140 67703 Saverne Cedex France +33 (0) 3 88 02 87 00 info@hager.com hager.com 2024-11...
