- Page 1 Operating and assembly instructions KNX Building system technology Line Coupler Line Coupler, KNX Secure TYFS130...
-
Page 2: Table Of Contents
Line/area coupler, KNX Secure Table of contents Safety instructions ...................... 3 System information ...................... 3 Device components ...................... 3 Intended use ........................ 5 Product characteristics ..................... 5 Area of use ........................ 5 Backbone coupler and line coupler................ 5 Segment coupler and amplifier ................ 6 Operation .......................... -
Page 3: Safety Instructions

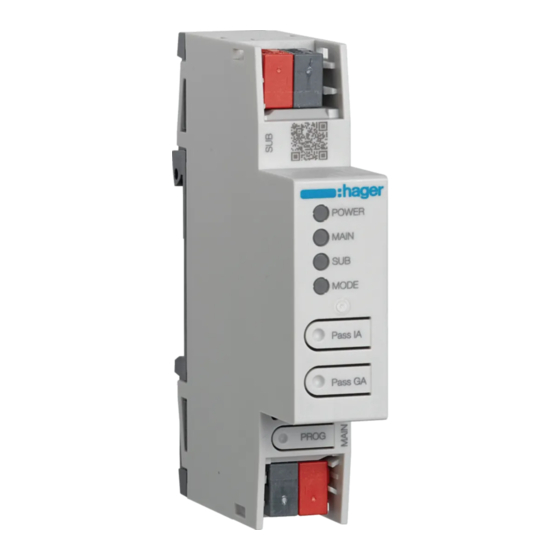

The device can be updated. Firmware can be easily updated with the Hager ETS Service App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipulation in building automation and can be configured in the ETS project. - Page 4 Line/area coupler, KNX Secure Status LED POWER Status LED MAIN Status LED SUB Status LED MODE Button Pass IA Button Pass GA Programming LED, red Programming button PROG. (10) KNX device connection terminal, higher-order line MAIN Status LED function POWER Power failure on higher-order line Lights up green Ready for operation, higher-order and subordinate...
-
Page 5: Intended Use
Line/area coupler, KNX Secure Self-test of the status LED During restart, the status LEDs light up green for 0.5 seconds and then red in se- quence from the top to the bottom Intended use – Establishes a data link between two KNX lines/segments/backbones and en- sures electrical separation between these lines/segments/backbones –... -
Page 6: Segment Coupler And Amplifier
Line/area coupler, KNX Secure Line coupler (LK): The physical address is the address of a line coupler X.Y.0 and must match the logical topology of the KNX system. Connection of a line with a main line (HL). Alternatively with or without filter function. The coupler is logically assigned to the subordinate line. -
Page 7: Operation
Line/area coupler, KNX Secure SK = Segment coupler LV = Amplifier TLN = Bus device SV = KNX power supply DR = Choke Each line segment requires a separate power supply (SV) including choke (DR). Operation Information for electrically skilled persons DANGER! Electric shock when live parts are touched. -
Page 8: Commissioning
Line/area coupler, KNX Secure Commissioning Programming the physical address and application programme with ETS ￭ Switch on the bus voltage. ￭ Press the programming button (9) PROG.. The programming LED (8) lights up. ￭ Programming the physical address. The programming LED goes out. ￭... -
Page 9: Technical Data
5 s. Restoring the device to factory settings The device can be reset to factory settings with the Hager/Berker Firmware Update App. This function uses the firmware contained in the device that was active at the time of delivery (delivered state). Restoring the factory settings causes the device to lose its physical address and configuration. - Page 10 Hager Controls S.A.S. B.P. 10140 Saverne Cedex France T +33 (0) 3 88 02 87 00 info@hager.com hager.com 2024-03...
