Sonoff L2 / L2 Lite Manual

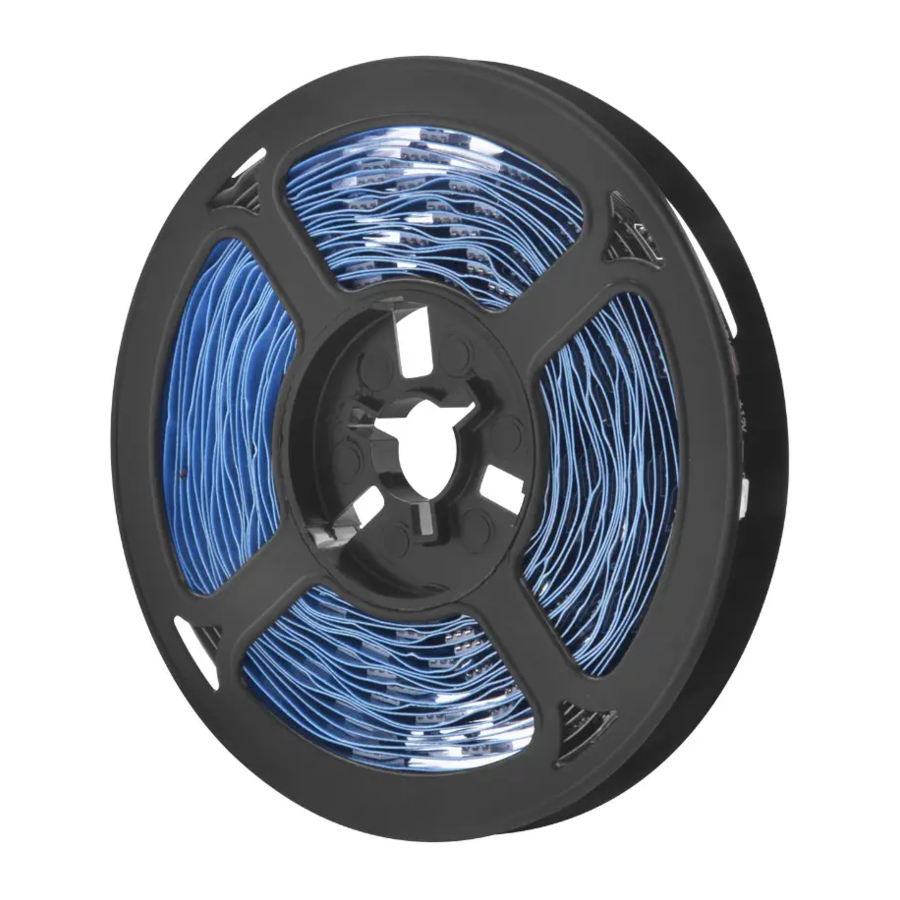

Features of the Smart LED Light Strip

SMD5050 LED Beads; FPCB Circuit Board; Every 3 LED lights in one segment.
Main Colors of the Light: Red/Blue/Green.

Operation instruction

Clean the surface
Tear the backing tape
Adhere it to the surface
Download the eWeLink App

Android™ & iOS

Power on

Pull out the insulation sheet, then long press "on" button for 5s until the light strip "flashes", which means it enters the Bluetooth Pairing mode.
The device will exit the Bluetooth Pairing mode if not paired within 1min. If you want to enter this mode again, long press the "on" button on the remote controller for 5s until the light strip "flashes" and release.
Add the device
Tap "+" and select "Bluetooth Pairing", then operate following the prompt on the App.

Specifications

Model: L1-2M, L1-5M, L1 Lite-5M-EU, L1 Lite-5M-US
Light Strips

Input Voltage	DC 12V	LED QTY	30LEDs/m
Luminous Flux	≥300lumens/m	Life Expectancy	> 25000 hours
Beam Angle	L1: 140° L1 Lite: 120°	Operating Temperature	-15°C ~ 50°C
Working Humidity	≤95%	Protect Range	L1: IP65 L1 Lite: IP20
Material	FPCB	Protect Range	L1: IP65 L1 Lite: IP20
Light Decay	Less than 3% after 1000 hours constant work

Power Adapter

Input	100-240V AC 50/60Hz 0.6A Max	Output	DC 12V 2000mA
Protection	Anti-overvoltage, Anti-overload, Anti-overtemperature

Wi-Fi Controller

Input	DC 5-12V	Power	24W(36W Max)
Remote Control	24 Keys IR Remote Controller	Wi-Fi	IEEE 802.11 b 2.4GHz
Remote controller battery	3V(CR2025)	Bluetooth	5.0 BLE
App operating systems	Android & iOS

Wi-Fi control setting

Select the "Wi-Fi Settings" on the "Device Settings" interface in the eWeLink App to add or change the network.
Wi-Fi control setting
warning When Wi-Fi is not available, the device will automatically switch into Bluetooth control (Ensure Bluetooth is enable on your mobile phone).

Re-establish Pairing

Long press "on" button for 5s until the light strip "flashes", which means it enters the Bluetooth Pairing mode and you can pair again.

Factory Reset

Deleting the device on the eWeLink app indicates you restore it to factory setting.

Safety Warning

Before using this product, please make sure that your voltage is appropriate for this product's working voltage. Using this product with a voltage other than the one specified may damage the product and cause safety hazards.
LED Light Sources are unchangeable, please don't dismantle them.
While the Light Strip is working, it will generate heat so please keep it in a cross ventilation environment for heat dissipation.
