Bogen LMR1S Operation Manual

Bogen LMR1S Operation Manual

Mic/line input module with remote control
Hide thumbs Also See for LMR1S:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

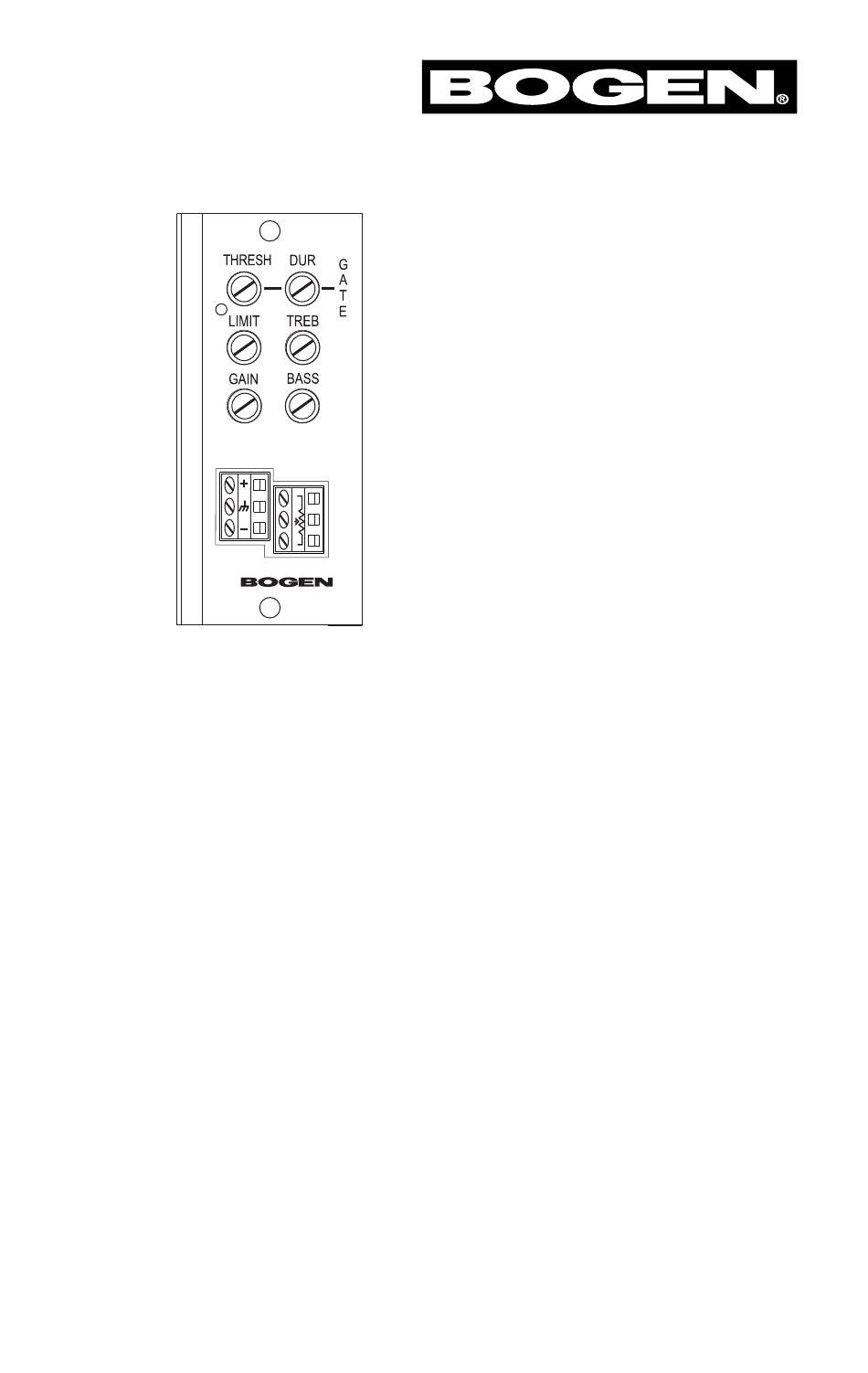

LMR1S
LMR1S
MIC/LINE
MIC/LINE
IN IN
REMOTE
REMOTE
CONTROL
CONTROL
3
2
1
Features
•
Input level control by remote pot or direct voltage input
•
Line mode for high impedance input
•
MIC Mode for low impedance input
•
Electronically balanced input
•
Gain/Trim control with Gain range switch
•
Bass and treble
•
24V Phantom power
•
Audio Gating
•
Gating with threshold and duration adjustments
•
Built-in limiter with LED activity indicator
•
Fade back from mute
•
4 levels of available priority
•
Can be muted from higher priority modules
•
Can mute lower priority modules
•
Screw terminal input
LMR1S
Mic/Line Input Module
with Remote Control
© 2007 Bogen Communications, Inc.
54-2158-01A
Specifications subject to change without notice.
0704

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMR1S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bogen LMR1S

Summary of Contents for Bogen LMR1S

  • Page 1 Fade back from mute • 4 levels of available priority • Can be muted from higher priority modules • Can mute lower priority modules • Screw terminal input © 2007 Bogen Communications, Inc. 54-2158-01A 0704 Specifications subject to change without notice.
  • Page 2 1. Gate - Threshold (Thresh) Controls the amount of input signal level neces- LMR1S LMR1S sary to turn the module’s signal output on and mute lower priority modules. Clockwise rotation increases the necessary input signal level required to produce audio output and mute lower priori- ty modules.

  • Page 3: Jumper Selections

    Jumper Selections PRIORITY LEVELS G ATING HIGHEST LOWEST ENABLED Priority Level This module can respond to 4 dif- DISABLED ferent levels of priority. Priority 1 is the highest priority. It mutes BUS ASSIGNMENT PRIORITIES modules with lower priorities and BOTH is never muted.

  • Page 4: Module Installation

    Module Installation Turn off all power to the unit. Make all necessary jumper selections. Position module in front of any desired module bay opening, making sure that the module is right-side up. Slide module onto card guide rails. Make sure that both the top and bottom guides are engaged.
  • Page 5 Input level can be controlled by an external DC voltage source, which must be able to supply up to 1mA of current to the LMR1S. The attenuation level is linear with voltage. 4.5V or greater = 0 dB of attenuation (full volume) and 0V > 80 dB of attenuation. Distance from the source should be kept to 200 feet or less.

  • Page 6: Remote Control

    TO WIPER TERMINAL SHIELD Note: If no connections are made to the remote control, the LMR1S module defaults to 0 dB of attenuation. Two-Conductor Shielded Remote Connections This configuration is recommended when wire runs up to 2,000 feet are necessary. Use two- conductor shielded wire for this connection.

  • Page 7: Block Diagram

    Block Diagram...
  • Page 8 50 Spring Street, Ramsey, NJ 07446, U.S.A. 201-934-8500; Fax: 201-934-9832 www.bogen.com...
