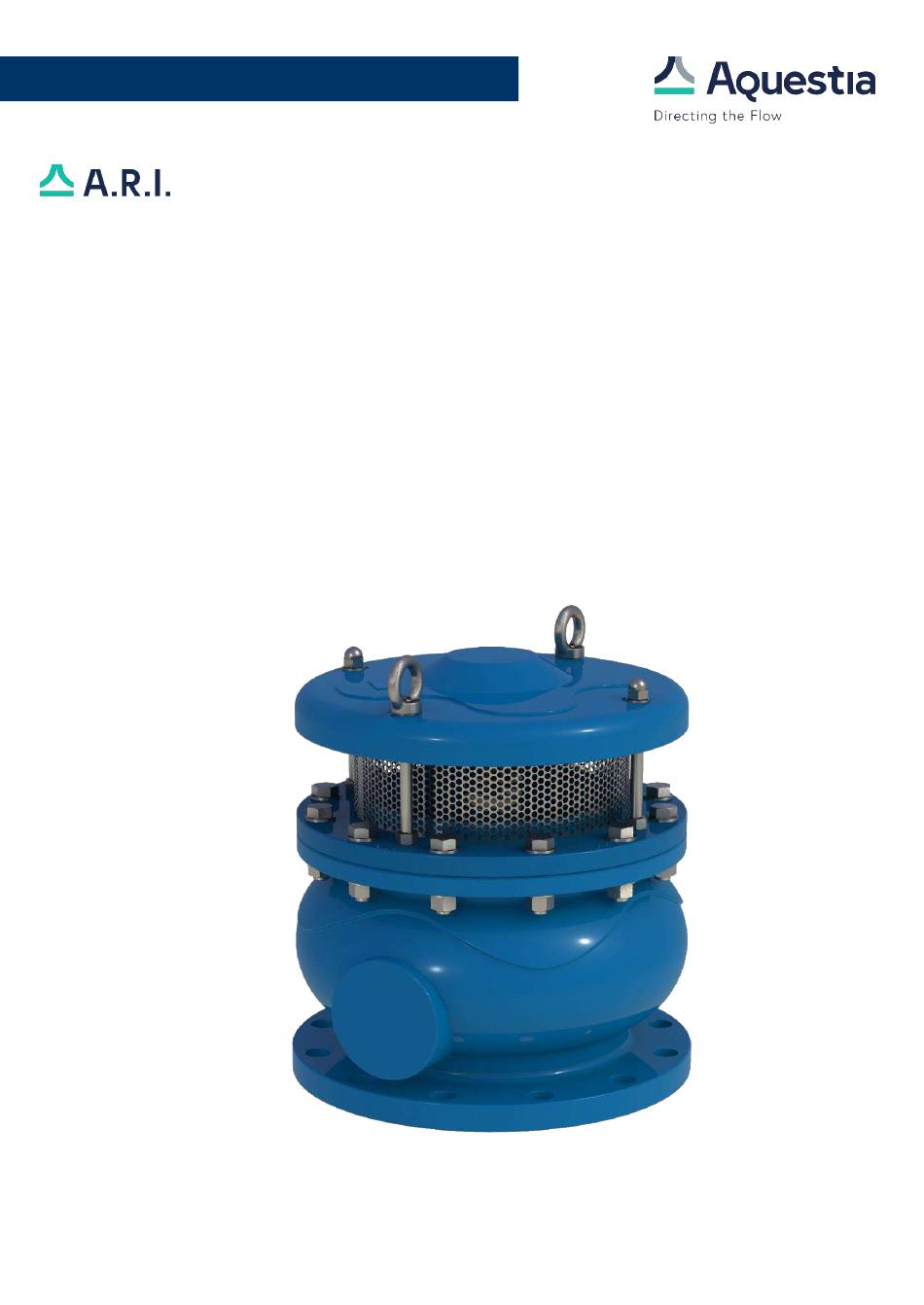

VB-060.IOM.ENG01
Installation, Operation & Maintenance
VB-060
SPRING-LOADED VACUUM BREAKER
The following is a step-by-step narrated description of the A.R.I. VB-060 Spring-Loaded Vacuum Breaker
installation, operation and maintenance processes.
The VB-060 Spring-Loaded Vacuum Breaker is a normally closed full bore vacuum breaker which is designed
to open fully to allow the intake of air into the pipeline or system when vacuum conditions occur, thus
protecting the pipeline.
Negative pressure (vacuum) conditions are caused by sudden shutoff of pumps, pipe ruptures or rapid
draining of the pipeline. The VB-060 can be installed both on potable water lines and on wastewater lines.
Advertisement
Table of Contents
Related Manuals for Aquestia A.R.I. VB-060
Summary of Contents for Aquestia A.R.I. VB-060
- Page 1 Installation, Operation & Maintenance VB-060 SPRING-LOADED VACUUM BREAKER The following is a step-by-step narrated description of the A.R.I. VB-060 Spring-Loaded Vacuum Breaker installation, operation and maintenance processes. The VB-060 Spring-Loaded Vacuum Breaker is a normally closed full bore vacuum breaker which is designed to open fully to allow the intake of air into the pipeline or system when vacuum conditions occur, thus protecting the pipeline.
-
Page 2: Table Of Contents
Except as provided herein and to the full extent permitted by law, Aquestia shall not be responsible and/or liable for direct, special, incidental or consequential damages or loss resulting from any breach of the above or under any other legal theory. -
Page 3: Safety Instructions
IOM VB-060 1. SAFETY INSTRUCTIONS General Aquestia products always operate as components in a larger system. It is essential for the system designers, installers, operators and maintenance personnel to comply with all the relevant safety standards. 2. Installation, operation or maintenance of the product should be done only by qualified workers, technicians... -
Page 4: Installation
IOM VB-060 IOM VB-060 Installation Aquestia 1. Install the product according to the detailed Installation Instructions provided with it by and according to the description given in this manual. 2. The user should install a manual Isolation Valve under the product's inlet port. - Page 5 IOM VB-060 IOM VB-060 Before returning to regular operation 1. Re-assemble any protection covers or protection mechanisms removed during service or maintenance operations. 2. Make sure that all the tools, ladders, lifting devices, etc. used during the maintenance procedures are taken away from the product area and stored.
-
Page 6: Installation Recommendations
IOM VB-060 IOM VB-060 2. INSTALLATION Important: Before performing any work on the air valve make sure that all workers on site are familiar with the safety instructions and the relevant local and general safety instructions and work regulations. 2.1. Installation Recommendations Single Vacuum Breaker on an Isolating Valve at 45°... - Page 7 IOM VB-060 IOM VB-060 2.2. Conventions and Measurements This paragraph presents and explains the terms and measurements used for the Installation process. Isolation Valve D = Diameter of pipeline d = diameter of riser H = Height of riser on the pipeline (Measured from crown of pipeline) •...
-
Page 8: Installation Instructions
IOM VB-060 IOM VB-060 2.3. Installation Instructions 1. Flush the system before installing the vacuum breaker to avoid any debris or sharp objects getting into it. 2. Carefully remove the vacuum breaker from the shipping package. Unload all vacuum breakers carefully to a sturdy level surface taking care not to drop them. -
Page 9: Operation
IOM VB-060 IOM VB-060 3. OPERATION The VB-060 valve is designed to prevent vacuum conditions from occurring in pipelines. After a power failure or rapid draining of the system, a vacuum condition often occurs in a pipeline. The pressure differential between the inside vacuum and the atmosphere will cause a downward force on the sealing disc. -
Page 10: Periodic Maintenance
IOM VB-060 IOM VB-060 5. PERIODIC MAINTENANCE Please note that the periodic maintenance of the vacuum breaker is an integral part of the proper pipeline maintenance regime; it should be maintained at least once a year in accordance with the quality and composition of the fluid in the system. -
Page 11: Maintenance - See Drawing On Section 5 Of This Document
IOM VB-060 5.2. Maintenance – See drawing on Section 5 of this document Disassembly WARNING: The pipeline must be drained and the valve relieved of pressure before commencing disassembly. 1. Completely unscrew and remove all the cover Bolts, Washers, and Nuts (11) - place them in a secure area. 2. -
Page 12: Assembly Bom Table And Drawing
IOM VB-060 5. ASSEMBLY BOM TABLE AND DRAWING Part Screen Cover Domed Nut & Washer Lifting Ring Screen Spring Lock Spring Guide Rod Threaded Rod Cover Bearing Bolt, Nut & Washer Cover Circlip Retainer Bolts Retainer Seal Disc O-ring Body...
