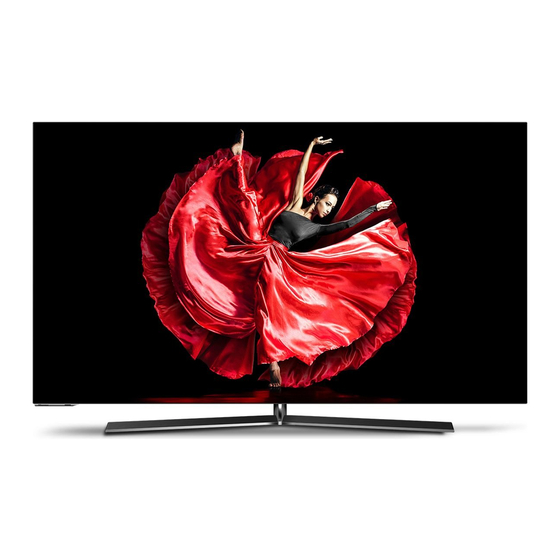

- Page 1 55PX 65PX QUICK SETUP GUIDE Before using the TV, please read this guide thoroughly and retain it for future reference. For more detailed instructions, please see the User Manual. English ES-A182404-1...
- Page 2 Declaration Declaration Any content and service accessed through this device, while only intended for individual non-commercial use, shall be the property of the applicable third party and subject to protection by regulations and laws on copyright, patent, trademark and other intellectual property rights. No part of such content and service may be modified, duplicated, published, uploaded, distributed, translated, marketed, or used to make and distribute products derived from it without the prior permission of the content owner or service provider.
- Page 3 Important Safety Precautions This symbol alerts user about the ATTENTION presence of a dangerous voltage not isolated inside the product which can RISK OF SHOCK ELECTRIC be sufficiently powerful to constitute a risk of electrocution. Do not open the back cover. This symbol alerts user about the In no case the user is allowed to operate presence of important operating...
- Page 4 Important Safety Precautions Warning Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Using stands recommended by the manufacturer of the television set. Only using furniture that can safely support the television set.
- Page 5 Important Safety Precautions Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. A note about safety and operating instructions Read and follow all safety and operating instructions, and retain them safely for future reference.
- Page 6 Important Safety Precautions 9. Power-Cord Protection Power- supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug, wall outlets, and the point where they exit from the TV. MAIN plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Page 7 Important Safety Precautions (d) If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
-
Page 8: Table Of Contents
Contents Figures and illustrations in this manual are provided for reference only and may differ from actual product appearance. Parts of the software function changes with the system upgrade. Contents Accessories List......................1 Installing the Stand or Wall Mount Bracket ..............2 TV Front..........................5 TV Rear ..........................6 Making Connections .......................7... -
Page 9: Installing The Stand Or Wall Mount Bracket
Installing the Stand or Wall Mount Bracket Installing the Stand CAUTION Be sure to disconnect the A/C power cord before removing a base stand or installing Wall-Mount brackets. The screen display is very fragile, and must be protected at all times when installing the base stand. - Page 10 Installing the Stand or Wall Mount Bracket 2. Secure the Base Stand to the TV with the 4 screws in accessory tightly. Base Stand Screws: M5×16 3. Install the Base Cover downward at the place shown in the illustration. Base Cover...
- Page 11 Installing the Stand or Wall Mount Bracket Installing the Wall Mount Bracket Wall mount hole pattern VESA (mm) 300 × 200 Wall mount screw size (mm) 16 -18 mm Wall mount bracket Screw Rear cover of the TV Spacer NOTES Follow instructions provided with the Wall mount bracket.
-
Page 12: Tv Front
TV Front TV Front TV Bottom Panel TV Back View Remote sensor Power indicator Item Description Receives remote signals from the remote control. Remote sensor Do not put anything near the sensor, as its function may be affected. Power indicator The light is red in standby mode. -
Page 13: Tv Rear
TV Rear TV Rear DIGITAL AUDIO OUT HDMI 4 (4K@30Hz) AC INPUT VIDEO AV IN NOTES Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure. The TV may not be compatible with all external devices. -
Page 14: Making Connections
Making Connections Connect an outdoor VHF/UHF antenna or cable. Outdoor Antenna TV JACK Cable ANT OUT (not included) Antenna Cable (75Ω) VHF/UHF Antenna COMMON INTERFACE Insert the CI+ module for watching scrambled services like pay-tv channels or some HD channels. TV JACK CAM CARD SMART CARD... - Page 15 Making Connections Video Effect: BETTER (HDMI) HDMI cable (not included) TV JACK Video Effect: GOOD (AV) Red(R) White(L) Video Camera/ Set-top Box/ Yellow(Video) Satellite Receiver (Cables are not included) TV JACK Connect an HDMI cable from an external digital audio system. ARC enables the TV to directly output the digital sound through an HDMI cable.
- Page 16 Making Connections DIGITAL AUDIO OUT Connect to an external digital audio system. Before connecting a digital audio system to the DIGITAL AUDIO OUT jack, you should decrease the volume of both the TV and the system to avoid that the volume suddenly becomes bigger.
- Page 17 Making Connections TV JACK IP Sharer (Router) External Modem (with DHCP server) (ADSL / VDSL / Cable TV) LAN Cable LAN Cable Modem Cable Wireless setup Connect your TV to your wireless network, you need a wireless router or modem. See the illustration below.
- Page 18 Making Connections What is Freeview Plus? Freeview Plus is a new television service delivered via broadband providing a state of the art Electronic Program Guide (EPG) and seamless access to catch-up TV across the free-to-air networks with the simple press of a button. How does it work? First ensure the TV is connected to internet and an antenna system.
-
Page 19: Remote Control
Remote Control Power Standby button: Select input sources Power on/ Standby Select sound mode Enter the Live TV screen Turn on/off the teletext Select picture mode function Select a channel or input numbers Display the current Display the Electronic program information Program Guide (DTV mode) Display the channel list on the screen... - Page 20 Remote Control Installing Batteries in the Remote Control 1. Slide the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the ( + ) and ( - ) ends of the batteries with the ( + ) and ( - ) ends indicated in the battery compartment.
-
Page 21: Turning The Tv On For The First Time
Turning the TV on for the First Time Turning the TV on for the First Time 1. Connect the mains cable to the mains socket after you have completed all the connections. 2. The first time you turn the TV on, it will go straight to the Installation Guide. 3. -
Page 22: Specifications
Specifications Features, appearance and specifications are subject to change without notice. If you encountered difficulty when setting up your TV, we suggest you refer to the troubleshooting tips in the User Manual. 55" 65" Item Without Stand 1226 × 707 × 59 1447 ×...
