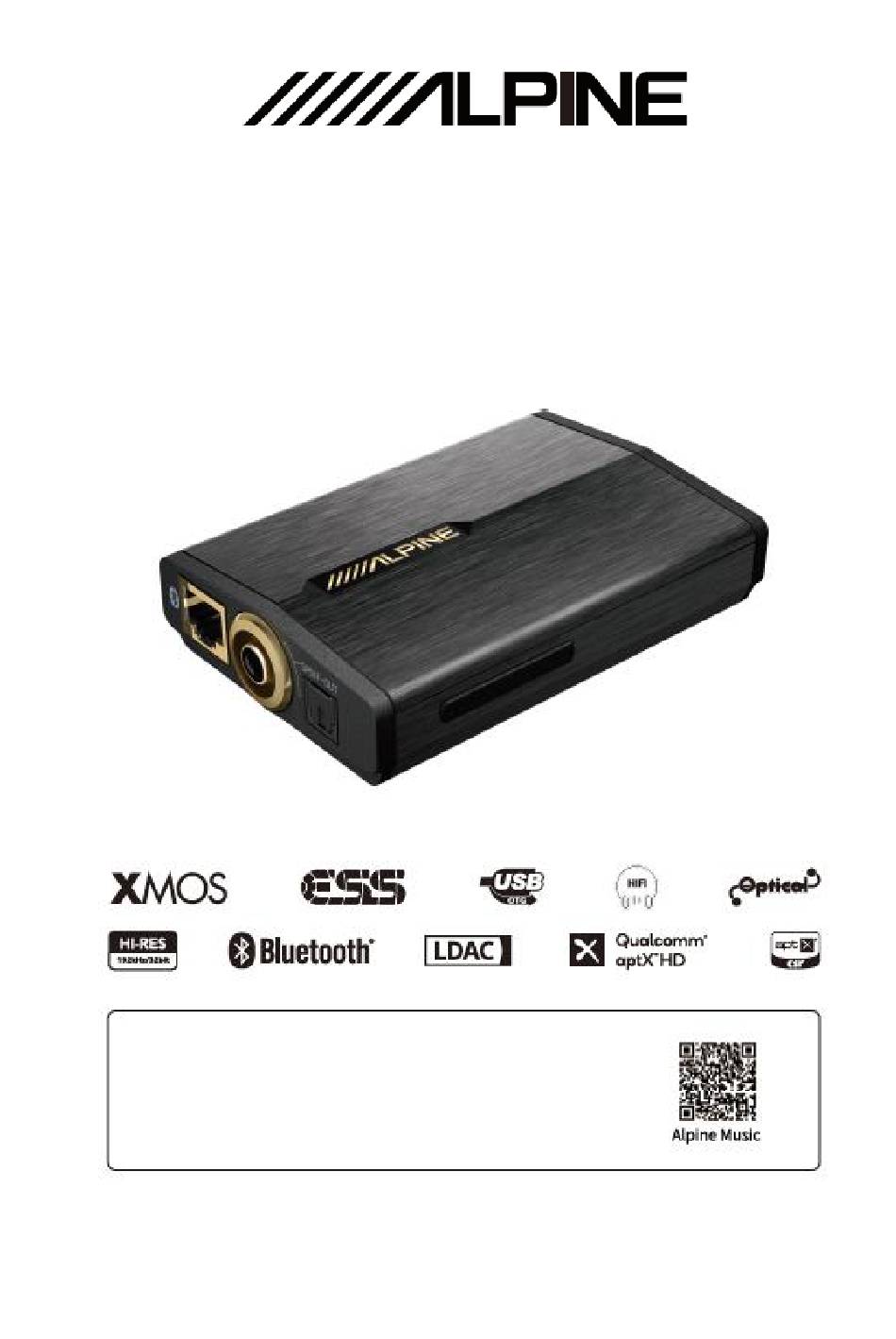

  • Page 1 UTS-A100 Hi-Res Streaming Media Player ⚫ For iPhone users, please search "Alpine Music" in APP Store to download and install it; for Android users, please scan the QR code on the right to download and install it directly.
  • Page 3: Table Of Contents

    DSP control system Repair tools Intelligent voice control system of Alpine Tools that may be required (depending on the Music APP vehicle) Import of Alpine Music APP to Android large screen system Accessory list Accessory list Product parameters Performance parameters...
  • Page 4: Operating Instructions

    Otherwise, it may result in personal injury or damaged to soak the cloth. Any other solvents may lead to product. Please return the product to the authorized dissolution. Alpine dealer or nearby Alpine service center to repair. Temperature The product is only suitable for the 12V negative-grounded vehicles.
  • Page 5: Common Problems

    Copyright notice The text mark and logo of Bluetooth® are the registered trademarks that Bluetooth SIG, Inc. Alpine Electronics has been authorized to use these text marks and logos. Other trademarks and names all belong to their holders.
  • Page 6: Tools That May Be Required (Depending On The Vehicle)

    Tools that may be required (depending on the vehicle) Panel removing tool Socket Electric drill Torx screwdriver Phillips screwdriver Sleeve wrench Wrench Wire cutter Wire crimper Wire stripper Spectrum analyzer Oscilloscope Accessory list Type-C power cord Bluetooth cable UTS-A100...
  • Page 7: Diagram Of Device Interfaces

    Diagram of device interfaces...
  • Page 8: Description Of Device Interfaces And Their Functions

    Description of device interfaces and their function Alpine on-vehicle DSP that supports interface connection can transmit Bluetooth interface HD audio signal, or Alpine on-vehicle DSP tuning software can be connected to transmit high-quality audio via Bluetooth cable. Coaxial output interface Coaxial signal output, up to PCM 192kHz/24bit supported.
  • Page 9: Button Operation

    Note: The UTS-A100 can operate and control playback via the line control function of the mobile. As the line control function in certain mobile phones can adjust the volume by default, it should be set to be used for track switching.
  • Page 10: App Function Operation

    APP function operation Master volume Exclusive mode Sound mixing mode Bluetooth volume USB AUDIO volume Master audio source Bluetooth Master audio source attenuation Drag and rotate the volume adjustment fader or click "+" and "-" to adjust the Master volume master volume.
  • Page 11: Function Operation Of Computer Software

    Function operation of computer software Options About Master volume Sound mixing mode Exclusive mode Master audio source selection Master audio source attenuation Bluetooth USB AUDIO volume Bluetooth volume Mute button Mute the master volume Sampling rate: The switching of system sampling rate of 96kHz/192kHz is supported. Please do not power off during the switching process.
  • Page 12: Usbaudio System Playback

    USB AUDIO system playback Optical/coaxial audio output Type-C 5V power supply Type-C OTG audio cable/OTG adapter (purchased separately) Plug and play, i.e., connect the music client in the mobile phone via Type-C OTG audio or OTG adapter for music playback. Track switching, volume adjustment, USB AUDIO playback/pause can be performed in the music client and up to 192kHz/32bit HD lossless audio output is supported.
  • Page 13: Btaudio System Playback

    (2) Enter the “Developer Options” and set to turn on “HD Audio”; (3) After the “HD Audio” is turned on, connect the UTS-A100 to play wireless Bluetooth audio source. For Bluetooth audio encoder, the LDAC audio sampling rate of up to 96kHz/24bit is supported.
  • Page 14: Standard 3.5Mm Headphone Playback

    Power supply via the power bank and portable charger is recommended. Built-in HD lossless Bluetooth. Search UTS-A100 XXXXXX to connect for BT AUDIO playback of HD lossless audio. Audio decoding format: LDAC/APTX- HD/APTX/AAC/SBC, up to 96kHz/24bit HD lossless audio output.
  • Page 15: Dsp Control System

    DSP device. Note: (1) Connect external Bluetooth interface of UTS-A100 and DSP device via Bluetooth cable, (2) And click to search UTS-A100 XXXXXX Bluetooth in DSP tuning APP device for connection and pairing; (3) After the pairing is successful, the APP device is connected to Bluetooth as control signal to perform tuning;...
  • Page 16: Intelligent Voice Control System Of Alpine Music App

    In using Alpine Music APP high-resolution audio source, UTS-A100 can perform voice control of the system via intelligent voice control of Alpine Music APP. Intelligent voice Open Alpine Music APP to enter the music interface. Click “Settings” in the control system of upper right corner to enter the “Driving”...
  • Page 17: Import Of Alpine Music App To Android Large Screen System

    Power supply via the car cigarette lighter is recommended. Import of Alpine Music APP to control Alpine Android large screen device. (1) Group Alpine Music APP to Android large screen; after successful grouping, Import of Alpine open the UTS-A100 device;...
  • Page 18: Product Parameters

    Product parameters Bluetooth audio decoding formats LDAC/APTX-HD/APTX/AAC/SBC Bluetooth sampling rate 96kHz/24bit USB decoding sampling rate 192kHz/32bit Optical/coaxial sampling rate 192kHz/24bit 20Hz ~ 40kHz Frequency response Signal to noise ratio ≥117dB <0.002% 3.5mm headphone output power 80mW Headphone-adaptive impedance 32Ω Power port Type-C (USB 5V power supply) Net weight 153g...
