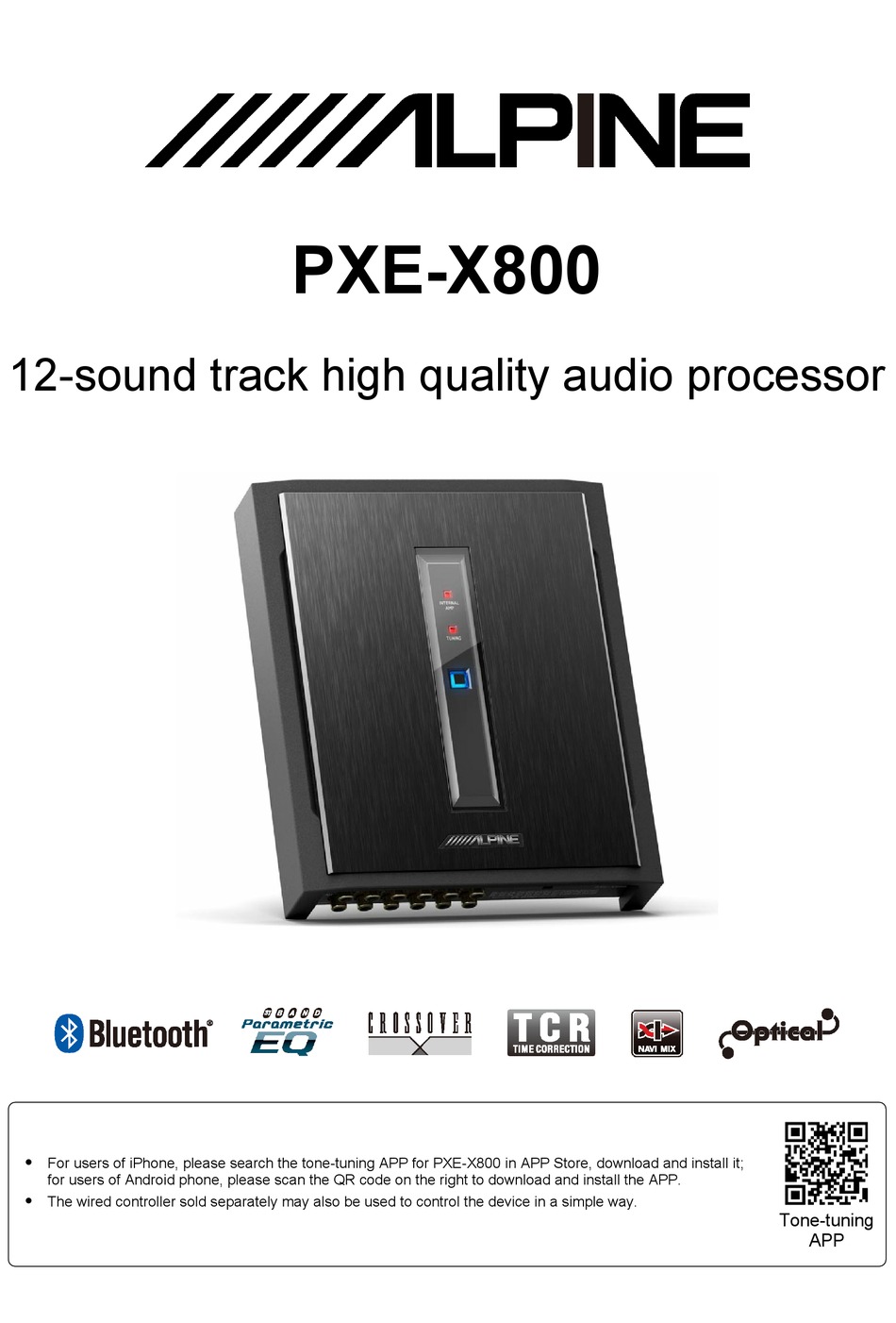

PXE-X800
12-sound track high quality audio processor
For users of iPhone, please search the tone-tuning APP for PXE-X800 in APP Store, download and install it;
for users of Android phone, please scan the QR code on the right to download and install the APP.
The wired controller sold separately may also be used to control the device in a simple way.
Tone-tuning
APP
Advertisement
Table of Contents
Related Manuals for Alpine PXE-X800
Summary of Contents for Alpine PXE-X800
- Page 1 12-sound track high quality audio processor For users of iPhone, please search the tone-tuning APP for PXE-X800 in APP Store, download and install it; for users of Android phone, please scan the QR code on the right to download and install the APP.
-
Page 2: Table Of Contents
Table of Contents Operating instructions output ............13 Types of precautions ........2 Package IV: 4 channel input / 6 channel output (high level to high level) ....15 Package V: 7 channel input / 10 channel Copyright notice output (high level to high level) ....17 Copyright notice ..........2 Description of APP Repair tool... -
Page 3: Operating Instructions
Copyright notice The text mark and logo of Bluetooth® are the registered trademarks held by Bluetooth SIG, Inc. Alpine Electronics has been authorized to use these text mark and logo. Other trademarks and names all belong to their holders. -
Page 4: Tools Potentially Needed (Depending On The Car)
Tools potentially needed (depending on the car) Panel removal tools Socket Electric drill Six-angle screwdriver Cross screwdriver Socket spanner Spanner Wire cutter Frequency spectrum Wire crimper Wire stripper Oscilloscope analyzer Accessory list 2×12P speaker and power cord 2×10P input line USB 2.0 cable Mounting bracket Machine screw... -
Page 5: Diagrams Of Device Interfaces
Diagrams of device interfaces External Bluetooth On-vehicle CD/DVD player On-vehicle CD/DVD player External power amplifier... -
Page 6: Description Of Device Interfaces And Their Functions
Wired controller interface System extension interface. Select high definition Bluetooth as the input signal or connect to the PXE-X800 tone-tuning application on a mobile phone. External Bluetooth input interface After successful connection, the Bluetooth indicator lamp is constantly on. -
Page 7: Description Of Indicator Lamps On The Device
Description of indicator lamps on the device When the power amplifier AMP output is turned off or the device is shut down, the indicator lamp is off; Power amplifier AMP switch indicator lamp When the power amplifier output is turned on, the indicator lamp is constantly on. -
Page 8: Description Of Bluetooth Indicator Lamp
Description of Bluetooth indicator lamp When the external Bluetooth is connected to PXE-X800 normally, when the device is turned on, the indicator lamp is constantly on; POWER indicator lamp When the device is shut down, the indicator lamp is off. -
Page 9: Arrangement Of Wire Pins
Arrangement of wire pins Input line White/Black 20AWG........high level input channel 8 - White 20AWG ..........high level input channel 8+ White/Black 20AWG........high level input channel 7 - White 20AWG ..........high level input channel 7+ White/Black 20AWG........high level input channel 6 - White 20AWG .......... -
Page 10: Package I: 4 Channel Input / 6 Channel
Package I: 4 channel input / 6 channel output (low level to low level) Before After... - Page 11 Package I: 4 channel input / 6 channel output (low level to low level)
-
Page 12: Package Ii: 4 Channel Input / 6 Channel Output (High Level To Low Level)
Package II: 4 channel input / 6 channel output (high level to low level) Before After... - Page 13 Package II: 4 channel input / 6 channel output (high level to low level) OEM Head Unit Main Harness H1+ connecting front left full-frequency + H1- connecting front left full-frequency - H2+ connecting front right full-frequency + H2- connecting front right full-frequency - H3+ connecting rear left full-frequency + H3- connecting rear left full-frequency - H4+ connecting rear right full-frequency +...
-
Page 14: Package Iii: Digital Input / 6 Channel
Package III: digital input / 6 channel output Before After... - Page 15 Package III: digital input / 6 channel output Aftermarket Head Unit Optical Cable Optical Cable (Not Included) 4-Channel Amp Sub Amp...
-
Page 16: Output
Package IV: 4 channel input / 6 channel output (high level to high level) Before After... - Page 17 Package IV: 4 channel input / 6 channel output (high level to high level) OEM Head Unit Main Harness H1+ connecting front left full-frequency + H1- connecting front left full-frequency - H2+ connecting front right full-frequency + H2- connecting front right full-frequency - H3+ connecting rear left full-frequency + H3- connecting rear left full-frequency - H4+ connecting rear right full-frequency +...
-
Page 18: Package V: 7 Channel Input / 10 Channel Output (High Level To High Level)
Package V: 7 channel input / 10 channel output (high level to high level) Before After... - Page 19 Package V: 7 channel input / 10 channel output (high level to high level) OEM Head Unit Main Harness H1+ connecting front left high-frequency + H1- connecting front left high-frequency - H2+ connecting front right high-frequency + H2- connecting front right high-frequency - H3+ connecting front left medium-frequency + H3- connecting front left medium-frequency - H4+ connecting front right medium-frequency +...
-
Page 20: Homepage
Description of mobile phone APP - Homepage Mute button Master volume set to mute. Master volume Drag the fader up and down to adjust the volume. Master sound Select the master sound source (digital, high level, Bluetooth and low level). source Connection When the Bluetooth icon is red, the Bluetooth of the mobile phone is not connected;... -
Page 21: Description Of Mobile Phone App - Delay
Description of mobile phone APP - Delay Select the corresponding speaker, drag the fader left and right in the pop-up Speaker window to adjust the delay or click “+” and “-” to adjust the delay. Delay group Each channel has 6 delay groups available to choose from. Delay unit The delay unit may be chosen from millisecond, centimeter and inch. -
Page 22: Description Of Mobile Phone App - Channel
Description of mobile phone APP - Channel There are joint debugging modes of “Copy channel EQ / volume from left to right” Joint debugging or “Copy channel EQ / volume from right to left” available. Lock The current channel type can be locked. Select frequency division slope (-6dB/Oct, -12dB/Oct, -18dB/Oct, -24dB/Oct, Slope -30dB/Oct, -36dB/Oct, -42dB/Oct or -48dB/Oct). -
Page 23: Description Of Mobile Phone App - Eq
Description of mobile phone APP - EQ Reset equilibrium Reset EQ setting. Restore equilibrium, Switch adjusted EQ data to pass-through state and click on it again to restore to pass-through EQ data before pass-through. equilibrium Slide left and right to select the output channel for EQ adjustment. Output channel There is a total of 12 channels to choose from. -
Page 24: Description Of Mobile Phone App - Combined Frequency
Description of mobile phone APP - Combined Frequency Slide left and right to select the output channel for frequency combination. There is Output channel a total of 12 channels to choose from. Active or passive Keep the default setting as “Passive.” Warning: if changed, you will lose the sound input mixer settings of this channel. -
Page 25: Computer Software Interface
Computer software interface... -
Page 26: Description Of Computer Software
Description of computer software Temperature display Detect the temperature on the surface of the device. File Load or save scene files in the computer, load or save scene files of the whole device. Firmware update, noise threshold, built-in power amplifier, restore factory settings, Options shutdown delay, switch between Chinese and English, version number display. -
Page 27: Specification Parameters
Specification parameters Dynamic range ≥100dB SNR (RCA) ≥110dB Background noise High level: 93.3uVrms; RCA：8.8uVrms Channel resolution ≥80dB ≤0.05% Input voltage High level: 30Vpp; RCA：6.5Vpp Output voltage High level CH1~CH4: 40 Vpp, high level CH5~CH8: 28 Vpp; RCA: 8 Vpp Rated power CH1~CH4：50W，CH5~CH8：25W(4Ω, 14.4V, 1kHz, 10%THD) CH 1 ~ CH4：100W，CH5~ CH8：50W(4Ω, 1 4.4V, 1kHz, 10%THD) Maximum power... -
Page 28: Functional Parameters
Functional parameters 8 channels of high level, 4 channels of RCA audio, high resolution blue Input signals tooth, fiber/coaxial Output signals 8 channels of high level, 12 channels of RCA audio Output channel signal gain Range: mute, - 60dB~ + 6dB Type: parametric EQ, graphic EQ Frequency: 20Hz~20kHz, resolution: 1Hz Output signal equalizer... -
Page 29: Information Hazardous Substances
南京市栖霞区经五路兴都晴轩中 1 幢 108 室 210003 025-86630368 南京维修站 138-5819-6041 杭州市富阳区文教路 80-6 号 311400 杭州维修站 189-5751-6008 厦门市后埭溪路 248 号六、七、八号店面 361004 0592-5170118 厦门维修站 乌鲁木齐市青年路 308 号 830002 0991-8871299 乌鲁木齐维修站 南昌市新洲路 98 号丰源嘉会朝阳居一楼店面 330029 0791-86566758 南昌维修站 成都市成华区驷马桥东立国际广场 B1 区 1333 号 610051 028-84397796 成都维修站 获取最新最详细的维修站信息，请登录 www.alpine.com.cn 查询。...
