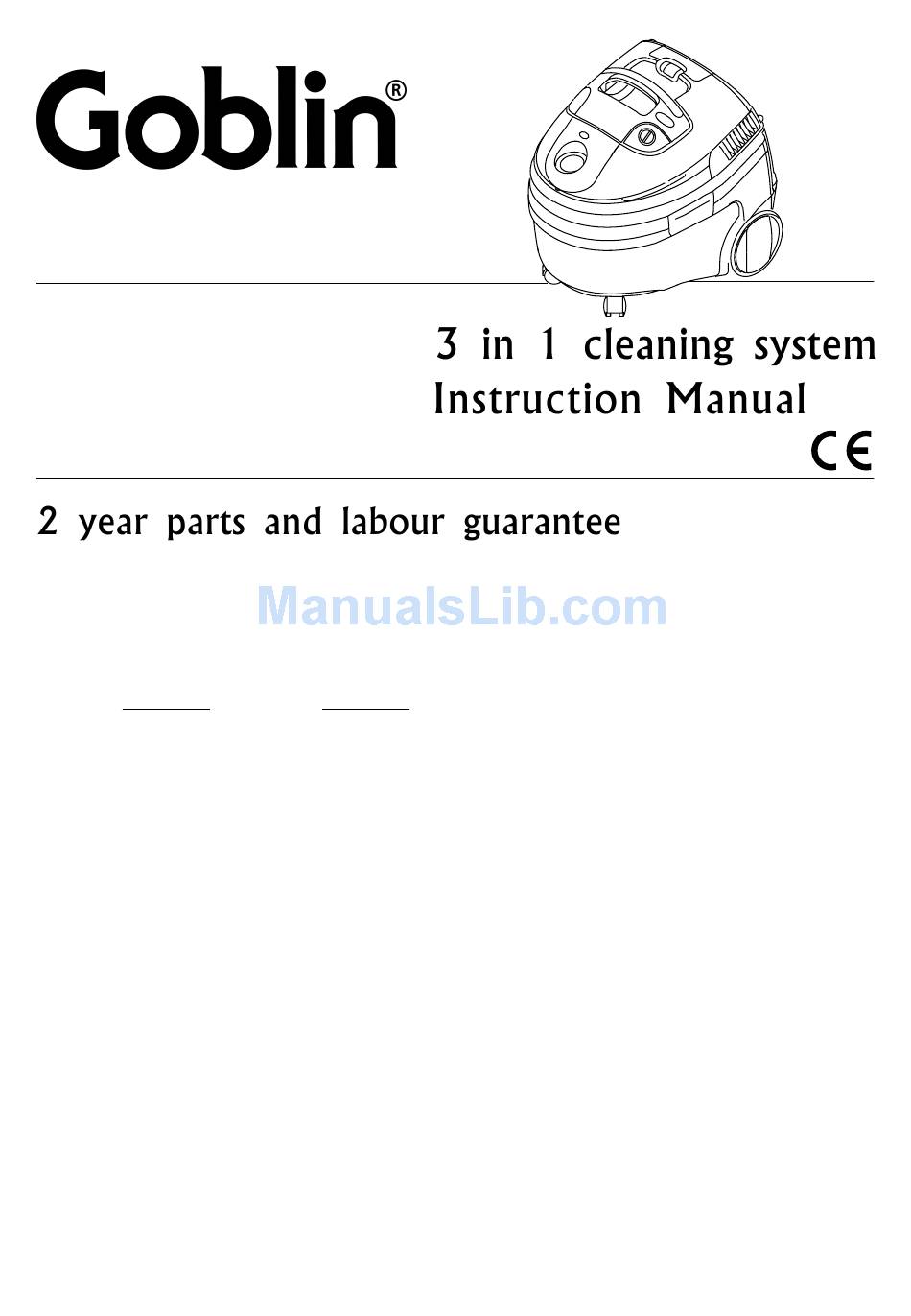

Goblin IB70220 Instruction Manual

3 in 1 cleaning system

Advertisement

Quick Links

This guarantee is valid in the UK and Ireland
only. It is in your interest to retain the retailers receipt
as proof of purchase. Please quote the following
information if the product develops a fault. These
numbers can be found on the motor unit of the product.
Model No.
(Please enter numbers for future reference)
All Goblin products are individually tested before
leaving the factory. In the unlikely event of any
appliance proving to be faulty within 28 days of
purchase it should be returned to the place of purchase
for it to be replaced.
If the fault develops after 28 days and within 24
months of original purchase, you should take the
appliance to your nearest service agent. A list
containing details of your nearest service agent is
included with your appliance but please contact the
helpline quoting Model number and Serial number should
you require further assistance, repair or replacement of
the product is subject to the following exclusions. (see
Exclusions).
If you suspect a fault, follow the simple checks
detailed below before returning the appliance or
calling the helpline.
1
Check the dustbags and filters for blockages.
2
Check the hose and tubes for blockages.
3
Check the plug is firmly in the socket and the
supply is switched on.
4
Make sure the socket is working by trying
another appliance.
The After Sales Division, Goblin, Mexborough, South Yorkshire, England, S64 8AJ
HELPLINE (OFFICE HOURS ): UK (LOCAL RATE) 0345 010340, REPUBLIC OF IRELAND
DIMPCO LTD 01 842 4833
Serial No.
To qualify for the 2 year parts and labour guarantee
the appliance must have been used according to the
manufacturers instructions.
EXCLUSIONS
Goblin shall not be liable to replace
or repair the goods under the terms of the
Guarantee where:
1
The fault has been caused or is attributable to
accidental use, misuse, negligent use or used
contrary to the manufacturers recommendations
or where the fault has been caused by power
surges or damage caused in transit.
2
The appliance has been used on a voltage
supply other than that stamped on the
products.
3
Repairs have been attempted by persons other
than our service staff (or authorised dealer).
4
Where the appliance has been used for hire
purposes or non-domestic use.
5
The guarantee excludes consumables such as
bags, filters and air freshners.
This guarantee does not confer any rights other
than those expressly set out above and does not cover
any claims for consequential loss or damage. This
guarantee is offered as an additional benefit and does
not affect your statutory rights as a consumer.
If for any reason this item is replaced during the 2
year guarantee period, the guarantee on the new item
will be calculated from original purchase date. Therefore
it is vital to retain your original till receipt or invoice to
indicate the date of initial purchase.

Advertisement

loading

Summary of Contents for Goblin IB70220

  • Page 1 This guarantee is valid in the UK and Ireland To qualify for the 2 year parts and labour guarantee only. It is in your interest to retain the retailers receipt the appliance must have been used according to the as proof of purchase. Please quote the following manufacturers instructions.
  • Page 2 This product has been designed with your 15 Do not use or keep this product outside safety in mind. However, for safe operation, it when it is raining. is important that you observe the following 16 Never modify the cleaner in any way. points: 17 Repairs to electrical appliances are only to 1 Read all the instructions.
  • Page 3 Check that the supply voltage details given This appliance is double insulated and must not on the rating plate are in accordance with your be connected to the terminal of the plug which electricity supply. may be marked with the letter ‘E’ or by the earth wire symbol or coloured green or green IMPORTANT :The wires in the mains lead and yellow.
  • Page 4 Motor unit Tool storage area Motor protection panel filter drawer Air bleed Motor protection panel filter Hose handle Cord wrap hook Shampoo trigger with lock on button Filter condition indicator Extension tubes Carrying handle Accessory adaptor Exhaust filter frame Hose swivel connector Exhaust filter Machine shampoo connector tube Automatic cord rewind...
  • Page 5 Your vacuum cleaner may feature a removable inner tank and large capacity paper bag and can be operated in a variety of ways detailed in the table below. Dry usage - vacuuming fine or coarse dry dirt. Wet usage - picking up liquids or wet dirt, ie leaves. Usage Pick up option Application...
  • Page 6 Tools The tools can be attached either to the Hose tube or directly to the handle providing the accessory adaptor is fitted. 1 Push and rotate the elbow-shaped connector on the end of the hose Floor nozzle into the hose inlet until it clicks into General purpose position...
  • Page 7 Motor safety shut off If your cleaner features the automatic When the waste tank is full of liquid cable rewind pull out the cable fully. the float will automatically switch off If your cleaner features cable wrap the motor. When this occurs, always: ensure the cable is fully unwrapped.
  • Page 8 6 Slide the shampoo tank into the rear section of the inner tank fold the handle down to the horizontal position. 1 Release the latches and lift off the motor unit 2 Ensure the inner tank is fitted 3 Lift the handle on the inner tank to the upright position.
  • Page 9 Your cleaner features a pumped shampoo delivery system which is switched on/off by pressing the shampoo pump button Shampoo delivery is operated by squeezing the trigger on the handle. For continuous shampoo spray, squeeze the trigger and slide the lock on button towards the trigger To release the lock on button.
  • Page 10 Option 2 Inner tank fitted 1 Release the latches and lift off the 1 Switch off the vacuum cleaner. motor unit and carefully place to 2 Unplug from the mains. one side. 3 Use a hand or your foot to operate the 2 Carefully lift out the inner tank by its cable rewind pedal to rewind the rotating handle and empty.
  • Page 11 Your product has been designed to pick up both wet and dry dirt without having to change or remove the filters. The table below explains the purpose of each filter. Filter Purpose Stops large dirt particles and Foam pre-filter prolongs the life of the panel filter. (washable) Stops smaller dust particles and Motor protection...
  • Page 12 If the filter condition indicator shows red either the : • bag needs to be changed • foam pre-filter needs to be cleaned • motor protection panel filter needs to be cleaned • Also check hose for blockages If after changing the bag or cleaning the filters the condition indicator still shows red then the filters should be replaced.
  • Page 13 Unplug from the mains before cleaning. Only use original Goblin bags and filters. Replacement packs can be The vacuum cleaner, and all the acces- purchased from specialist retailers. If you sories can be cleaned using a damp have difficulty, call our Helpline number cloth or a non abrasive domestic cleaner on the front of this booklet.
  • Page 14 If you experience any difficulty in obtaining service or spare parts, please telephone our Customer Helpline (during office hours): UK (local rate call) Republic of Ireland 0345 010340 01 842 4833 The After Sales Division Dimpco Ltd The After Sales Division Goblin Mexborough Cloghran County Dublin...
  • Page 15 Goblin products are intended for non commercial use only. Goblin has a policy of continuous improvement in product quality and design. The Company, therefore, reserves the right to change the specification of its models at any time. Goblin, Mexborough, 8738270 Rev OI South Yorkshire, England, S64 8AJ...
